Arctic, AMP, FreeFlex, BFIT & Citadel with Concert Display
3.7

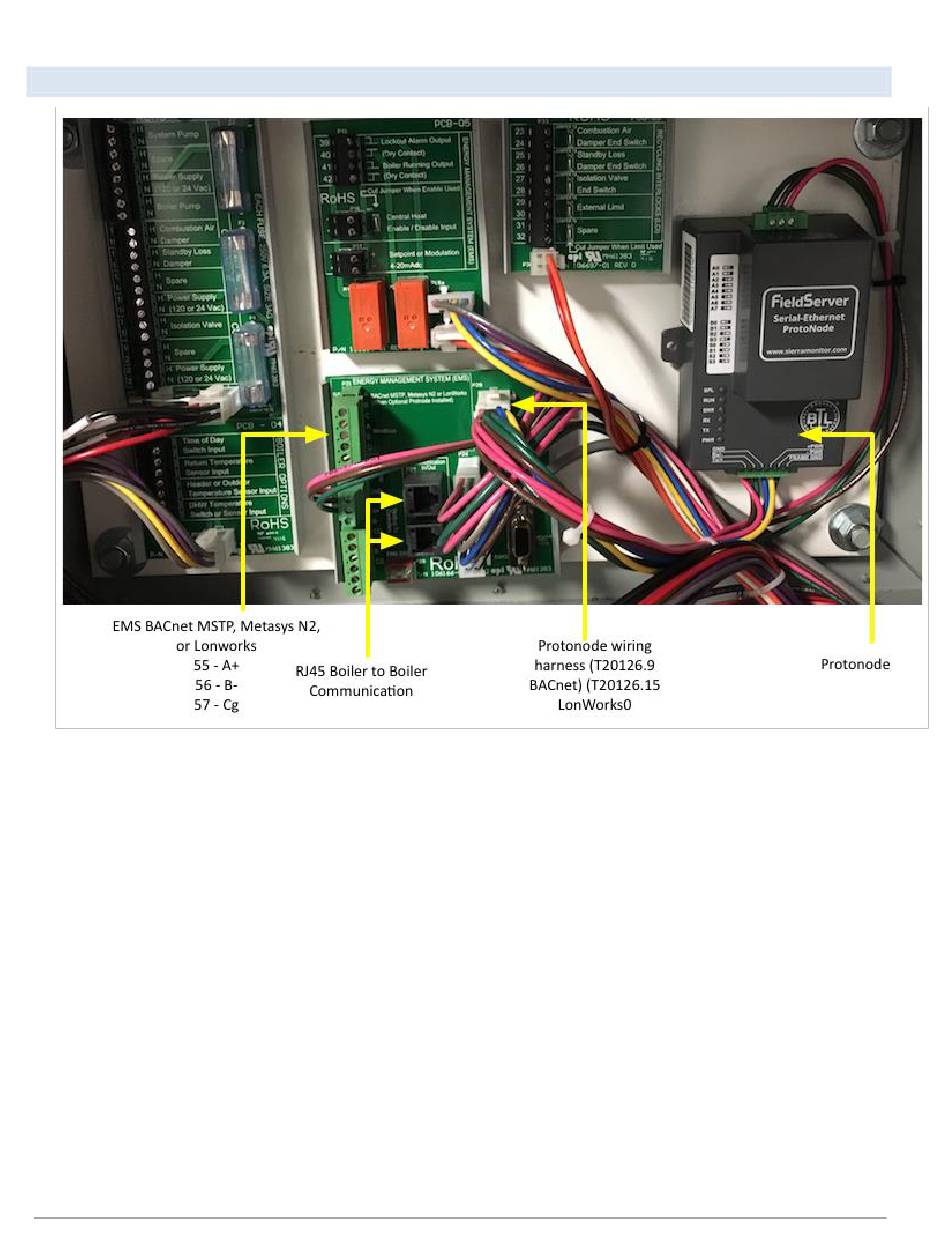

Figure 3-13: Arctic, AMP, FreeFlex, BFIT & Citadel with Concert Modbus RS485 Wiring
NOTICE:
1. Arctic/FreeFlex,
(Sequencer) and EMS communication at the same time.
2. The Gateway ProtoNode kit (P/N: 106433-02) for these units is equipped with a wire harness which connects
the Sola, Communications Board (PCB-06), and ProtoNode.
Page 20 of 97
AMP/BFIT
1000-4000, & Citadel 1250-1500 with Concert Displays can do both Lead Lag
PN: 106417-05
