Troubleshooting; Lost Or Incorrect Ip Address - FieldServer LonWorks ProtoNode Instruction Manual

TROUBLESHOOTING

8
8.1

Lost or Incorrect IP Address

•
Ensure that FieldServer Toolbox is loaded onto the local PC. Otherwise, download the
FieldServer-Toolbox.zip via the MSA Safety website.
•
Extract the executable file and complete the installation.
• Connect a standard Cat-5 Ethernet cable between the user's PC and ProtoNode.
•
Double click on the FS Toolbox Utility and click Discover Now on the splash page.
•
Check for the IP Address of the desired gateway.
Page 41 of 97

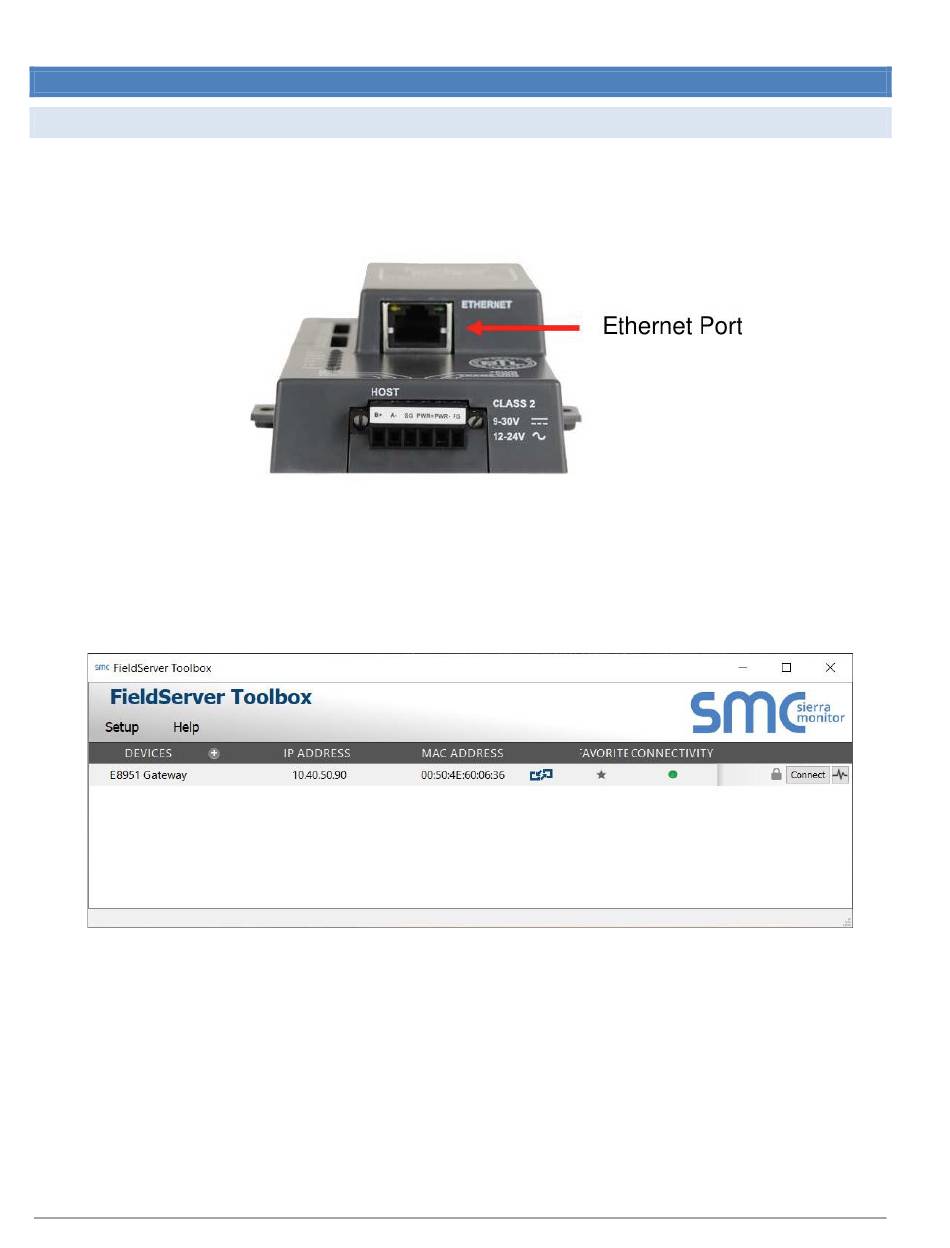

Figure 8-1: ProtoNode Ethernet Port
Figure 8-2: Field Server Toolbox
PN: 106417-05
