INSTALLATION & OPERATING
ProtoNode RER and ProtoNode LER
(FPC N34)
For Interfacing Raypak heating products equipped with the VERSA IC
Systems: BACnet MS/TP, BACnet IP, Modbus TCP, Metasys N2, and LonWorks
APPROVED
INSTRUCTIONS
B-85
UNCONTROLLED DOCUMENT IF PRINTED
(FPC N35)
B-86
®
control platform to Building Automation
Effective: 12-31-21
Replaces: 09-01-15
P/N 241515 Rev. 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FieldServer ProtoNode RER
Summary of Contents for FieldServer ProtoNode RER

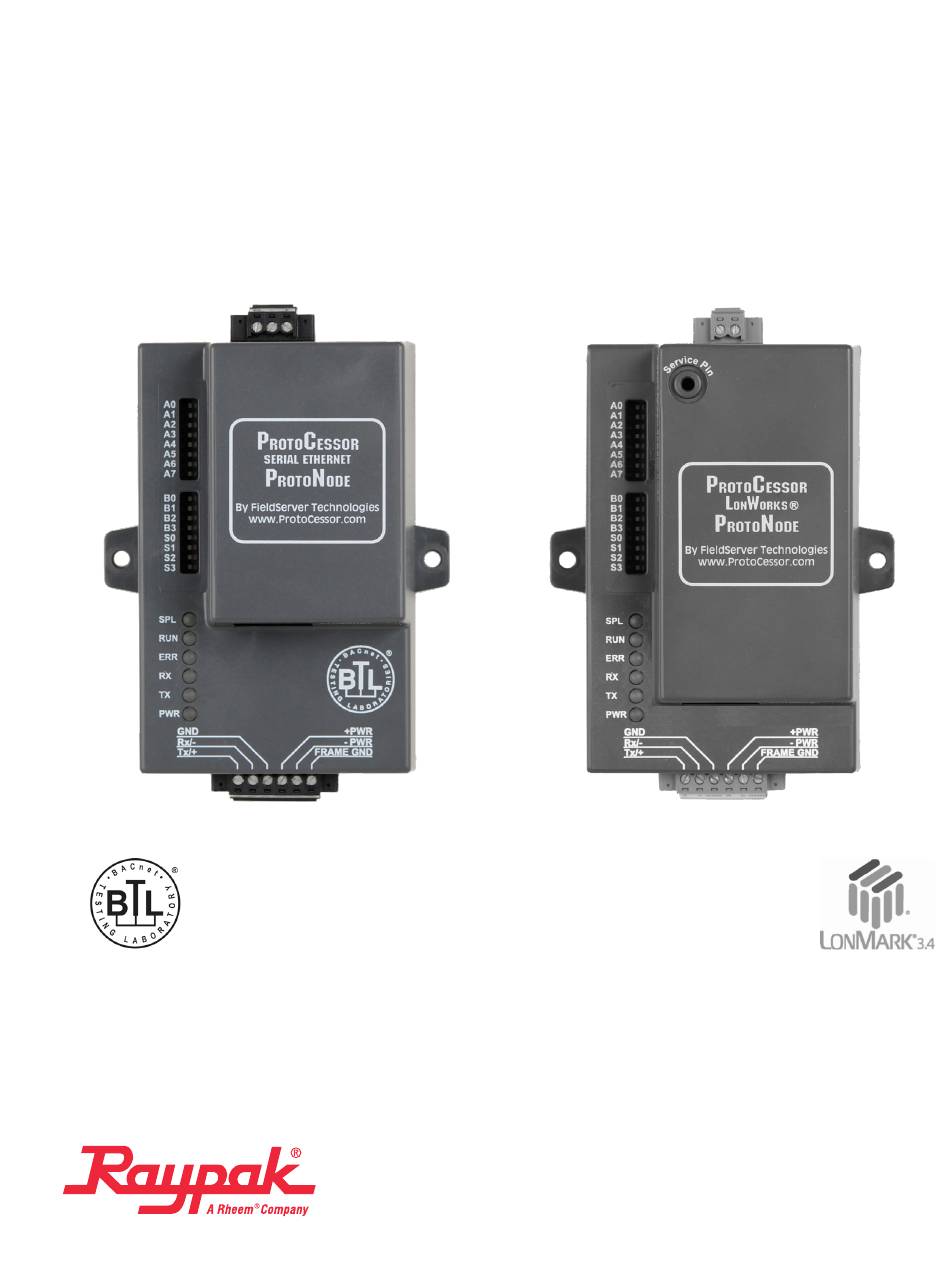

- Page 1 INSTALLATION & OPERATING APPROVED INSTRUCTIONS ProtoNode RER and ProtoNode LER (FPC N34) (FPC N35) B-85 B-86 ® For Interfacing Raypak heating products equipped with the VERSA IC control platform to Building Automation Systems: BACnet MS/TP, BACnet IP, Modbus TCP, Metasys N2, and LonWorks...
- Page 2 APPROVED Revision 3 reflects the following changes: Reformatted to reflect latest I&O template. Paragraph added to bottom of page 4. Figures 1, 6, 7 & 9 revised. Text revised following Figure 8. Section 4 verbiage and figures revised. Figures 14, 15, 16, 19 & 24 revised. " Instructions to Upload XIF" section revised. Appendix A "Troubleshooting:"...
-
Page 3: Table Of Contents
ProtoNode and Raypak VERSA ProtoNode’s Phoenix 6 pin connector.... 9 IC ..............20 Wiring the ProtoNode RER to RS-485 Field Protocol 8. APPENDIX B. PICS STATEMENT ...... 21 (BACnet MS/TP or Metasys N2) ....11 Raypak VERSA IC Modbus RTU Mappings to... -
Page 4: Introduction
BTL Mark – BACnet Testing Laboratory The BTL Mark on the ProtoNode RER is a symbol that indicates that a product has passed a series of rigorous tests conducted by an independent laboratory which verifies that the product correctly implements the BACnet features claimed in the listing. -
Page 5: Interfacing The Protonode To Raypak Products

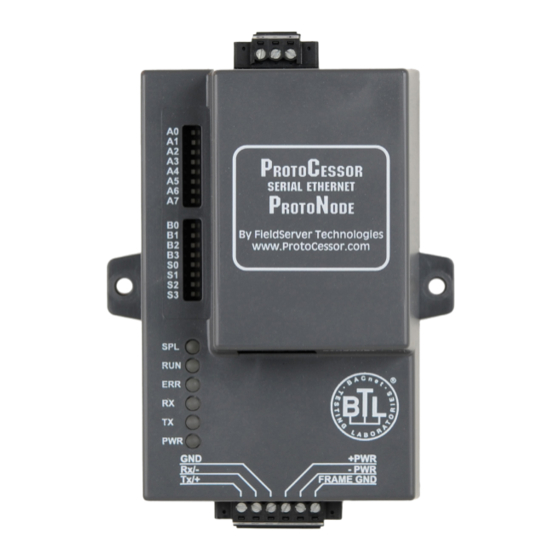

APPROVED 2. INTERFACING THE PROTONODE TO RAYPAK PRODUCTS ProtoNode RER (FPC-N34) and LER (FPC-N35) showing connection ports RER Configuration: B-85 BACnet, Modbus, Metasys To Controller LER Configuration: B-86 LonWorks To Controller Figure 1. ProtoNode BACnet RER (BACnet) and ProtoNode LER (LonWorks) -
Page 6: Bacnet/Lonworks Setup For Protocessor Protonode Rer/Ler
LonWorks. Switches on the FPC-N34-0636. (See Figure 2) This number should be recorded, as it may be required for 4. Set BACnet device address for the ProtoNode RER technical support. (FPC-N34). (See "Setting the MAC Address for BACnet MS/TP for the ProtoNode RER (FPC-N34)"... -
Page 7: Select The Desired Field Protocol - For Protonode Rer (Fpc-N34)
Installation Steps for the Customer The following chart describes S0 - S3 DIP switch configuration settings for the Raypak products to support BACnet MS/TP or BACnet/IP on a ProtoNode RER (Part # FPC-N34-0636). • When the S bank of switches are all off (default setting) BACnet IP is enabled. -
Page 8: Setting The Mac Address For Bacnet Ms/Tp For The Protonode Rer (Fpc-N34)
The rate on the ProtoNode for Metasys is set for 9600. DIP Switches B0 – B3 are disabled for Metasys ProtoNode. N2 on ProtoNode RER (FPC-N34). • Addresses from 128 to 255 are Slave Addresses and cannot be discovered by BMS Front Ends that support auto discovery of BACnet MS/TP devices. -
Page 9: Wiring Connections To Protonode Rer (Fpc-N34 Bacnet) And Protonode Ler (Fpc-N35 Lonworks)
APPROVED Wiring Connections to ProtoNode RER (FPC-N34 BACnet) and ProtoNode LER (FPC-N35 LonWorks) Raypak Pin # ProtoNode Pin Assignment MODBUS A (+) Pin 1 RS-485 + MODBUS B (-) Pin 2 RS-485 - MODBUS GND Pin 3 RS-485 GND Power In (+) - Page 10 APPROVED NOTE: Multiple Master configuration requires each Master to have different ID’s. RS-485 Cable Raypak VERSA Master Unit 1 Tx/+ ( - ) Rx/- ( + ) Raypak VERSA Master Unit 2 Tx/+ Rx/- Figure 7. Multiple VERSA IC Masters UNCONTROLLED DOCUMENT IF PRINTED...
-
Page 11: Wiring The Protonode Rer To Rs-485 Field Protocol (Bacnet Ms/Tp Or Metasys N2)
Wiring the ProtoNode RER to RS-485 Field Protocol (BACnet MS/TP or Metasys N2) • Connect BMS BACnet MS/TP or Metasys N2 RS485 port to the 3-pin RS485 connector on ProtoNode RER as shown below. BMS RS-485 Wiring ProtoNode Pin #... -
Page 12: Power-Up The Protonode Rer (Fpc-N34 Bacnet) Or Protonode Ler (Fpc-N35 Lonworks)
4. CONNECT TO THE PROTONODE’S WEB CONFIGURATOR TO SETUP THE RAYPAK PRODUCTS (PROFILES) CONNECTED TO THE PROTONODE RER OR LER Connect the PC to the ProtoNode via the Ethernet port For BACnet IP only. For all others, use RS485 connection. -
Page 13: Configure Profiles In The Protonode's Web Configurator
APPROVED Configure Profiles in the ProtoNode’s Web Configurator • Open PC web browser; enter the default IP address of the ProtoNode 192.168.1.24. • When the S bank of DIP switches are set for BACnet you will see all the Raypak Profiles supporting BACnet listed in the Configurator. - Page 14 APPROVED Figure 15. Web Configurator showing a profile selected Figure 16. Web Configurator showing a completed profile added • Continue this process until all the Raypak VERSA IC Master units have been added. UNCONTROLLED DOCUMENT IF PRINTED...
-
Page 15: Changing Bn_Node_Offset Via The Protonode's Web Configurator
APPROVED Changing BN_Node_Offset via the ProtoNode’s Web Configurator • The BACnet Device Instance is equal to the Modbus Node ID plus the BN_Node_Offset. • To change the BN_Node_offset, enter the new values for the offset in web configurator. • And click to update new values. -
Page 16: Commissioning The Protonode Ler On Alonworks Network
APPROVED 5. COMMISSIONING THE • Select and enter a static IP Address on the same subnet. For example. PROTONODE LER ON A LONWORKS NETWORK Commissioning may only be performed by the LonWorks administrator. Commissioning the ProtoNode • Click the OK button to close the Internet Protocol LER on a LonWorks network window and the Close button to close the Ethernet Properties window. -
Page 17: Chipkin Automation's Cas Bacnet Explorer For Validating The Protonode In The Field
APPROVED 6. CHIPKIN AUTOMATION’S CAS BACNET EXPLORER FOR VALIDATING THE PROTONODE IN THE FIELD Chipkin Automation has extended to Raypak and their customers a free complementary 2 week fully functional copy of CAS BACnet Explorer that can be used to validate BACnet MS/TP and/or BACnet/IP communications of the ProtoNode in the field without having to have the BMS Integrator on site. -
Page 18: Cas Bacnet Setup
3. In CAS Explorer, do the following: the following methods: a. Click on settings. o Open the FieldServer FS-GUI page and click on b. Check the BACnet IP box and uncheck the Diagnostics in the Navigation panel. BACnet MSTP and BACnet Ethernet boxes. - Page 19 Wireshark. Taking a Capture with Older Firmware If the FieldServer firmware is from before November 2017, the Diagnostic Capture can be done by downloading the NOTE: If desired, the default capture period can be FieldServer Toolbox software but network connections changed.
-
Page 20: Setting The Network Number For Bacnet Ip
5 seconds. A steady red light will indicate there is a system error on the ProtoNode. If this occurs, immediately report the related “system error” shown in the error screen of the GUI interface to FieldServer Technologies for evaluation. -
Page 21: Appendix B. Pics Statement
APPENDIX B. PICS STATEMENT APPROVED AI = Analog Input BV = Binary Value Raypak VERSA IC Modbus RTU AO = Analog Output DI = Digital Input Mappings to BACnet MS/TP, BACnet/ AV = Analog Value DO = Digital Output IP, Metasys N2 and LonWorks BI = Binary Input SNVT = Standard Network Variable Type... - Page 22 APPROVED Point Name BACnet Data Type BACnet Object Id N2 Data Type N2 Point Address Lon Name Lon SNVT Type Boiler2 Error History 2 nvoFl1ErHt2_XXX SNVT_count_f Boiler2 Error History 3 nvoFl1ErHt3_XXX SNVT_count_f Boiler2 Error History 4 nvoFl1ErHt4_XXX SNVT_count_f Boiler2 Error History 5 nvoFl1ErHt5_XXX SNVT_count_f Boiler2 Error History 6...
- Page 23 APPROVED Point Name BACnet Data Type BACnet Object Id N2 Data Type N2 Point Address Lon Name Lon SNVT Type Boiler4 Error History 4 nvoFl3ErHt4_XXX SNVT_count_f Boiler4 Error History 5 nvoFl3ErHt5_XXX SNVT_count_f Boiler4 Error History 6 nvoFl3ErHt6_XXX SNVT_count_f Boiler4 Error History 7 nvoFl3ErHt7_XXX SNVT_count_f Boiler4 Error History 8...
-
Page 24: Address Dip Switch Settings
APPROVED Address DIP Switch Settings Address Address UNCONTROLLED DOCUMENT IF PRINTED... - Page 25 APPROVED Address Address UNCONTROLLED DOCUMENT IF PRINTED...
-
Page 26: Appendix C. Reference
APPROVED 9. APPENDIX C. REFERENCE Specifications Specification ProtoNode RER ProtoNode LER One 6-pin Phoenix connector, One 6-pin Phoenix connector, one RS-485 +/- ground port, one RS-485 +/- ground port, Electrical power +/- frame ground port, power +/- frame ground port,... -
Page 27: Limited 2 Year Warranty
The purchaser must obtain shipping instructions for the prepaid return of any item under this FieldServer Technologies warrants its products to be free warranty provision and compliance with such instruction from defects in workmanship or material under normal shall be a condition of this warranty. - Page 28 APPROVED NOTES UNCONTROLLED DOCUMENT IF PRINTED Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030 (805) 278-5300 Fax (805) 278-5468...
