Led Functions - FieldServer LonWorks ProtoNode Instruction Manual

•
Verify wiring.
•
Verify IP Address setting.
NOTICE: If the problem still exists, a Diagnostic Capture needs to be taken and sent to
support. (Section 8.6 Take Diagnostic Capture with FieldServer
8.4

LED Functions

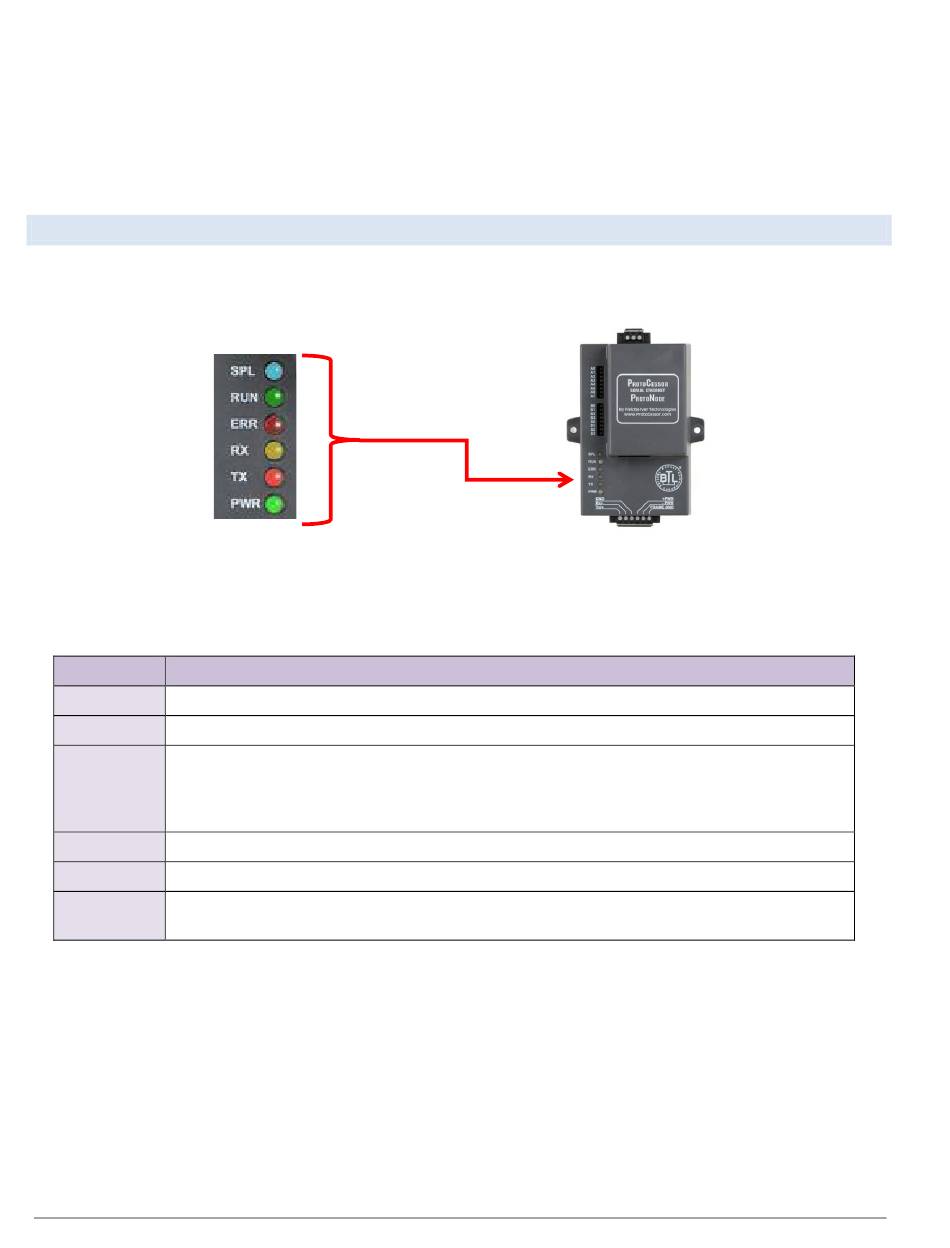

Please see the diagram below for ProtoNode LER LonWorks LED Locations.
Tag
The SPL LED will light if the ProtoNode is offline.
SPL
The RUN LED will start flashing 20 seconds after power indicating normal operation.
RUN
The SYS ERR LED will go on solid 15 seconds after power up. It will turn off after 5
seconds. A steady red light will indicate there is a system error on ProtoNode. If this
ERR
occurs, immediately report the related "system error" shown in the error screen of the GUI
interface to FieldServer Technologies for evaluation.
The RX LED will flash when a message is received on the host port.
RX
The TX LED will flash when a message is sent on the host port.
TX
This is the power light and should always show steady green when ProtoNode is
PWR
powered.
Page 43 of 97
Diagnostic
LEDs
Figure 8-4: ProtoNode LEDS
Description
Utilities)
PN: 106417-05
