Wiring

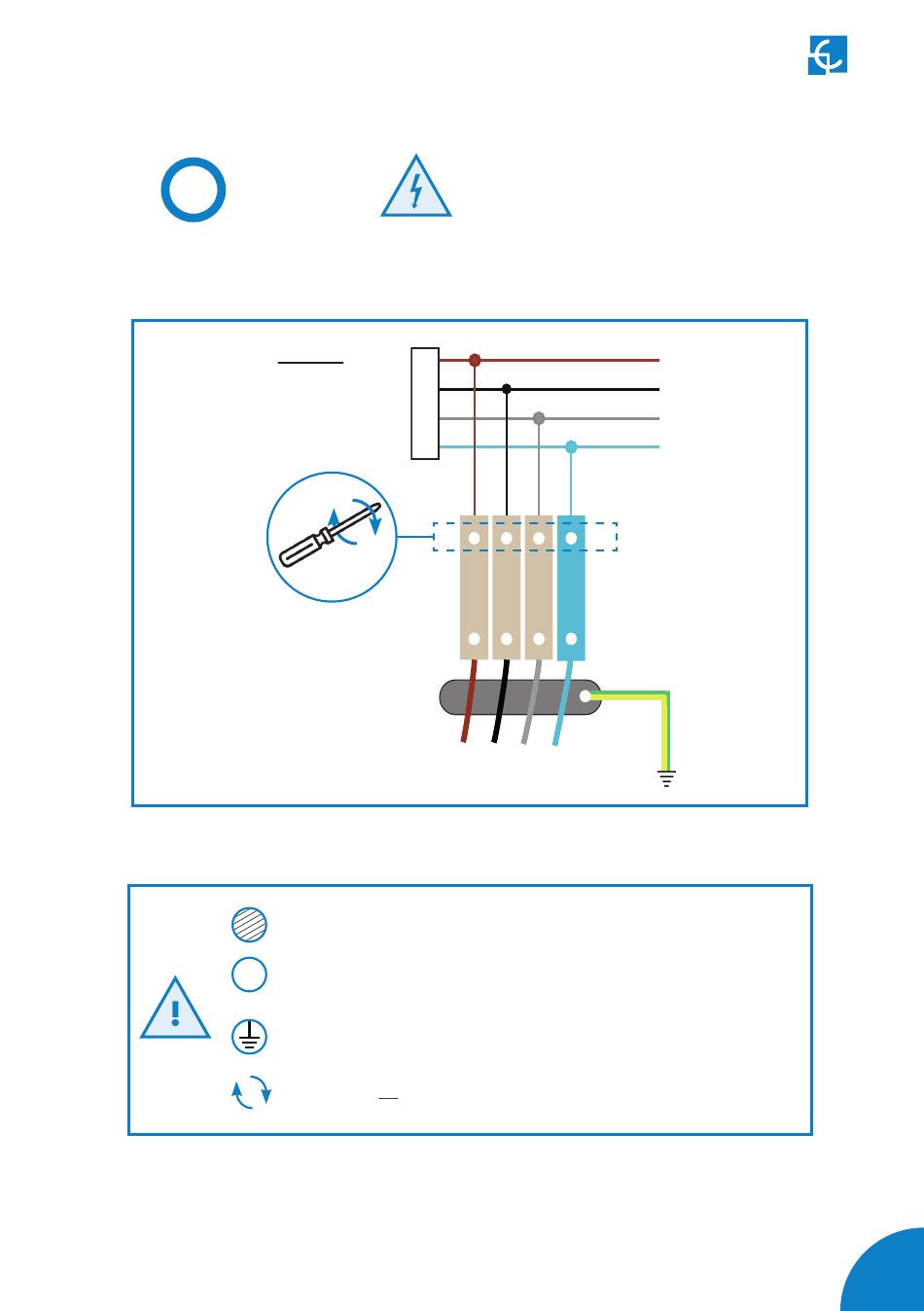

THREE-PHASE CHARGE POINT
Connect to the 400VAC.
S
Terminal block maximum cross-section: 16mm
Type of cable allowed by the terminal block: Aluminium & copper
Al/Cu
Do not forget to connect the ground cable to the ground terminal
Make sure all screws are securely tightened at 4...5 Nm
L1
L2
L3
N
2
19
