- Page 1 USER AND INSTALLATION MANUAL ENGLISH LIQUID FLAME. SYSTEM. ® PART01881 FLAME FX rev 01-00...
-
Page 2: Disclaimer
Should you detect any errors or inaccuracies in the manual, we would be grateful if you would inform us. This helps us to further improve our documentation. MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... -
Page 3: Table Of Contents
Installation and use Install the system Connect the system 3.3 Assigning DMX addresses to flame heads 3.4 Install an external filling pump (optional) 3.5 (Re)fill with fuel manually 3.6 Fire with DMX Use the emergency stop Draining the system Troubleshooting Maintenance Correct disposal EC Declaration of Conformity MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... -
Page 4: Introduction
(e.g. messages relating to property damage). TARGET GROUP This manual is targeted at authorised personnel in the event industry that install and operate the LIQUID FLAME SYSTEM and the required ARM SYSTEM. Authorised personnel are those who: • Are appointed by their supervisor to install and/or operate LIQUID FLAME SYSTEM and the related ARM SYSTEM at the event. -
Page 5: Other Documentation
PUMP STATION MAGICFX LIQUID FLAME PUMP STATION ® HELLFIRE MAGICFX HELLFIRE ® FLAMEBLAZER MAGICFX FLAMEBLAZER ® Abbreviations REVISION TABLE Doc nr Revision Date Description Author Approved PART01881 01-00 26-09-2023 Inital Release MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... -
Page 6: Description

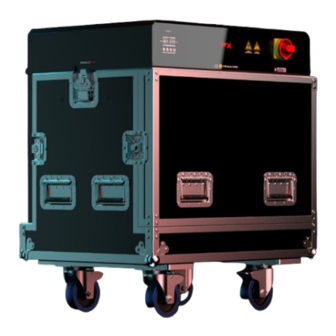

DESCRIPTION SYSTEM DESCRIPTION The LIQUID FLAME SYSTEM is a SFX system for controlled emission of flames. The system consists of an electric pump unit with an internal 100L tank that feeds pressurized liquid fuel to one or more compatible flame heads. The liquid fuel is ejected from the flame head nozzle across spark ignition probes to produce the flame. - Page 7 The PUMP STATION receives a combined DMX and ARM signal, and distributes fuel (via a distribution DMX CONTROLLER POWER block), power and control data to six FLAMEBLAZERs. with DMX injector (32A) MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®...
-
Page 8: Pump Station
7 for more details. For more information about the ARM SYSTEM and to learn how to configure a complete safety system, refer to the ARM SYSTEM Configuration Manual (PART02323). MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... - Page 9 POWER HEAD A&B CONTROL & POWER POWER DRAIN EXTERNAL FILL PUMP BUTTON START/STOP BUTTON HEAD FUEL EXTERNAL FILL PUMP OUTPUT A&B FUEL INPUT DRAIN OUTPUT MANUAL DRAIN VALVE Main parts MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®...
-
Page 10: Technical Data
® controlling Configuring Configure Options On Device & RDM Usage Consumable(s) Isopropanol, ISOPAR G, H & L Consumable Consumption Depends on the connected heads Technical data PRODUCT IDENTIFICATION Type plate MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... -
Page 11: Fuel
FUEL The LIQUID FLAME SYSTEM uses two types of fuel to create the effect. The fuel is loaded via the fuel fill cap at the fluid fill point, or with the external filling pump. -
Page 12: Arm Control
NOTICE connection to an ARM CONTROLLER in an ARM SYSTEM. The LIQUID FLAME SYSTEM is configured for safety control with an ARM SYSTEM. The PUMP STATION cannot be operated without the safety signal from the control unit of the ARM SYSTEM: The ARM CONTROLLER. When there’s no signal, the internal relief valve of the PUMP STATION opens and the system depressurises immediately. -
Page 13: Display Panel
Use the buttons for navigation and selection. The signal LED blinks red when DMX signal is active. The info LED continuously lights red when an error is present. MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... - Page 14 Main Menu Display Dimmer (ON/OFF) Factory Defaults (YES/NO) Error History Type (Alarm/Error) Information Serial number Unique ID Software Version Software CRC Bootloader CRC Build Date Uptime Pump Runtime Menu structure MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®...
- Page 15 Time counter which indicates how long the appliance has been (DDDD:HH:MM:SS) powered in total. Pump Runtime Time counter which indicates how long the effect has been on in (DDDD:HH:MM:SS) total. Menu functions MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®...
-
Page 16: Rdm Capability
RDM can be used for configuration and status monitoring while DMX512 takes care of the default controlling. For RDM you will need a RDM compatible controller. The following RDM parameters are supported by the LIQUID FLAME SYSTEM. Parameter ID Discovery... -
Page 17: Safety
• Only authorised persons may carry out work with the LIQUID FLAME SYSTEM. • Do not use the LIQUID FLAME SYSTEM if there are people or animals in the direct output. • Do not use the LIQUID FLAME SYSTEM if alterations have been made other than by or on behalf of MAGICFX ®... -
Page 18: Rigging
PUMP STATION (278.5 kg). If the PUMP STATION is not installed in level position, fuel may leak from the air vent. MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... - Page 19 WARNING machine can lead to serious eye injury. Always wear safety goggles when you enter the safety zone. The LIQUID FLAME SYSTEM works with pressurized fuel. Make sure WARNING that the fuel pressure is fully dissipated before connecting or disconnecting hoses. Always wear safety goggles and suitable gloves when you connect or disconnect hoses.
- Page 20 Any material that blocks the output nozzle of a flame head can CAUTION result in injuries, fire and damage when the LIQUID FLAME SYSTEM is used. Always inspect the nozzle before operating and remove any obstructing material. The LIQUID FLAME SYSTEM should not be used in winds exceeding CAUTION 20 mph or 32 km/h.
-
Page 21: Installation And Use
8. Use the display and buttons or a RDM controller to assign DMX addresses, see Chapter 2. For more ARM connection and configuration options, refer to the ARM SYSTEM Configuration Manual (PART02323). MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... -
Page 22: Assigning Dmx Addresses To Flame Heads
The LIQUID FLAME SYSTEM works with pressurized fuel. Make sure WARNING that the fuel pressure is fully dissipated before connecting or disconnecting hoses. Always wear safety goggles and suitable gloves when you connect or disconnect hoses. Make sure that hoses and cable runs are clear from obstructions CAUTION and sharp edges. -
Page 23: Install An External Filling Pump (Optional)
WARNING (FX LED indicator on the machine is off) when you approach the PUMP STATION. The LIQUID FLAME SYSTEM works with pressurized fuel. Make sure WARNING that the fuel pressure is fully dissipated before connecting or disconnecting hoses. Always wear safety goggles and suitable gloves when you connect or disconnect hoses. -
Page 24: Fire With Dmx
7. Set the safety key in the OFF position to disarm the ARM SYSTEM and disable operation of the LIQUID FLAME SYSTEM and other connected SFX machines. The fuel pressure in the LIQUID FLAME SYSTEM will safely dissipate within a few seconds. The maximum continuous duration of the effect is 5 seconds. After NOTICE this period the effect will stop automatically. -
Page 25: Use The Emergency Stop
2. Set the safety key on the ARM CONTROLLER to the OFF position. 3. Resolve the emergency situation and inspect the LIQUID FLAME SYSTEM. 4. Release the emergency stop and perform a reset. For instructions, refer to the ARM CONTROLLER User and Installation Manual (PART01882). -
Page 26: Power Drain
Fuels are highly flammable and must be handled with caution WARNING and in accordance with local health and safety regulations. Always follow the safety instructions from the fuel packaging when handling and working with the fuel. MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... -
Page 27: Troubleshooting
• If the problem is not solved, contact MAGIC Always contact MAGIC FX if any malfunctions or errors occur that cannot be solved with the instructions as described in this manual. MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... -
Page 28: Maintenance
MAINTENANCE To achieve the maximum service life of the LIQUID FLAME SYSTEM you must regularly clean the LIQUID FLAME SYSTEM and test if it is functioning correctly. Before conducting any maintenance ensure the machine is switched off and disconnected from a power source and the machine is not hot from recently being used. -
Page 29: Ec Declaration Of Conformity
Translation of the original declaration of conformity Name manufacturer : MAGIC FX B.V. Address : Schouwrooij 27, 5281 RE BOXTEL Country : The Netherlands : B. Veroude Date : 17-5-2023 Signature MAGICFX LIQUID FLAME SYSTEM — User and Installation Manual ®... - Page 32 WWW.MAGICFX.EU...
