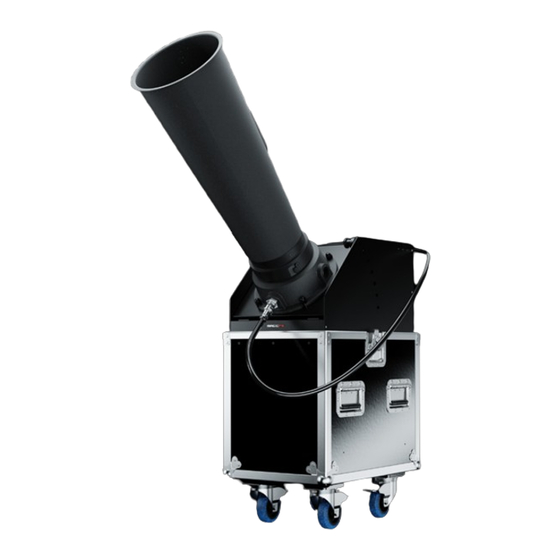

- Page 1 USER AND INSTALLATION MANUAL ENGLISH SUPERBLASTER II. ® CONFETTI FX PART02105 rev 01-00...
-
Page 2: Disclaimer
Should you detect any errors or inaccuracies in the manual, we would be grateful if you would inform us. This helps us to further improve our documentation. MAGICFX® SUPERBLASTER II — User and Installation Manual... -
Page 3: Table Of Contents
Indoor use Rigging Noise level Safety symbols Precautions for operation Let’s blast! Install the machine Fill with confetti and blast! Replace a CO cylinder Clean up Troubleshooting Maintenance EC Declaration of Conformity MAGICFX® SUPERBLASTER II — User and Installation Manual... -
Page 4: Foreword
This document contains the original instructions in English. In case you require other languages please contact MAGIC FX. REVISION TABLE Document nr Revision Date Description Authored by Checked by PART02105 01-00 13-01-2022 Initial release MAGICFX® SUPERBLASTER II — User and Installation Manual... -
Page 5: Superblaster Ii
The CO supply is controlled by hand with the CO valve. To keep the effect going the operator must continuously fill the hopper with confetti. MAGICFX® SUPERBLASTER II — User and Installation Manual... -
Page 6: Main Parts
ANGLE ADJUSTMENT HANDLE CO QUICK CONNECTOR INPUT VENTURI NOZZLE CO HOSE 2 METER CO VENTURI NOZZLE BAYONET LOCK CO INPUT QUICK CONNECTOR MANUAL CO VALVE MOUNTING HOLES MANUAL CO VALVE Main parts MAGICFX® SUPERBLASTER II — User and Installation Manual... -
Page 7: Technical Data
MFX1103 CO₂ Bottle to Hose Connector MFX1115 CO₂ Bottle to Hose Connector 90 Degrees Accessories Please contact MAGIC FX for additional possibilities. ** Hose between CO₂ venturi nozzle and manual CO₂ valve. MAGICFX® SUPERBLASTER II — User and Installation Manual... -
Page 8: Product Identification
Type plate CONFETTI The MAGICFX® SUPERBLASTER II can be set in 7 different angles between 0° and 45°. The output height and output distance depend on the type of confetti and the set angle. The maximum load per blast also depends on the type of confetti. Check the following table. -
Page 9: Blast Safely
Are free of dust, corrosive gases and high concentrations of organic vapours. • Are not situated in the vicinity of a source of vibration. GENERAL SAFETY RULES • Only authorised persons may work with the MAGICFX SUPERBLASTER II. ® • Do not use the MAGICFX SUPERBLASTER II if there are people or animals in the ®... -
Page 10: Indoor Use 2
SUPERBLASTER II close to yourself or ® WARNING to others for a long period of time. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit. MAGICFX® SUPERBLASTER II — User and Installation Manual... -
Page 11: Safety Symbols
Section 2.6. Make sure there are no objects near the output that can be WARNING damaged or overthrown by the MAGICFX SUPERBLASTER II. ® MAGICFX® SUPERBLASTER II — User and Installation Manual... - Page 12 Always keep the output zone as shown in the image below clear of all people, animals and objects. Not doing so results in death or serious injury. MAGICFX® SUPERBLASTER II — User and Installation Manual...
-
Page 13: Let's Blast
LET’S BLAST! INSTALL THE MACHINE Bring the cased MAGICFX SUPERBLASTER II to the desired location ® Unlock the case and remove the top cover. MAGICFX® SUPERBLASTER II — User and Installation Manual... - Page 14 Set the brakes Make sure that all the brakes are set to avoid hazardous WARNING situations. Take the woofer out of the flight case MAGICFX® SUPERBLASTER II — User and Installation Manual...
- Page 15 Pull the index plunger and turn the venturi nozzle upwards by pulling on the plastic handle. Secure the plunger in one of the seven positions MAGICFX® SUPERBLASTER II — User and Installation Manual...
- Page 16 (underneath the panel) counter-clockwise. Mount it back on your preferred location. (at the back or one of the sides). Make sure that the manual CO valve is in CLOSED position after WARNING mounting. MAGICFX® SUPERBLASTER II — User and Installation Manual...
- Page 17 Place the woofer firmly onto the bayonet socket of the hopper until it locks in place. Connect the CO hose to the CO valve and the other end to the base. Make sure that the manual CO valve is in CLOSED position. WARNING MAGICFX® SUPERBLASTER II — User and Installation Manual...
- Page 18 Hose Connector' on the CO cylinder. White plumes can only be created with CO2 Bottles that have a NOTICE dip tube. Consult your CO supplier if you need more information about your bottle. 18 MAGICFX® SUPERBLASTER II — User and Installation Manual...
- Page 19 Connect the CO hose to the Bottle to hose connector' on the CO cylinder. Connect the other end of the CO hose to the manual valve on the SUPERBLASTER II Open the CO cylinder. MAGICFX® SUPERBLASTER II — User and Installation Manual...
-
Page 20: Fill With Confetti And Blast
Not doing so can result in death or serous injury. The MAGICFX SUPERBLASTER II is self-emptying. ® NOTICE When it's time to blast, bring the manual CO₂ valve in OPEN position. MAGICFX® SUPERBLASTER II — User and Installation Manual... - Page 21 Do not touch the CO Venturi Nozzle at the front of the MAGICFX ® SUPERBLASTER II! The nozzle will be frozen after opening the manual CO₂ valve!
-
Page 22: Replace A Co 2 Cylinder
Make sure that the prescribed safety zone is free from persons and objects. Move the 'manual CO valve' in OPEN position to release the pressure that is left inside the system. MAGICFX® SUPERBLASTER II — User and Installation Manual... - Page 23 Move the manual CO valve back in CLOSED position. Disconnect the CO hose from the Bottle to Hose Connector' on the CO cylinder. Remove the 'CO Bottle to Hose Connector' from the cylinder. MAGICFX® SUPERBLASTER II — User and Installation Manual...
- Page 24 Connect a 'CO Bottle to Hose Connector' to a new CO cylinder. Connect the CO hose to the 'CO Bottle to Hose Connector' on the new CO cylinder. Open the CO cylinder. MAGICFX® SUPERBLASTER II — User and Installation Manual...
-
Page 25: Clean Up
Make sure that the prescribed safety zone is free from persons and objects. Move the manual CO valve in OPEN position to release the pressure from the system. Remove the CO hose. MAGICFX® SUPERBLASTER II — User and Installation Manual... - Page 26 Disconnect the CO hose from the Bottle to Hose Connector' on the CO cylinder. Remove the CO Bottle to Hose Connector from the cylinder. Remove the CO input hose from the manual valve. MAGICFX® SUPERBLASTER II — User and Installation Manual...
- Page 27 Remove the CO output hose from the manual valve. Disassemble the valve assembly by turning the star knob counter-clockwise. Assemble the valve assembly back on the handle panel with the star knob. MAGICFX® SUPERBLASTER II — User and Installation Manual...
- Page 28 Grab the handle and pull the index plunger to drop the CO venturi nozzle down in the flight-case. When placed in storage position; Make sure that the index pin is in locking position. 28 MAGICFX® SUPERBLASTER II — User and Installation Manual...
- Page 29 Remove the leftover confetti en place the woofer back in the flightcase. Please use the cut-out placed in the bottom for better alignment NOTICE of the woofer. Place and lock the top cover. MAGICFX® SUPERBLASTER II — User and Installation Manual...
-
Page 30: Troubleshooting
CO valve by pushing the pin of the quick connector. MAINTENANCE To achieve the maximum service life of the MAGICFX SUPERBLASTER II you must ® regularly clean the MAGICFX SUPERBLASTER II and test if it is functioning correctly. -
Page 31: Ec Declaration Of Conformity
Translation of the original declaration of conformity Name manufacturer : MAGIC FX B.V. Address : Schouwrooij 27, 5281 RE BOXTEL Country : The Netherlands : B. Veroude Date : 13-1-2022 Signature MAGICFX® SUPERBLASTER II — User and Installation Manual... - Page 32 WWW.MAGICFX.EU...
