- Page 1 All manuals and user guides at all-guides.com USER AND INSTALLATION MANUAL ENGLISH CO2JET II. PART01184 CO2 FX rev 01-00...
-
Page 2: Disclaimer
Should you detect any errors or inaccuracies in the manual, we would be grateful if you would inform us. This helps us to further improve our documentation. MAGICFX® CO2JET II — User and Installation Manual... -
Page 3: Table Of Contents
Indoor use Rigging Noise level Safety symbols 2.7 Precautions for operation Let’s shoot! Mount on a stage Mount on a truss Connect power Connect CO Let’s blast! 3.7 Clean up Maintenance Troubleshooting Correct disposal EC Declaration of Conformity MAGICFX® CO2JET II — User and Installation Manual... -
Page 4: Foreword
This document contains the original instructions in English. In case you require other languages please contact MAGIC FX. REVISION TABLE Document nr Revision Date Description Authored by Checked by PART01184 01-00 1-6-2018 Initial release MAGICFX® CO2JET II — User and Installation Manual... -
Page 5: Meet The Magicfx ® Co2Jet Ii

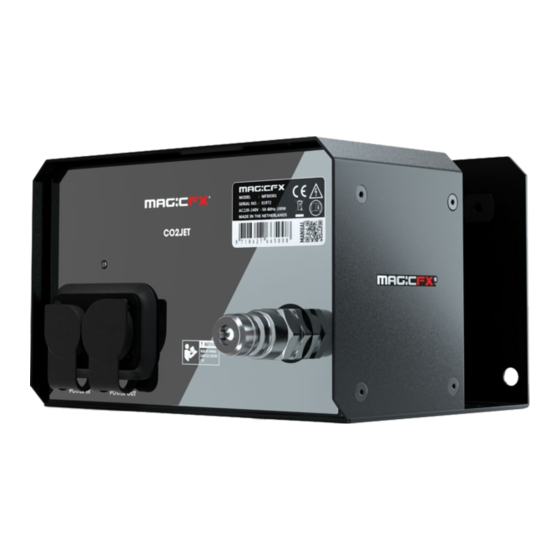

The MAGICFX CO2JET II is equipped with several holes for mounting of the unit to a ® stage or to a truss with a truss clamp and for attaching safety cables. Furthermore the... -
Page 6: Technical Data
20 W Power Connector (Vac) Neutrik® powerCON TRUE1 (in & out) Controlling Control Options Direct output Usage Propellant Liquid CO₂ Propellant Connector CO₂ Quick Connector 3/8” Propellant Consumption 0,5 L/s Technical data MAGICFX® CO2JET II — User and Installation Manual... -
Page 7: Product Identification
CO₂ Bottle to Hose Connector 90 Degrees MFX3103 Twenty Clamp (20kg) M10 SPR00119 Safety Steel SPR00972 Standard Nozzle SPR01236 Low Noise Spray Nozzle CO₂ Accessories Please contact MAGIC FX for additional possibilities. MAGICFX® CO2JET II — User and Installation Manual 7... -
Page 8: Shoot Safely
All manuals and user guides at all-guides.com SHOOT SAFELY! The MAGICFX CO2JET II has been designed and constructed in such a manner that ® it can be used safely. This applies to the use, the circumstances and the regulations as described in this documentation. Reading this documentation and following the... -
Page 9: Indoor Use
INDOOR USE The MAGICFX CO2JET II is designed for outdoor use and use in well-ventilated indoor ® spaces. When used indoors, make sure you take the necessary preparations. These preparations could include, but are not limited to: •... -
Page 10: Safety Symbols
Missing or obscured safety symbols on the machine can lead to WARNING death or serious injury. Make sure all safety symbols are correctly in place, see section 2.6. MAGICFX® CO2JET II — User and Installation Manual... -
Page 11: Let's Shoot
Mount the MAGICFX CO2JET II firmly on a stage. ® NOTICE Optionally use a MAGICFX® BASEPLATE II for stage mounting. Inspect if the MAGICFX CO2JET II is mounted firmly. ® Pull the angle knob and set the output pipe to the desired shooting angle. -
Page 12: Mount On A Truss
CO2JET II within the output ® distance. MOUNT ON A TRUSS Flip the MAGICFX CO2JET II ® upside down. Screw a M10 twenty clamp for truss mounting (product code MFX3103) into both threaded holes. MAGICFX® CO2JET II — User and Installation Manual... - Page 13 All manuals and user guides at all-guides.com Mount the clamp firmly on a truss. Secure the MAGICFX CO2JET II onto the truss. ® MAGICFX® CO2JET II — User and Installation Manual...
-
Page 14: Connect Power
All manuals and user guides at all-guides.com Inspect if the MAGICFX CO2JET II is mounted firmly and secured correctly. ® Pull the angle knob and set the output pipe to the desired shooting angle. Make sure that the direct output will be free from persons and CAUTION animals. - Page 15 POWER OUT Do not connect more units to a single electrical circuit than the CAUTION installed fuse is able to handle. (Calculate the summed load with the electrical data from Chapter 1) MAGICFX® CO2JET II — User and Installation Manual...
-
Page 16: Connect Co
Switch off the power. CONNECT CO Make sure that the power is switched off (LED power indicator is off). Connect the CO hose to the CO quick connector. MAGICFX® CO2JET II — User and Installation Manual... - Page 17 All manuals and user guides at all-guides.com Connect a CO₂ bottle-to- hose connector to a CO cylinder. Connect the CO hose to the CO₂ bottle-to-hose connector on the CO cylinder. Open the CO cylinder. MAGICFX® CO2JET II — User and Installation Manual 17...
-
Page 18: Let's Blast
Make sure that the direct output is free from persons, animals and objects. When it’s time to shoot, switch the power on. Do not use the machine if the CO valve is not opening and CAUTION closing correctly. Enjoy the view! MAGICFX® CO2JET II — User and Installation Manual... -
Page 19: Clean Up
All manuals and user guides at all-guides.com Switch off the power. 3.7 CLEAN UP Close the CO cylinder. Switch the power on to release the remaining pressure. Switch the power off and disconnect the power cable(s). MAGICFX® CO2JET II — User and Installation Manual... - Page 20 All manuals and user guides at all-guides.com Disconnect the CO hose from the CO quick connector. Disconnect the CO hose from the CO₂ bottle-to-hose connector on the CO cylinder. MAGICFX® CO2JET II — User and Installation Manual...
- Page 21 All manuals and user guides at all-guides.com Remove the CO₂ bottle-to- hose connector from the cylinder. Dismount the machine. MAGICFX® CO2JET II — User and Installation Manual...
-
Page 22: Maintenance
To achieve the maximum service life of the MAGICFX CO2JET II you must regularly ® clean the MAGICFX CO2JET II and test if it is functioning correctly. ® Contact MAGIC FX if the MAGICFX CO2JET II is not functioning correctly. -
Page 23: Ec Declaration Of Conformity
Translation of the original declaration of conformity Name manufacturer : MAGIC FX BV Address : Schouwrooij 27, 5281 RE BOXTEL Country : The Netherlands CEO : B. Veroude Date : 31-5-2018 Signature MAGICFX® CO2JET II — User and Installation Manual... - Page 24 All manuals and user guides at all-guides.com MAGICFX® CO2JET II — User and Installation Manual...
