Magicfx Power Drop User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PRODUCTCODE
VERSION
DATE
: MFX1501
: 1.0
: 03.06.2012

Advertisement

Table of Contents
loading

Related Manuals for Magicfx Power Drop

Summary of Contents for Magicfx Power Drop

  • Page 1 PRODUCTCODE : MFX1501 VERSION : 1.0 DATE : 03.06.2012...

  • Page 2: Congratulations

    80 countries. You can rely on MAGICFX® for excellent effects! We work hard to keep you, our customer, satisfied. Congratulations and a lot of success and amazing shows with your new MAGICFX® Power Drop! Page 1...

  • Page 3: Ce Marking

    Unauthorized removal of safety covers and/or safety devices. Improper use of the machine. MAGIC FX B.V. is not liable for any damages due to failures of the Power Drop. © Copyright 2012 All rights reserved. No part of this manual may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopied, recorded or otherwise without the prior written permission of MAGIC FX B.V.

  • Page 4: Declaration Of Conformity

    User Documentation MAGICFX® Power Drop 3. DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY (according to Annex IIA of the Machinery Directive) With respect to the Machinery Directive. MAGIC FX B.V. Industrieweg 16 5281 RW Boxtel The Netherlands Hereby declares under our sole responsibility: We are the manufacturer of the product: ®...

  • Page 5: Foreword

    This manual provides pertinent information about the MAGICFX® Power Drop. The information in this manual is important with respect to the proper and safe operation of the Power Drop. If you are not familiar with the installation, operation, preventive maintenance, etc., of the Power Drop then read this manual in its entirety.

  • Page 6: Table Of Contents

    CE MARKING ....................2 DECLARATION OF CONFORMITY ..............3 FOREWORD ....................4 INTRODUCTION ....................6 DESCRIPTION OF THE POWER DROP AND ITS USAGE ..........6 NECESSARY ACCESSORIES ....................6 SAFETY ......................7 INTRODUCTION ........................7 GENERAL SAFETY RULES ....................7 WARNINGS ..........................

  • Page 7: Introduction

    The Power Drop is an device specially developed for dropping backdrops from as truss construction. The Power Drop is developed to drop a larger range of object like balloons or banners. Should you use the equipment in any way other than just described then you release your supplier from all liability.

  • Page 8: Safety

    Ensure that the Power Drop is not accessible to children, unauthorized persons, or animals! Do not touch the Power Drop when it is operational or turned on. Even if the device is not in operation it might be ready to activate.

  • Page 9: Parts

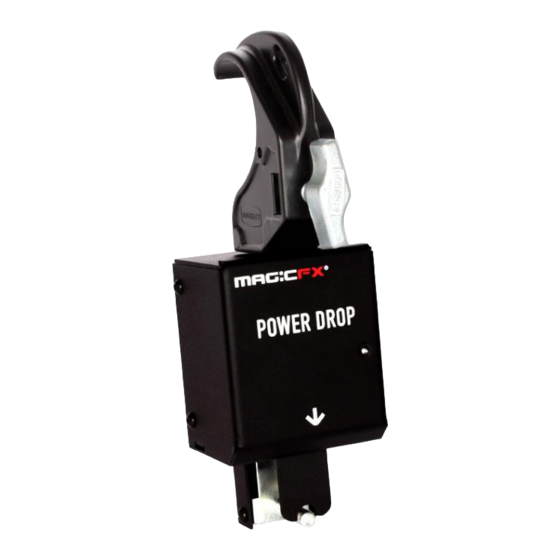

    Version 1.0 7. PARTS 1. LED indicator 2. Drop lever 3. Safetyhook 4. Power in & out 5. Reset pin 6. Truss clamp Page 8...

  • Page 10: Accessories

    E. info@magicfx.eu 9. PREPARATION FOR USE Unpack the Power Drop. Dispose of packaging material without causing harm to the environment. Check the device for any possible damage. You must report any damage to the device to MAGIX FX. Page 9...

  • Page 11: Installing

    This indicates that the equipment may be damaged if procedures are not carried out in the proper manner. DANGER WARNING: The MAGICFX® Power Drop may only be installed by authorized adults. Prepare the Power Drop for use as follows: Mount the Power Drop in a sturdy truss Construction.
  • Page 12 User Documentation MAGICFX® Power Drop To connect the next Power Drop use the powerCON to powerCON cable. Never use more than 25 Power Drops in series on a standard 16 Amp outlet. Connect the Power Drops to a 230VAC power source to check if all the Power Drops are connected.
  • Page 13 By pressing the reset pin up the drop lever will be released. Always use a safety cable to ensure the Power Drop to the construction. On the Power Drop there is a safety hook for a safety cable. Page 12...

  • Page 14: Usage

    DANGER WARNING: The MAGICFX® Power Drop may only be operated by authorized adults. The Power Drop may only be operated if all parts are entire and in good working order and properly connected/installed. Operate the Power Drop as follows:...

  • Page 15: Turning Off

    Turn off the Power Drop as follows: Disconnect the powerCON cable from the Power Drop Unscrew the truss clamp from its construction and unlock the safety cable from the Power Drop. Store the Power Drop in its flightcase to prevent damage. Page 14...

  • Page 16: Troubleshooting

    100W (idle) 15. MAINTENANCE To prolong the life of the Power Drop for as long as possible, you must regularly clean it and test that it functions properly. Regardless of the reason, contact MAGIC FX if the Power Drop does not work properly DANGER WARNING: Never replace parts yourself.
