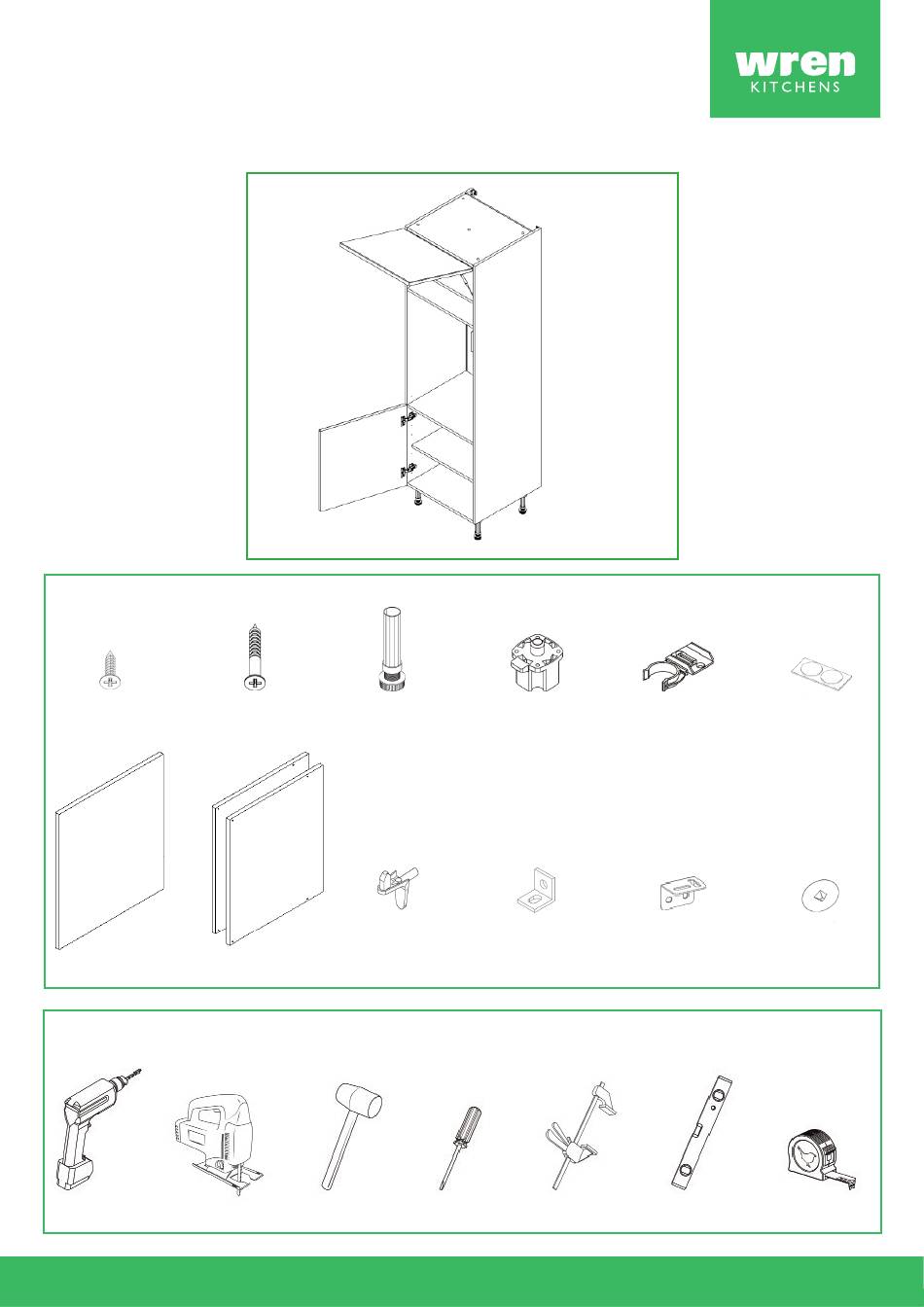

Tower Unit

600 + 450 Appliance Including 1 Lift Door, 1 Door (Door, Solid Top, 5 Legs) -

Fitting Guide

Unit Parts

30x

15mm Screws

30mm Screws

Legs

Leg Brackets

Plinth Clips

Door Buffers

12x

24x

Appliance Shelf

Shelves

Shelf Pegs

Small L-Brackets

L-Brackets

Cover Stickers

Tools Required

Drill

Jigsaw

Mallet

Screwdriver

Clamp

Spirit Level

Tape Measure

Page 1

Need help?

Do you have a question about the Tower Unit 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wren Kitchens Tower Unit 600

Page 1 Tower Unit 600 + 450 Appliance Including 1 Lift Door, 1 Door (Door, Solid Top, 5 Legs) - Fitting Guide Unit Parts 15mm Screws 30mm Screws Legs Leg Brackets Plinth Clips Door Buffers Appliance Shelf Shelves Shelf Pegs Small L-Brackets L-Brackets Cover Stickers Tools Required...
Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damage. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
Page 3 Positioning the leg brackets Locate the leg brackets and position, as shown in the diagram. Ensure the leg brackets are rotated so the flange covers the outer edge, as this provides support for the edge of the unit. Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket.
Page 4 Securing the L-bracket Secure each of the L-brackets to the upper rear of the unit using 2x15mm screws at each side. Notching out the side panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of unit’s side to be notched out.
Page 5 No screws or wall plugs are provided for the wall attachment due to variations in wall materials, thickness, and construction. Before drilling into the wall you MUST check for any hidden services or pipework within the walls. Attaching the unit tower to the wall Fix the unit to the wall through the L-brackets as shown in the image (these fixings are not provided).
Page 6 Inserting the shelves into position Position the shelf pegs into the pre-drilled holes. Place the shelves into position so the pin of the shelf pegs are inserted into the pre- drilled holes in each shelf. The shelf should touch the back panel when installed.
Page 7 Attaching the frontal The frontal should be re-attached to the unit by clipping the hinges onto the hinge plates. The bar of the hinge needs to be positioned into the hooks on the hinge plate. Then the rear of the hinge pushed to the hinge plate until it clicks.
Page 8 Removing the hinge cover cap Use a flathead screwdriver to remove the hinge cover cap by inserting it into the slot of the cover cap and twisting. Adjusting the hinge To adjust the hinges, use a screwdriver as required at points 1 and 2. Point 1 -Will adjust the frontals left and right.
Page 9 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips and the remaining 15mm screws. These will be used later when attaching the plinth. Page 9...
