Wren Kitchens 2070 Assembly Manual
Tower unit, diag corner larder with wine rack
Hide thumbs
Also See for 2070:
- Assembly manual (16 pages) ,
- Fittings manual (14 pages) ,
- Assembly manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Wren Kitchens 2070
Summary of Contents for Wren Kitchens 2070

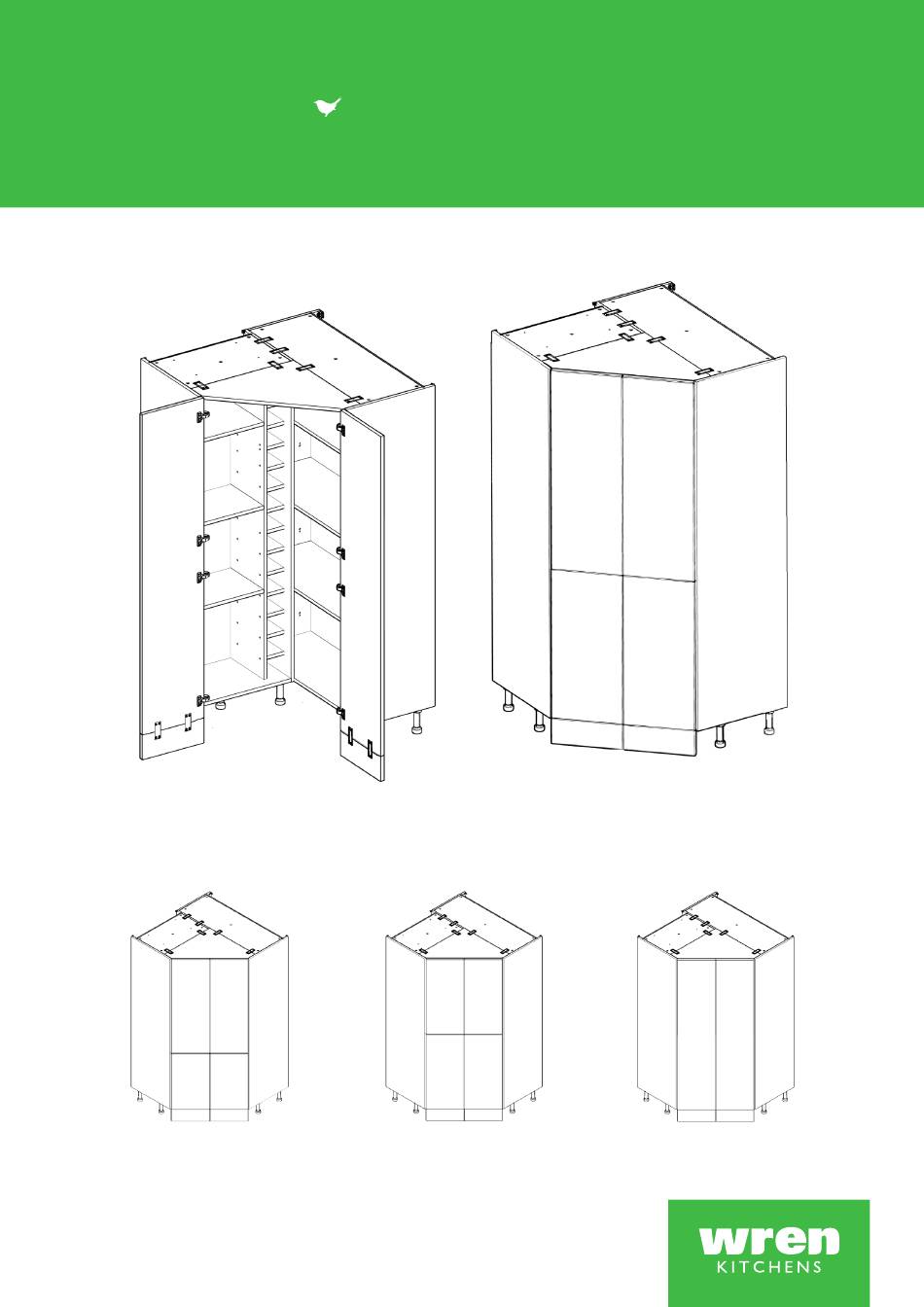

- Page 1 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide 2070 x 600 2250 x 600 Tall 70/30 Door 50/50 Door 1 Door For Internal Use: FI.WR.INS.097_WKIN00199_TOWER45WineRack_Assembly_Rev9...
- Page 2 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED OPTION 70/30 OPTION 50/50 OPTION Panel C...
- Page 3 Step 1. Lay both units (LH) & (RH) flat as shown. Secure 5 x fixing plate (U) positioned onto outside face of panel (B) of unit (RH) equally spaced using 2 x 15mm screws (L) as shown. View from above Unit RH Step 2.
- Page 4 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 3. Secure leg base into place with 4 x 15mm screws (L) per leg as shown. Ensure legs are rotated to also provide support to the end panels (B).
- Page 5 Step 6. Step 7. Position unit LH and unit RH together as shown. Screw through fixing plate (U) into adjoining unit LH using Ensure units are flush & square. 2 x 15mm screws (L) to secure both units together. Repeat per fixing plate (U). View from rear of unit Front Front...
- Page 6 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 9. Use 2 x 15mm screws (L) to secure each of the 4 x L brackets (LGE) to both units positioned as shown. Front Front Fixings to Wall Step 10.
- Page 7 Step 11. When combined unit is secured in position, attach top Panel (C), using 4 x fixing plates (U) combined with 4 x 15mm screws (L) per plate, U & L U & L positioned as shown. U & L U &...
- Page 8 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 14. Attach hinge plates onto end panels (B) to suit as shown using 2 screws already positioned within the hinge plate. Hinge side or sides to be mounted in accordance to Customer Specific Kitchen Plan.
- Page 9 Step 14. Attach hinge plates onto end panels (B) to suit as shown using 2 screws already positioned within the hinge plate. Hinge side or sides to be mounted in accordance to Customer Specific Kitchen Plan. 70/30 50/50 HINGE HINGE POSITION POSITION From Top...
- Page 10 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Step 14. Attach hinge plates onto end panels (B) to suit as shown using 2 screws already positioned within the hinge plate. Hinge side or sides to be mounted in accordance to Customer Specific Kitchen Plan.
- Page 11 Door Frontal Fixing (Where Applicable) Infinity + Doors Supplied in accordance to 50/50 & 70/30 1DOOR OPTION customer specific kitchen plan OPTIONS Fixing plate Step 1. Insert hinge into hinge holes provided, in accordance with customers plan. Step 2. Align doors & frontal plinth to join together using fixing plates (U) to the back of both frontals.
- Page 12 TOWER UNIT 2070 & 2250 Diag Corner Larder with Wine Rack Assembly Guide Door Frontal Fixing (Where Applicable) Infinity Doors supplied in accordance to 50/50 & 70/30 1DOOR OPTION customer specific kitchen plan OPTIONS Fixing plate Step 1. Insert hinge into hinge holes provided, in accordance with customers plan.
