E A S Y - F I T S O F T C L O S E
Base Unit

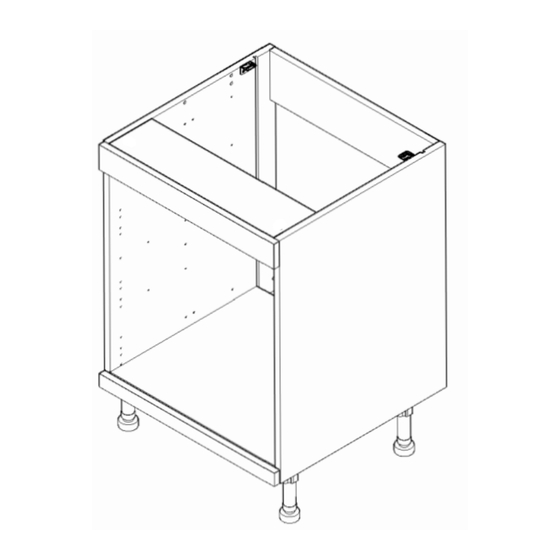

600 Oven Appliance Base (Open Top, 4 Legs) - Fitting Guide

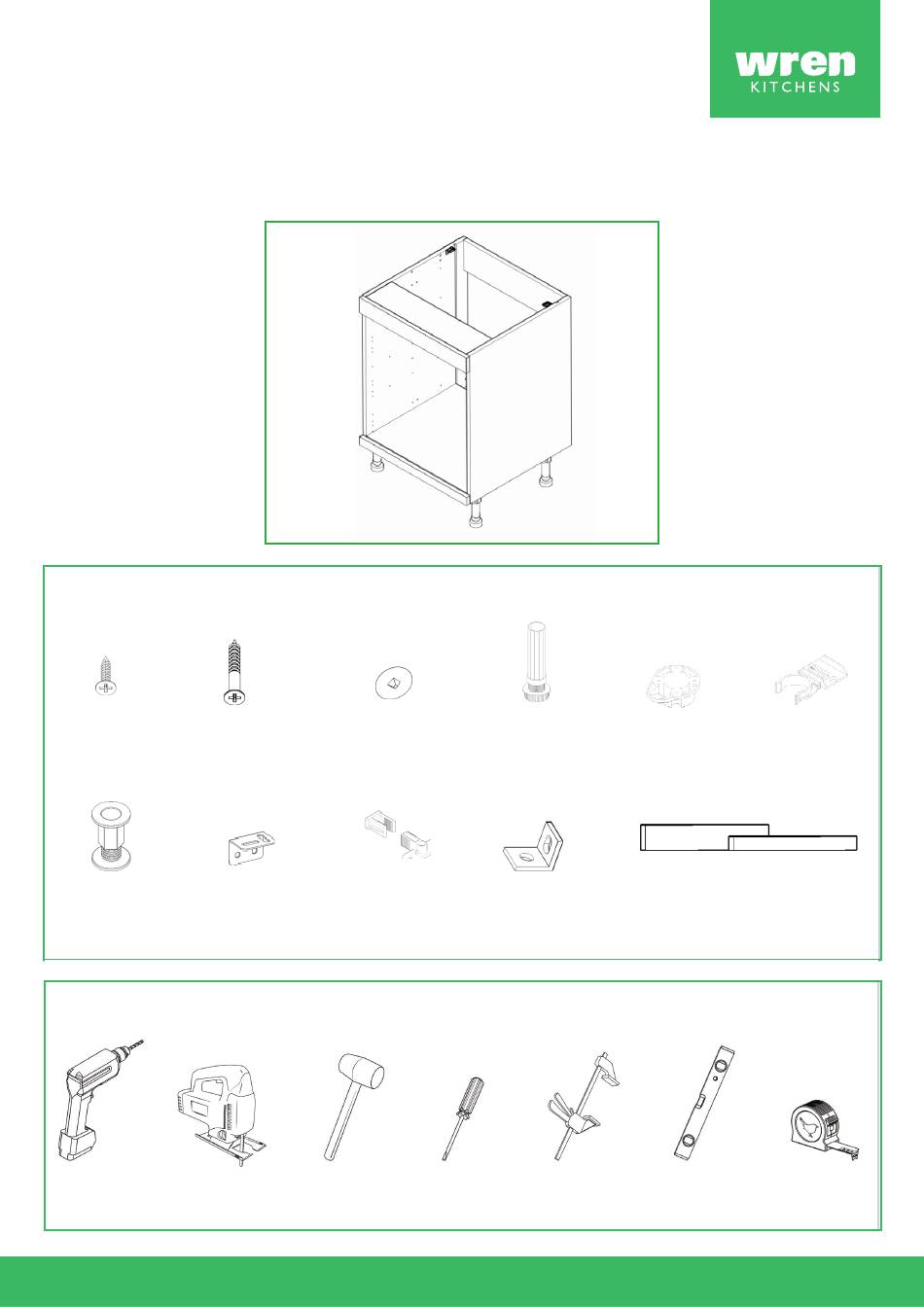

Unit Parts
22x 15mm
6x 30mm
screws
1x Space
2x L-Brackets
Plug
Tools Required
Drill
Jigsaw
18x
Cover Caps
screws
2x Dummy
Fixing Clip
Inc Screws
Screwdriver
Mallet
4x
4x Leg
Legs
Brackets
2x Small L
1x Filler F
Bracket
(Packed
separatly)
Clamp
Spirit Level
2x Plinth
1x Filler G
(Packed
separatly)
Tape Measure
Page 1
Advertisement
Related Manuals for Wren Kitchens Base Unit 600
Summary of Contents for Wren Kitchens Base Unit 600
- Page 1 E A S Y - F I T S O F T C L O S E Base Unit 600 Oven Appliance Base (Open Top, 4 Legs) - Fitting Guide Unit Parts 22x 15mm 6x 30mm 4x Leg 2x Plinth Cover Caps screws screws...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 155mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise. Attaching the L-brackets to Filler G Using one 1x15mm screw per small L bracket, attach the two small L brackets to the inner face of Filler F.
- Page 4 Securing the dummy fixing clips onto Filler F (Part A) Secure the dummy fixing clips (Parts A) onto both the side panels of the unit using 2x15mm screws for each of the clips. Using the pre-drilled hole, position the bottom screw hole 74mm from the top of the unit’s side panel.
- Page 5 Notching out the end panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of unit’s side to be notched out. Create a notch for the horizontal pipes at the back of the end panels using a jigsaw.
- Page 6 Securing to adjacent units Clamp together the two units, checking the front edges are level and flush. Using the screws provided, 1x30mm screw should be fixed into each corner of the carcase side. The screws can be concealed by placing them behind the appliance.
