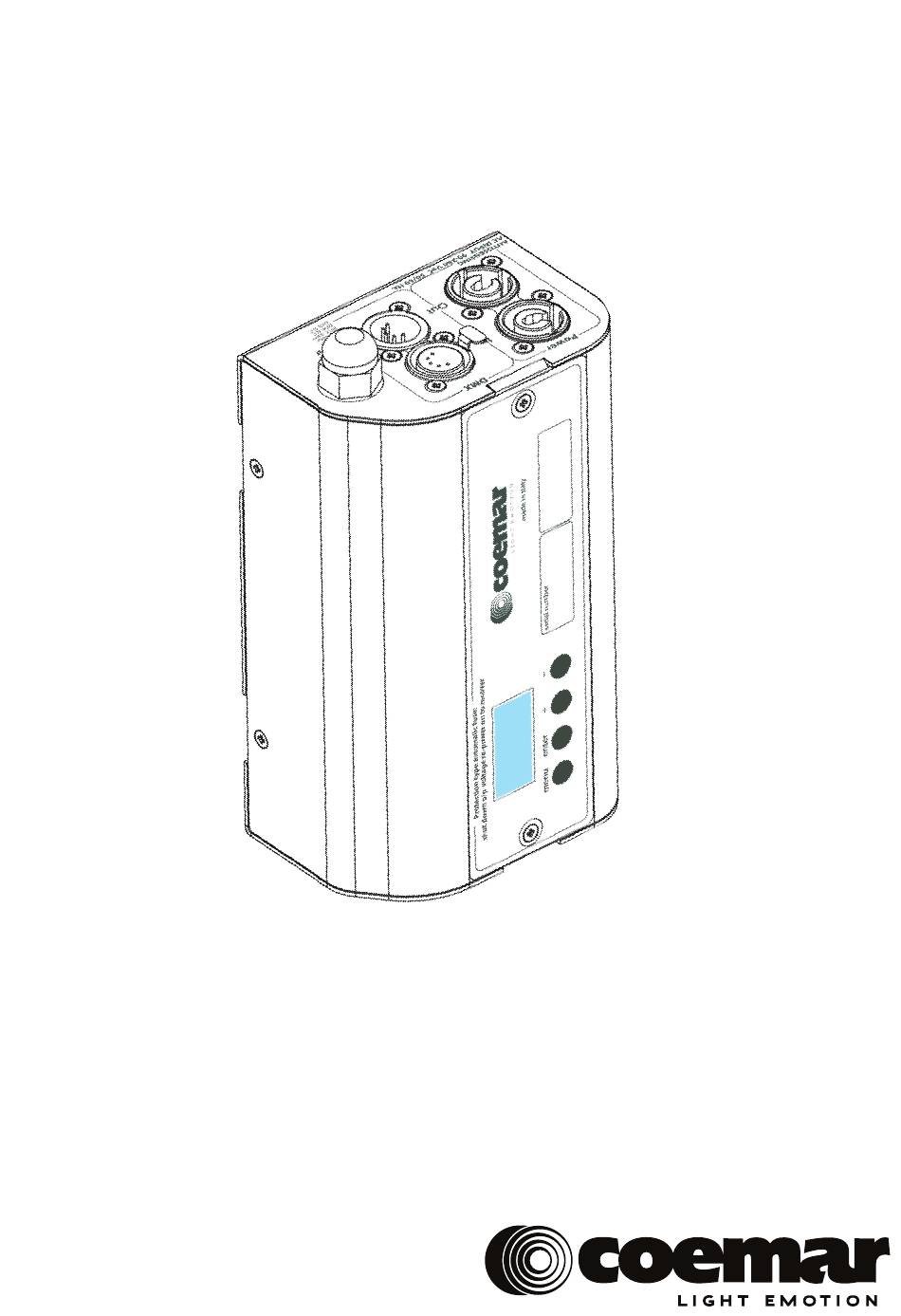

  • Page 1 ReLite Led Kit T / D * ReLite Led Kit 150 version...
  • Page 2 Italiano ReLite Led Kit T / D Serial Number: ....................................... Purchase date: ...................................... Dealer: ...................................... Address: ...................................... Suburb: ...................................... Country: ...................................... Phone / Fax: ...................................... Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your ReLite Led Kit: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    Italiano Index 1. Packaging and transportation ..........................Pag. 4 1.1 Packaging ................................Pag. 4 1.2 Transportation ..............................Pag. 4 2. General information .............................. Pag. 4 2.1 Safety informations ............................Pag. 4 2.2 Warranty conditions ............................Pag. 5 2.3 EC norms ................................. Pag. 5 3.

  • Page 4: Packaging And Transportation

    Italiano Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation).

  • Page 5: Warranty Conditions

    3. The level of technology of ReLite Led Kit requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. Never connect the fixture if there is no earth connection.

  • Page 6: Product Specifications

    Italiano . Product specifications Technical characteristics Power supply 80-264 V, auto-sensing, 50/60 Hz Maximum current Depending on the LED module and the size/model of the fixture Power factor Cosφ > 0.95 (all versions) Max power consumption Depending on the fixture Color temperature Tungsten: 3.200 K - Daylight: 5.600 K Color Rendering Index (CRI)

  • Page 7: Unit's Main Components

    Italiano Unit’s main components * ReLite Led Kit 150 version Components description Display panel DMX In DMX Out D PowerCon In PowerCon Out Skintop...

  • Page 8: Installation

    Italiano Installation Mechanical installation With ReLite Led Kit will be possible to give new life to your projector, simply replacing the old lamp with the ReLite Led group. The ReLite Box can be fixed to your projector’s yoke through the fixing plates present on the box (A).

  • Page 9: Powering Up

    Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, operating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power ReLite Led Kit is equipped with two power connectors, one as input and one as output.

  • Page 10: Control Signal Connections

    Italiano . Control signal connections Control signal connection by XLR5 plugs The digital control signal is transmitted to the projector via a two pole cable screened in according to the Inter- national standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of ReLite Led Kit labelled DMX512 IN e OUT.

  • Page 11: Turning The Projector On

    Italiano . Turning the projector on After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, suddenly it will show the current DMX addressing.

  • Page 12: Dmx Chart

    Italiano . DMX chart 8.1. DMX Chart 5, 1 channels channel function type of control effect decimal percentage adjust luminous output master dimmer proportional 0 - 255 - 100% intensity from 0 to 100% spare channel step no effect 0 - 255 - 100% dimmer fine proportional...

  • Page 13: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection.

  • Page 14: Quick Cct Menu

    Italiano Quick dimmer menu By pressing the enter button, the user will enter the quick dimmer menu: thanks to this menu it will be possible to increase and decrease the light intensity in steps of 10 (in a range from 0 to 100).

  • Page 15: Main Functions Menu

    Italiano Main functions menu Tungsten: Mimics the slow dimming curve of tungsten tUnG lamps. It allows the selection of different dimmer [Tungsten] curves: exponential (default), logarithmic and linear; Allows to manually set the DMX channels controlled by a DMX console: •...
  • Page 16 Italiano DMX channels: Shows the DMX mode and number of channels 5 CH selectable; Channels] [DMX channels] Display functions: Changes the display settings: • Reverse: rotates the display of 180°; 1 CH Channel] • Auto: Sets or disables the automatic display turn off function, which would occur after 10 seconds of inactivity;...

  • Page 17: Measures Menu (Meas)

    Italiano Measures menu (MEAS) Temperature: tEMP Shows the current temperature values: t.LEd • LED: shows the LED module temperature; [LED Temperature] • Board: shows the electronic board [Temperature] temperature. Volt: Shows the power supply voltage. [Board Temperature] DMX Input: vOLt Shows the value of the DMX channels received by the fixture on every channel that the fixture occupies on the line.
  • Page 18 Italiano LED: Shows the percentage value of the LED status. Fre: Shows the operating frequency of the LED (611 Hz as default). [LED Status] Fan speed: Shows the voltage in which the fan is operating Usage hours: Shows the hour counter of the fixture: •...

  • Page 19: Electronic Alignment Of The Leds

    The display panel of ReLite Led Kit allows the electronic alignment of the LEDs, this procedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, LEDs, etc...).

  • Page 20: Special Functions Of The Fixture

    The projector self-diagnostic routine didn’t find any issue. [No Alarm] Data error DTER Initial data loading has failed the projector loaded the default data settings: restart the fixture again, and if the error persists contact the Coemar as- [Data Error] sistance center. Address error ADER The projector does not receive all channels of DMX needs to function properly.

  • Page 21: Spare Parts

    Italiano Spare parts All ReLite Led Kit ’s spare parts are available from your Coemar service centers. Specifying in detail the projector model and the replacement part requested, will help the service center to serve you in the best way.
  • Page 22 Italiano User notes ............................................................................................................................................................................................................................
  • Page 23 Italiano User notes ............................................................................................................................................................................................................................
  • Page 24 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 25 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
