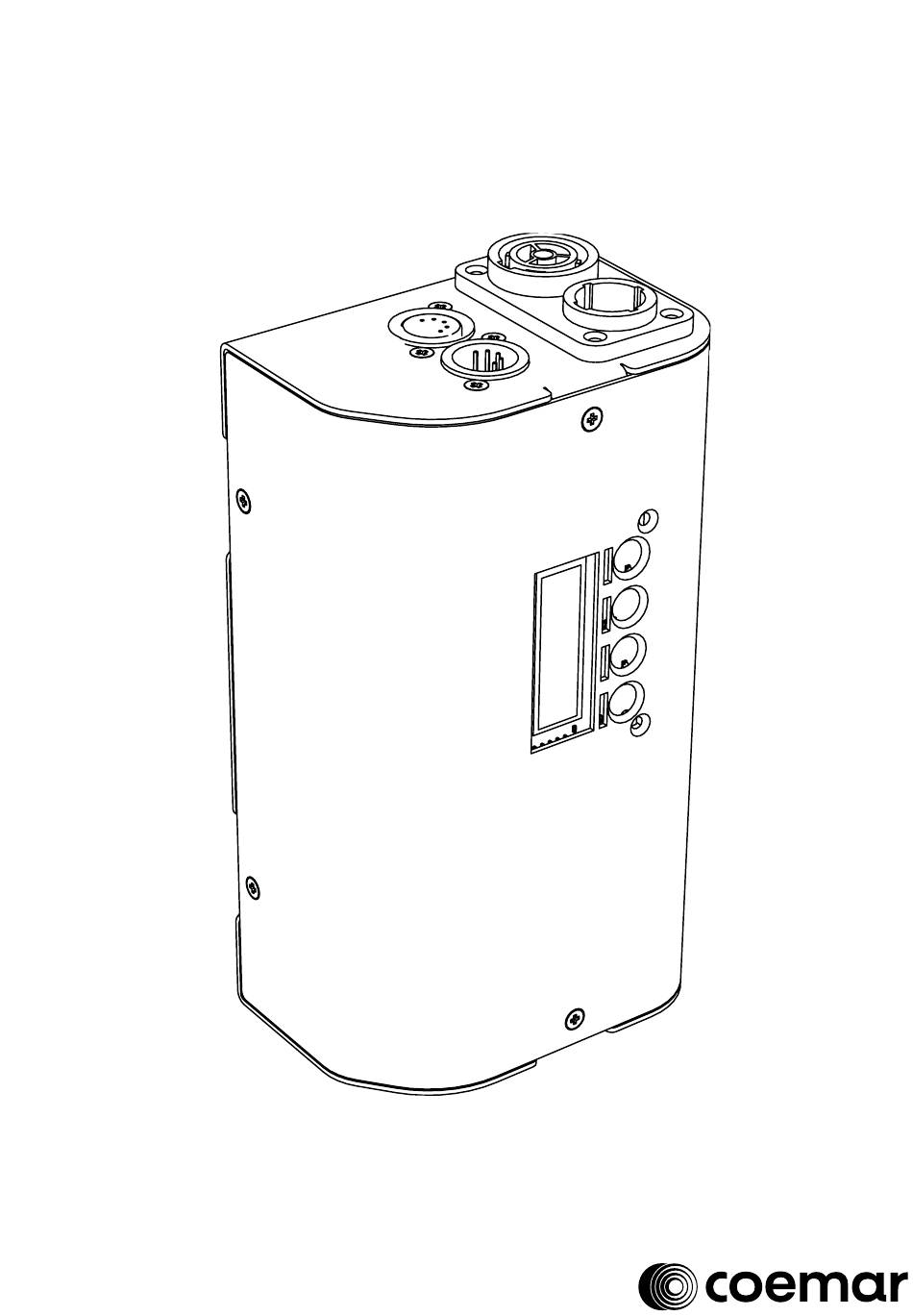

  • Page 1 ReLite Led Kit + USER MANUAL vrs. 1.1 - 01.08.2023...
  • Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.

  • Page 3: Table Of Contents

    Italiano Index 1. Packaging and transportation ....................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ........................Pag. 5 2. General information ........................Pag. 5 2.1 Safety informations ....................... Pag. 5 2.2 Warranty conditions ......................Pag. 6 2.3 EC norms ..........................Pag. 6 3.
  • Page 4 Italiano 9. DMX chart VariWhite Version ....................Pag. 15 9.1 DMX modes ........................... Pag. 15 9.2 DMX Chart 5 channels ......................Pag. 16 9.3 DMX Chart 2 and 1 channels ....................Pag. 17 9.4 DMX Chart Sunrise mode ....................Pag. 17 9.5 DMX Chart Raw mode ......................

  • Page 5: Packaging And Transportation

    Italiano Packaging and transportation Packaging Open the packaging and make sure that no part of the equipment has suffered any damage dur- ing the transportation. In case of damage to the fixture, contact your currier and your supplier immediately by telephone, fax or email, and inform them you will formally notify them in writing through registered letter.

  • Page 6: Warranty Conditions

    Italiano 3. The level of technology of ReLite Led Kit+ requires the use of specialised per- sonnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector.

  • Page 7: Product Specifications

    Italiano . Product specifications Technical characteristics Power supply 80-264 V, auto-sensing, 50-60 Hz Depending on the LED module and the size/model of the Maximum current fixture Power factor Cosϕ > 0.95 Depending on the LED module and the size/model of the Power consumption fixture Proportional control 2.700 →...

  • Page 8: Unit's Main Components

    Italiano Unit’s main components *The LED group depends on the size/model of the fixture Components description A Display panel DMX In C DMX Out PowerCon TRUE1 Top In PowerCon TRUE1 Top Out Skintop...

  • Page 9: Installation

    Italiano Installation Mechanical installation With ReLite Led Kit+ will be possible to give new life to your projector, simply replacing the old lamp with the ReLite Led Group. The ReLite Box can be fixed at the projector’s yoke through the fixing plates present on the box (A).

  • Page 10: Powering Up

    Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, oper- ating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power ReLite Led Kit+ equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (115 V) fixtures.

  • Page 11: Control Signal Connections

    Italiano . Control signal connections Control signal connection by XLR5 plugs The digital control signal is transmitted to the projector via a two pole cable screened in accord- ing to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of ReLite Led Kit+ labelled DMX512 IN e OUT.

  • Page 12: Turning The Relite Led Kit+ On

    Italiano . Turning the ReLite Led Kit+ on After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, suddenly it will show the current DMX addressing.

  • Page 13: Dmx Chart Fixed White Version

    Italiano . DMX chart Fixed White Version DMX modes channels channels channels ↓ Master Dimmer Master Dimmer Spare Channel Dimmer Fine Strobe Special Function...

  • Page 14: Dmx Chart 5 And 1 Channels

    Italiano DMX Chart 5 and 1 channels channel type of function effect decimal percentage control adjust luminous output 1 master dimmer proportional 0 - 255 0% - 100% intensity from 0 to 100% spare channel step no effect 0 - 255 0% - 100% dimmer fine proportional...

  • Page 15: Dmx Chart Variwhite Version

    Italiano . DMX chart VariWhite Version DMX modes Sunrise 2 (MK1) channels channels channels channel mode mode channels channels ↓ Master Master Master Master Warm Master Master Dimmer Dimmer Dimmer Dimmer White Led Dimmer Dimmer Dimmer White Dimmer Warm White White Dimmer Fine...

  • Page 16: Dmx Chart 5 Channels

    Italiano DMX Chart 5 channels type of channel function effect decimal percentage control master adjust luminous output intensity proportional 0 - 255 0% - 100% dimmer from 0 to 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% step 2.700 K...

  • Page 17: Dmx Chart 2 And 1 Channels

    Italiano DMX Chart 2/1 channels channel type of function effect decimal percentage control master adjust luminous output intensity proportional 0 - 255 0% - 100% dimmer from 0 to 100% white tone proportional proportional value from 2.700 K to 6.500 K 0 - 255 0% - 100% DMX Chart Sunrise mode...

  • Page 18: Dmx Chart Raw Mode

    Italiano DMX Chart Raw mode type of channel function effect decimal percentage control warm white adjust luminous output intensity of warm white proportional 0 - 255 0% - 100% led from 0 to 100% warm white proportional warm white led fine control 16 bit 0 - 255 0% - 100% led fine...

  • Page 19: Dmx Chart 2 Channels (Mk1)

    Italiano DMX Chart 2 channels (MK1) type of channel function effect decimal percentage control adjust luminous output intensity master dimmer proportional 0 - 255 0% - 100% from 0 to 100% 3200 K 0 - 10 0% - 4% 2700 K 11 - 16 4% - 6% 2800 K...

  • Page 20: Dmx Chart 6 Channels

    Italiano DMX Chart 6 channels channel function type of control effect decimal percentage master adjust luminous output proportional 0 - 255 0% - 100% dimmer intensity from 0 to 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% 3200 K 0 - 10...
  • Page 21 Italiano step no effect fine white temperature control proportional (from temperature selected to - 126 - 49% the previous step) white temperature step no effect 127 - 128 50% - 50% fine fine white temperature control proportional (from temperature selected 129 - 254 51% - 99% to the following step) step...

  • Page 22: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection.

  • Page 23: Fixed White Version

    Italiano Fixed White Version 10.3 Main functions menu INTENSITY: intensity Allows to adjust the luminous output intensity from 0 to 255 (d: decimal units). STROBE: strobe Manually sets the strobe DMX channel. SETTINGS: settings Manually sets various settings of the projector (section Settings).

  • Page 24: Settings

    Italiano 10.4 Settings DIMMING CURVE: dimming curve exponential It allows the selection of different dimmer curves: exponential exponential (default), halogen halogen, standard, linear and logarithmic. standard linear logarithmic SMOOTH: smooth Allows to change the speed of every dimming fast curve between FAST (standard), SLOW, VERY SLOW.
  • Page 25 Italiano FREQUENCY: frequency 600 Hz Shows the operating 600 Hz frequency of the LED 1500 hz (600 Hz as default). 2000 hz 5000 hz 20000 hz PERSONALITIES: PERSONALITIES 5 CH It is possible to choose between 5 channels or 5 CH 1 channel, in which the 1 CH projector will operate.

  • Page 26: Display

    Italiano 10.5 Display REVERSE: reverse It allows to turn by 180° the reading of the display. When you chose “ON” wait the turn of the display without clicking. AUTO LOCK: AUTO LOCK Locks the keys. OFF: Auto Lock function in OFF HOLD HOLD: Press any key for 3 seconds to unlock.

  • Page 27: Measures

    Italiano 10.6 Measures TEMPERATURES: TEMPERATURES Shows the current ° F temperature values of MIN NOW MAX the fixture. LED: -°C -°C -°C LED: shows the LED module temperature. BOARD: -°C -°C -°C BOARD: shows the electronic board temperature. TEMPERATURES TEMP histories HISTORIES: °...
  • Page 28 Italiano LED STATUS: led status w: -% Shows the percentage value of the LED status. c: -% LED PROTECTION: led protection Percentage of the maximum power in order to keep the projector in temperature. PSU VOLTAGE: psu voltage Shows the power supply voltage.

  • Page 29: Variwhite Version

    Italiano VariWhite Version 10.7 Main functions menu INTENSITY: intensity Allows to adjust the luminous output intensity from 0 to 255 (d: decimal units). CCT: 2700 k This channel offers a preset library of 2700 k various white CCT 2800 k with a range that goes from 2.700 K 2900 k...
  • Page 30 Italiano STROBE: strobe Manually sets the strobe DMX channel. SETTINGS: settings Manually sets various settings of the projector. MEASURES: measures Check all the measures and product status. FACTORY RESET: factory reset Allows to return to sure? the factory settings: Light Intensity: 80 CCT: 4.400 K DMX Channels: 5 Fan: Auto mode...

  • Page 31: Settings

    Italiano 10.8 Settings DIMMING CURVE: dimming curve exponential It allows the selection of different dimmer curves: exponential exponential (default), halogen halogen, standard, linear and logarithmic. standard linear logarithmic SMOOTH: smooth Allows to change the speed of every dimming fast curve between FAST (standard), SLOW, VERY SLOW.
  • Page 32 Italiano FREQUENCY: frequency 600 Hz Shows the operating frequency of the LED 600 Hz (600 Hz as default). 1500 hz 2000 hz 5000 hz 20000 hz PERSONALITIES: PERSONALITIES 5 CH It is possible to choose between 5, SUNRISE, 5 CH RAW, 1, 2, MK1 or 6 SUNRISE Channels modalities, in...

  • Page 33: Display

    Italiano 10.9 Display REVERSE: reverse It allows to turn by 180° the reading of the display. When you chose “ON” wait the turn of the display without clicking. AUTO LOCK: AUTO LOCK Locks the keys. OFF: Auto Lock function in OFF HOLD HOLD: Press any key for 3 seconds to...

  • Page 34: Measures

    Italiano 10.10 Measures TEMPERATURES: TEMPERATURES Shows the current ° F MIN NOW MAX temperature values of the fixture. LED: -°C -°C -°C LED: shows the LED module BOARD: -°C -°C -°C temperature. BOARD: shows the electronic board temperature. TEMPERATURES TEMP histories HISTORIES: °...
  • Page 35 Italiano LED STATUS: led status w: -% Shows the c: -% percentage value of the LED status. LED PROTECTION: led protection Percentage of the maximum power in order to keep the projector in temperature. PSU VOLTAGE: psu voltage Shows the power supply voltage.

  • Page 36: Wi-Fi Menu (Optional)

    Italiano . Wi-Fi Menu (OPTIONAL) 11.1 Wi-Fi WIFI ENABLE: WIFI ENABLE It allows enable all the Wi-Fi functions WIFI UNLINK: WIFI unlink sure? This function is used to disconnect the projector from the transmitter.

  • Page 37: Special Function And Error Messages

    If a malfunction occurs, ReLite Led Kit+ has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. Error code...

  • Page 38: Spare Parts

    Italiano Spare parts All ReLite Led Kit+’s spare parts are available from your Coemar service centers. Specifying in de- tail the projector model and the replacement part requested, will help the service center to serve you in the best way.
  • Page 39 Italiano User notes ........................................................................................................................................................................................................
  • Page 40 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 41 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
