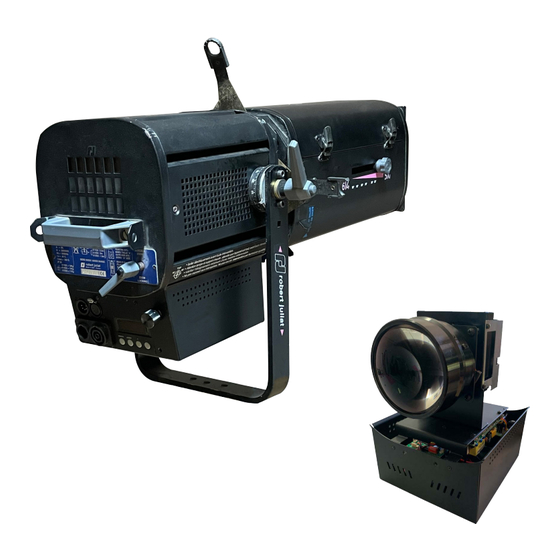

Coemar Romeo User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

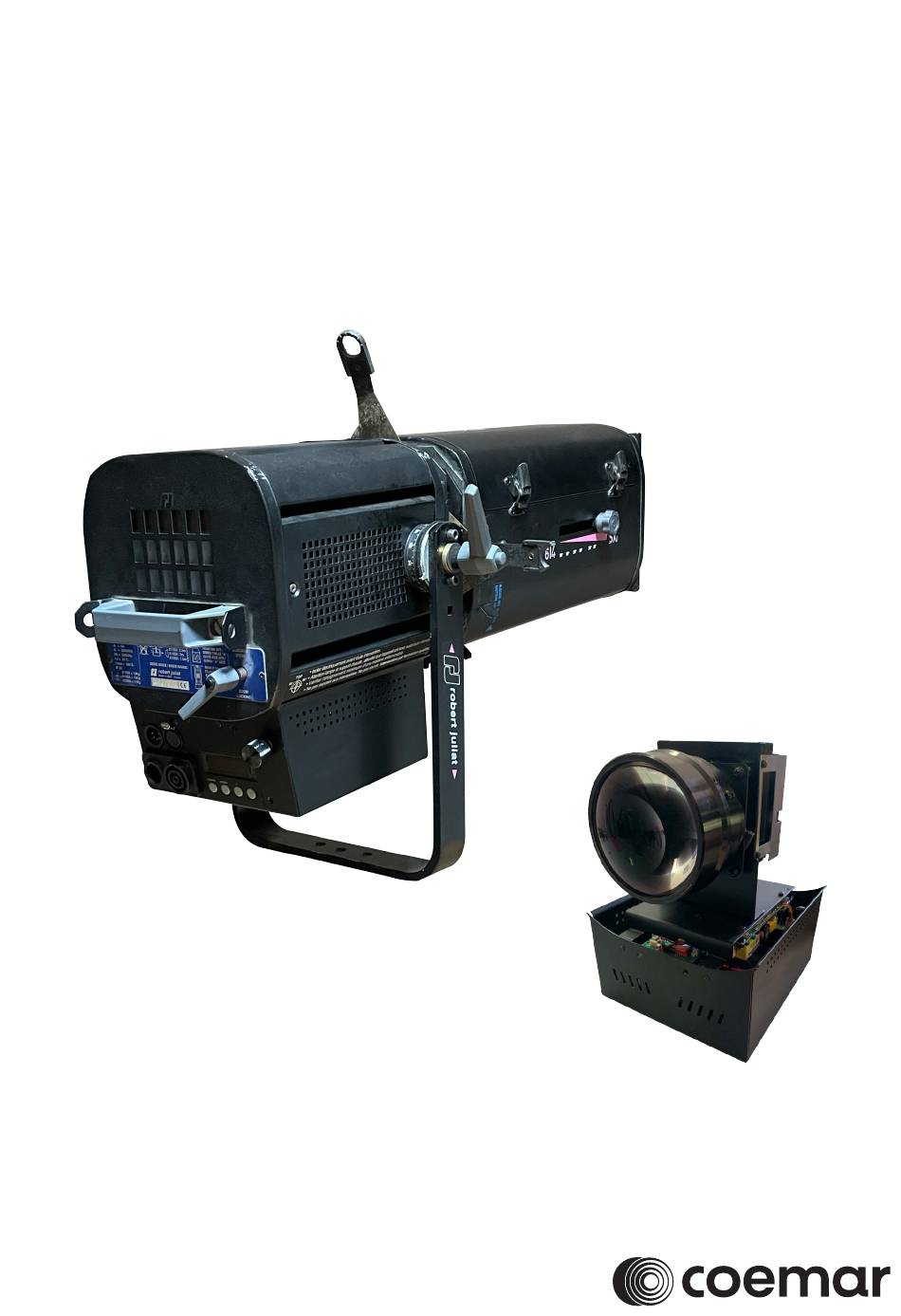

USER MANUAL
vrs. 1.0 - 21.03.2024
Romeo
Romeo

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Romeo and is the answer not in the manual?

Questions and answers

Related Manuals for Coemar Romeo

Summary of Contents for Coemar Romeo

  • Page 1 Romeo Romeo USER MANUAL vrs. 1.0 - 21.03.2024...
  • Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.

  • Page 3: Table Of Contents

    6.1 Control signal connection by XLR5 plugs ................Pag. 10 6.2 Power Unit ..........................Pag. 10 7. Turning the Romeo on ........................ Pag. 11 7.1 DMX address of the unit ....................... Pag. 11 8. DMX chart Fixed White Version ....................Pag. 12 8.1 DMX Chart 5 and 1 channels ....................
  • Page 4 Italiano 10. Display panel functions ......................Pag. 16 10.1 Quick guide to menu ......................Pag. 16 10.2 Rapid count ........................Pag. 16 Fixed White Version 10.3 Main functions menu......................Pag. 17 10.4 Settings ..........................Pag. 18 10.5 Display ..........................Pag. 20 10.6 Measures ..........................

  • Page 5: Packaging And Transportation

    4. Replace any blown or damaged fuse only with those of identical values. Refer to the schematic diagram if there is any doubt. 5. Connect the projector, where the Romeo is installed, to mains power protected by a thermal magnetic circuit breaker.

  • Page 6: Warranty Conditions

    Italiano 3. The level of technology of Romeo requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector.

  • Page 7: Product Specifications

    Italiano . Product specifications Technical characteristics Power supply 90-240 V, auto-sensing, 50-60 Hz Romeo 600 maximum power 170 W consumption 200 W (T/D versions) Romeo 700 maximum power 230 W (VariWhite) consumption 350 W (FullSpectrum version) Power factor Cosϕ > 0.95 3.200 K (Tungsten) or 5.600 K (Daylight)
  • Page 8 Italiano Back panel description DMX Out DMX In Display Intensity / Selector Knob Plus button Minus button PowerCon TRUE1 Top In Enter button PowerCon TRUE1 Top Out Menu button...

  • Page 9: Installation

    Installation Mechanical installation With Romeo will be possible to give new life to your projector. N.B. to know how to mount the Kit on the Robert Juliat please follow the instructions that you can see in the VIDEO received by us.

  • Page 10: Powering Up

    -40°C + 180°C, Coemar cod. CV5311). Connection to mains power Romeo equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (115 V) fixtures.

  • Page 11: Control Signal Connections

    The digital control signal is transmitted to the projector via a two pole cable screened in ac- cording to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of Romeo labelled DMX512 IN e OUT.

  • Page 12: Turning The Romeo On

    When powered up initially, each projector will show “A001”, which indicates that the fixture will start responding from the first DMX channel; Romeo also uses 5 DMX channels, which means that it will respond to the commands from channel 1 to channel 5 of your DMX 512 controller.

  • Page 13: Dmx Chart Fixed White Version

    Italiano 8. DMX chart Fixed White version DMX modes Fixed White version channels channels channel ↓ Master Dimmer Master Dimmer Spare Channel Dimmer Fine Strobe Special Function...

  • Page 14: Dmx Chart 5 And 1 Channels

    Italiano DMX Chart 5 and 1 channels channel type of function effect decimal percentage control adjust luminous output 1 master dimmer proportional 0 - 255 0% - 100% intensity from 0 to 100% spare channel step no effect 0 - 255 0% - 100% dimmer fine proportional...

  • Page 15: Dmx Chart Variwhite Version

    Italiano 9. DMX chart VariWhite version DMX modes VariWhite version Sunrise 2 (MK1) channels channels channels channel mode mode channels channels ↓ Master Master Master Master Warm Master Master Dimmer Dimmer Dimmer Dimmer White Led Dimmer Dimmer Warm Dimmer White Dimmer White Dimmer...

  • Page 16: Dmx Chart 5 Channels

    Italiano DMX Chart 5 channels type of channel function effect decimal percentage control master adjust luminous output intensity proportional 0 - 255 0% - 100% dimmer from 0 to 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% step 2.700 K...

  • Page 17: Dmx Chart 2 And 1 Channels

    Italiano DMX Chart 2/1 channels channel type of function effect decimal percentage control master adjust luminous output intensity proportional 0 - 255 0% - 100% dimmer from 0 to 100% white tone proportional proportional value from 2.700 K to 6.000 K 0 - 255 0% - 100% DMX Chart Sunrise mode...

  • Page 18: Dmx Chart Raw Mode

    Italiano DMX Chart Raw mode type of channel function effect decimal percentage control warm white adjust luminous output intensity of warm white proportional 0 - 255 0% - 100% led from 0 to 100% warm white proportional warm white led fine control 16 bit 0 - 255 0% - 100% led fine...
  • Page 19 Italiano 10. DMX chart FullSpectrum version 10.1 DMX modes FullSpectrum version Studio fine RGB Sunrise channels channels channels channel mode mode mode mode ↓ Master Master Master Master Master Master Master Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer White Dimmer Dimmer Dimmer Tone...
  • Page 20 Italiano 10.2 DMX Chart 16, 7, 1 channels channel type of function effect decimal percentage 16 7 1 control 1 1 1 master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% proportional control of the color 2 2 - proportional 0 - 255...
  • Page 21 Italiano no effect 0 - 9 0% - 4% COR01 - GELS RED 1 10 - 34 4% - 13% COR02 - GELS RED 2 35 - 59 14% - 23% COR03 - GELS RED 3 60 - 84 24% - 33% COR04 - GELS RED 4 85 - 109 33% - 43% red tone...
  • Page 22 Italiano step no effect exalts the green color in the mixing and proportional - 127 0% - 50% diminishes the presence of magenta green step no effect saturation diminishes the presence of green in the mixing proportional 129 - 254 51% - 99% and exalts the magenta color step no effect...
  • Page 23 Italiano 10.3 DMX Chart Studio mode type of channel function effect decimal percentage control master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% step 2.700 K 0 - 15 0% - 6% proportional proportional value from 2.700 K to 3.200 K 16 - 30...
  • Page 24 Italiano 10.4 DMX Chart RGB mode type of channel function effect decimal percentage control master proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% dimmer dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% proportional control of the color proportional...
  • Page 25 Italiano park 0 - 9 0% - 4% no effect 10 - 84 4% - 33% step fan at SILENT mode 85 - 96 33% - 38% fan at STUDIO mode 97 - 108 38% - 42% special fan at AUTO mode 109 - 120 43% - 47% functions proportional...
  • Page 26 Italiano 10.5 DMX Chart fine RGB mode type of channel function effect decimal percentage control master proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% dimmer dimmer fine step fine dimmer control 16 bit 0 - 255 0% - 100% proportional control of the color...
  • Page 27 Italiano park 0 - 9 0% - 4% no effect 10 - 84 4% - 33% step fan at SILENT mode 85 - 96 33% - 38% fan at STUDIO mode 97 - 108 38% - 42% special fan at AUTO mode 109 - 120 43% - 47% functions proportional...
  • Page 28 Italiano 10.6 DMX Chart SUNRISE mode type of channel function effect decimal percentage control master proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% dimmer dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% 2.700 K proportional value from 2.700 K to 4000 K...
  • Page 29 Italiano Setup via RDM 11.1 Quick guide to menu The Fixture required RDM (Remote Device Management) to set up fixtures. Using an RDM compliant DMX controller, you can communicate with all the fixtures on a data link without needing to connect to each fixture individually.
  • Page 30 ERROR DESCRIPTION SOLUTION MEMORY Memory Reading Error Perform A “Factory Reset” HW MEMORY Memory Hardware Error Contact Coemar The Personality Dimension DMX ADDR DMX Addressing Error Exceeds 512 Channels NTC ERROR Temperature Sensor Disconnected Check Wiring NTC Led Short-Circuited Temperature...

  • Page 31: Display Panel Functions

    ENTER button to access to any other function. By suitably using all the functions of Romeo, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;...

  • Page 32: Fixed White Version

    Italiano . Fixed White version menu 13.1 Main functions INTENSITY: intensity Allows to adjust the luminous output intensity from 0 to 255 (d: decimal units). STROBE: strobe Manually sets the strobe DMX channel. SETTINGS: settings Manually sets various settings of the projector. MEASURES: measures Check all the measures and...
  • Page 33 Italiano 13.2 Settings DIMMING CURVE: dimming curve exponential It allows the selection of exponential different dimmer curves: halogen exponential (default), halogen, standard, linear and standard logarithmic. linear logarithmic SMOOTH: smooth Allows to change the speed Fast of every dimming curve between FAST (standard), SLOW, VERY SLOW.
  • Page 34 Italiano PERSONALITIES: PERSONALITIES 5 CH It is possible to choose 5 CH between 5 channels or 1 CH 1 channel, in which the projector will operate. LOSS SIGNAL: loss signal MAINTAIN It is possible to choose maintain between “maintain” (this BLACKOUT function allows to keep the settings even in case...
  • Page 35 Italiano 13.3 Display REVERSE: reverse It allows to turn by 180° the reading of the display. When you chose “ON” wait the turn of the display without clicking. AUTO LOCK: AUTO LOCK Locks the keys. OFF: Auto Lock function in OFF HOLD HOLD: Press any key for 3 seconds to unlock.
  • Page 36 Italiano 13.4 Measures TEMPERATURES: TEMPERATURES Shows the current ° F temperature values of MIN NOW MAX the fixture. LED: -°C -°C -°C LED: shows the LED module temperature. BOARD: -°C -°C -°C BOARD: shows the electronic board temperature. TEMPERATURES TEMP histories HISTORIES: °...
  • Page 37 Italiano LED STATUS: led status Shows the percentage value of the LED status. LED PROTECTION: led protection Percentage of the maximum power in order to keep the projector in temperature. PSU VOLTAGE: psu voltage Shows the power supply voltage. LIFETIME: lifetime Shows the hour counter LED:...
  • Page 38 Italiano . VariWhite version menu 14.1 Main functions INTENSITY: intensity Allows to adjust the luminous output intensity from 0 to 255 (d: decimal units). CCT: 2700 k This channel offers a preset library of 2700 k various white CCT 2800 k with a range that goes from 2.700 K 2900 k...
  • Page 39 Italiano STROBE: strobe Manually sets the strobe DMX channel. SETTINGS: settings Manually sets various settings of the projector. MEASURES: measures Check all the measures and product status. FACTORY RESET: factory reset Allows to return to sure? the factory settings: Light Intensity: 80 CCT: 4.400 K DMX Channels: 5 Fan: Auto mode...
  • Page 40 Italiano 14.2 Settings DIMMING CURVE: dimming curve exponential It allows the selection of different dimmer curves: exponential exponential (default), halogen halogen, standard, linear and logarithmic. standard linear logarithmic SMOOTH: smooth Allows to change the speed of every dimming fast curve between FAST (standard), SLOW, VERY SLOW.
  • Page 41 Italiano PERSONALITIES: PERSONALITIES 5 CH It is possible to choose 5 CH between 5, SUNRISE, RAW, 1 or 2 modalities, SUNRISE in which the projector will operate. 1 CH 2 CH LOSS SIGNAL: loss signal MAINTAIN It is possible to choose between “maintain”...
  • Page 42 Italiano 14.3 Display REVERSE: reverse It allows to turn by 180° the reading of the display. When you chose “ON” wait the turn of the display without clicking. AUTO LOCK: AUTO LOCK Locks the keys. OFF: Auto Lock function in OFF HOLD HOLD: Press any key for 3 seconds to...
  • Page 43 Italiano 14.4 Measures TEMPERATURES: TEMPERATURES Shows the current ° F MIN NOW MAX temperature values of the fixture. LED: -°C -°C -°C LED: shows the LED module BOARD: -°C -°C -°C temperature. BOARD: shows the electronic board temperature. TEMPERATURES TEMP histories HISTORIES: °...
  • Page 44 Italiano LED STATUS: led status w: -% Shows the c: -% percentage value of the LED status. LED PROTECTION: led protection Percentage of the maximum power in order to keep the projector in temperature. PSU VOLTAGE: psu voltage Shows the power supply voltage.

  • Page 45: Main Functions Menu

    Italiano . FullSpectrum version menu 15.1 Main functions menu INTENSITY: intensity Allows to adjust the luminous output intensity from 0 to 255 (d: decimal units). CCT: 2700 k This channel offers a preset library of various 2700 k white CCT with a range 3000 k that goes from 2.700 K and up to 20.000 K,...
  • Page 46 Italiano GREEN-MAGENTA DEV: green-magenta dev Allows to adjust the luminous output intensity from 0 to 255 (d: decimal units). COLOR GELS: colors gels All the gels presets will appear under this menu. CUSTOM GELS: custom gels reset all gels This settings allows you to create your own custom gel by mixing the six color at your will.
  • Page 47 Italiano SETTINGS: settings settings Manually sets various settings of the projector (section SETTINGS). MEASURES: measures Check all the measures and product status (section MEASURES). FACTORY RESET: factory reset sure? Allows to return to the factory settings: Light Intensity: 80 DMX Channels: 16 Fan: Auto mode.

  • Page 48: Settings

    Italiano 15.2 Settings DIMMING CURVE: dimming curve exponential It allows the selection of different dimmer curves: exponential exponential (default), halogen halogen, standard, linear and logarithmic. standard linear logarithmic DIM TO WARM: dim to warm Inserts a softening of the dimmer dynamics and red shift.

  • Page 49: Display

    Italiano PERSONALITIES: PERSONALITIES 16 CH It is possible to choose between 16, STUDIO, 16 CH RGB, RGB FINE, studio SUNRISE, 1 or 7 modalities, in which the projector will operate. rgb fine SUNRISE 1 CH 7 CH It is possible to choose loss signal MAINTAIN between “maintain”...
  • Page 50 Italiano 15.3 Display REVERSE: reverse It allows to turn by 180° the reading of the display. When you chose “ON” wait the turn of the display without clicking. Locks the keys. AUTO LOCK Auto Lock function in Press any key for 3 HOLD seconds to unlock.
  • Page 51 Italiano 15.4 Effects EFFECTS: effects no effect It is possible to choose between the following no effect effects: color wheel COLOR WHEEL: replicates the color wheel by applying a fade effect between colors (Red, Yellow, rgb random Green, Cyan, Blue, Magenta);...
  • Page 52 Italiano PARAMETER EFFECT: PARAMETER effect SPEED It allows to change the parameter of the effect SPEED selected. POWER SPEED: increases the speed of all effects; POWER: increases the intensity of all effects; N.B. When you select a parameter effect it works for all effects and not individually.
  • Page 53 Italiano TEMPERATURES: TEMPERATURES Shows the current ° F MIN NOW MAX temperature values of the fixture. LED: -°C -°C -°C LED: shows the LED module temperature. BOARD: -°C -°C -°C BOARD: shows the electronic board temperature. TEMPERATURES TEMP histories HISTORIES: °...
  • Page 54 Italiano LED STATUS: led status Shows the percentage value of the LED status. LED PROTECTION: led protection Percentage of the maximum power in order to keep the projector in temperature. PSU VOLTAGE: psu voltage Shows the power supply voltage. LIFETIME: lifetime Shows the hour counter of the fixture.
  • Page 55 Italiano . Wi-Fi Menu (OPTIONAL) 16.1 Wi-Fi WIFI ENABLE: WIFI ENABLE It allows enable all the Wi-Fi functions WIFI UNLINK: WIFI unlink sure? This function is used to disconnect the projector from the wireless transmitter. WIFI ADVANCE: WIFI advance wifi WIFI BACKUP: Activate backup Backup mode (Off / On)

  • Page 56: Special Functions Of The Fixture

    17.12 Error messages If a malfunction occurs, Romeo has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center.

  • Page 57: Spare Parts

    Italiano Spare parts All Romeo’s spare parts are available from your Coemar service centers. Specifying in detail the projector model and the replacement part requested, will help the service center to serve you in the best way. Maintenance 19.1 Periodic cleaning Cleaning of the unit Use a soft brush or a common vacuum cleaner or a source of compressed air for removing dust.
  • Page 58 Italiano User notes ........................................................................................................................................................................................................................
  • Page 59 Italiano Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 60 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
