EVEXUSB32 Product Manual
USB 3.2 Extender Over
HDBaseT with USB-C
Safety Instructions
For optimum performance and safety, please read these instructions carefully before use and keep this manual for future
reference. Please have the part number, serial number, and invoice available when requesting support.
• To prevent electric shock, please ensure that all apparatus is properly grounded.
• Place the device in a well-ventilated area, do not block any ventilation openings.
• Do not expose this apparatus to rain or place it near water. Any liquid that goes into the apparatus may cause a failure, fire, or
electric shock.
• Do not place the device on an uneven or unstable surface. The device may fall resulting in a malfunction.
• Never insert anything metallic into the open parts of this apparatus. This may cause a danger of electric shock.
• If a third-party power supply is used, please ensure that the power supply specifications meet the product requirements.
Introduction

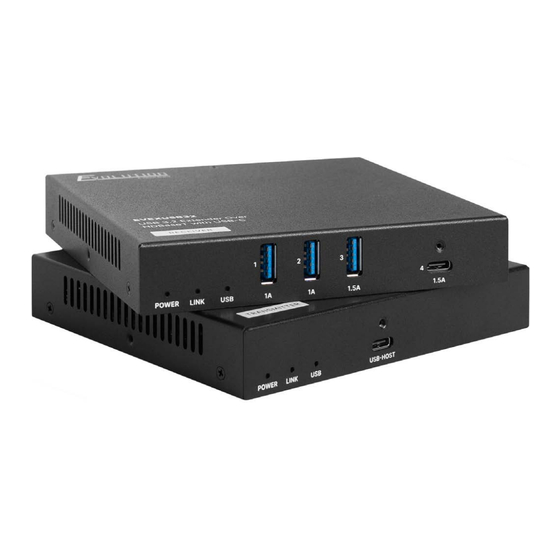

The EVEXUSB32 is a complete USB 3.2 extender that transmits and controls data signals up to 328ft (100m) over a single Cat6A
cable. It supports up to four USB 3.2 devices, such as webcams, keyboards, mice, and storage devices using USB-A and USB-C
connections. Power over HDBaseT (PoH) technology allows for a single power supply on either end while two 1.5A ports (USB-A &
USB-C) and two 1A ports (USB-A) provide power to the connected devices. With its reliable transmission and versatile connectivity
options, the EVEXUSB32 supports corporate, medical, security, educational, and other applications.
Product features:
• Supports USB 3.2 Gen 1x1 standards
• 5Gbps data transfer up to 328ft (100m) over a single Cat6A cable or up to 164ft/50m over a single Cat6 cable
• Backwards compatible with USB 3.0, 2.0, and 1.1 standards
• One USB-C port on the transmitter (host) unit
• One USB-C port and three USB-A ports on the receiver (device) unit
• Features VBUS, FSYNC, and RS232 pass-through
• Power over HDBaseT (PoH) technology allows for a single power supply on either end
• Includes two 1.5A ports (USB-A & USB-C) and two 1A (USB-A) ports on the receiver (device) unit
• Features the HDBaseT-USB3 standard for high performance and reliable connectivity with low power consumption
EVEXUSB32 Product Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVOLUTION EVEXUSB32 and is the answer not in the manual?

Questions and answers

Related Manuals for Vanco EVOLUTION EVEXUSB32

Summary of Contents for Vanco EVOLUTION EVEXUSB32

  • Page 1 EVEXUSB32 Product Manual USB 3.2 Extender Over HDBaseT with USB-C Safety Instructions For optimum performance and safety, please read these instructions carefully before use and keep this manual for future reference. Please have the part number, serial number, and invoice available when requesting support. •...

  • Page 2: Specifications

    Package contents: (1) Transmitter (host) unit (1) Receiver (device) unit (1) DC 20V/3A power adapter and cable (2) Male phoenix connectors (3.5mm, 4-pin) (4) Mounting brackets and screws (2) 4-pin screwdown terminal connectors Specifications Technical 1 x USB HOST (USB Type-C); 1 x RS232 & FSYNC (3.5mm, 4-Pin Phoenix Connector); 1 x Transmitter HDBaseT OUT (RJ45);...

  • Page 3: Panel Descriptions

    Panel Descriptions Please reference the panel descriptions below for icon information and port descriptions. A detailed connection diagram illustrating the EVEXUSB32 in use is shown on the following page. Transmitter (Host) Unit Receiver (Device) Unit Transmitter (Host) Unit Receiver (Device) Unit Emits solid when power is applied to Emits solid when power is applied to either the transmitter or receiver when...

  • Page 4: Connection Diagram

    Connection Diagram USB-C Cable USB-A Cable USB-C Cable Transmitter Unit Receiver Unit Cat6/6A Cable Connect & Operate 1. Connect the transmitting unit to the USB C host device such as a computer or security video recorder. 2. Connect up to four USB devices such as a mouse, keyboard, webcam, microphone, touchscreen, USB flash drive, or other USB peripheral to the USB ports (3 USB-A and 1 USB-C) on the receiving unit.

  • Page 5: Limited Warranty

    10 years from the date of purchase. Should this product, in Vanco’ s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge.
