Summary of Contents for Vanco Evolution EVEX2007

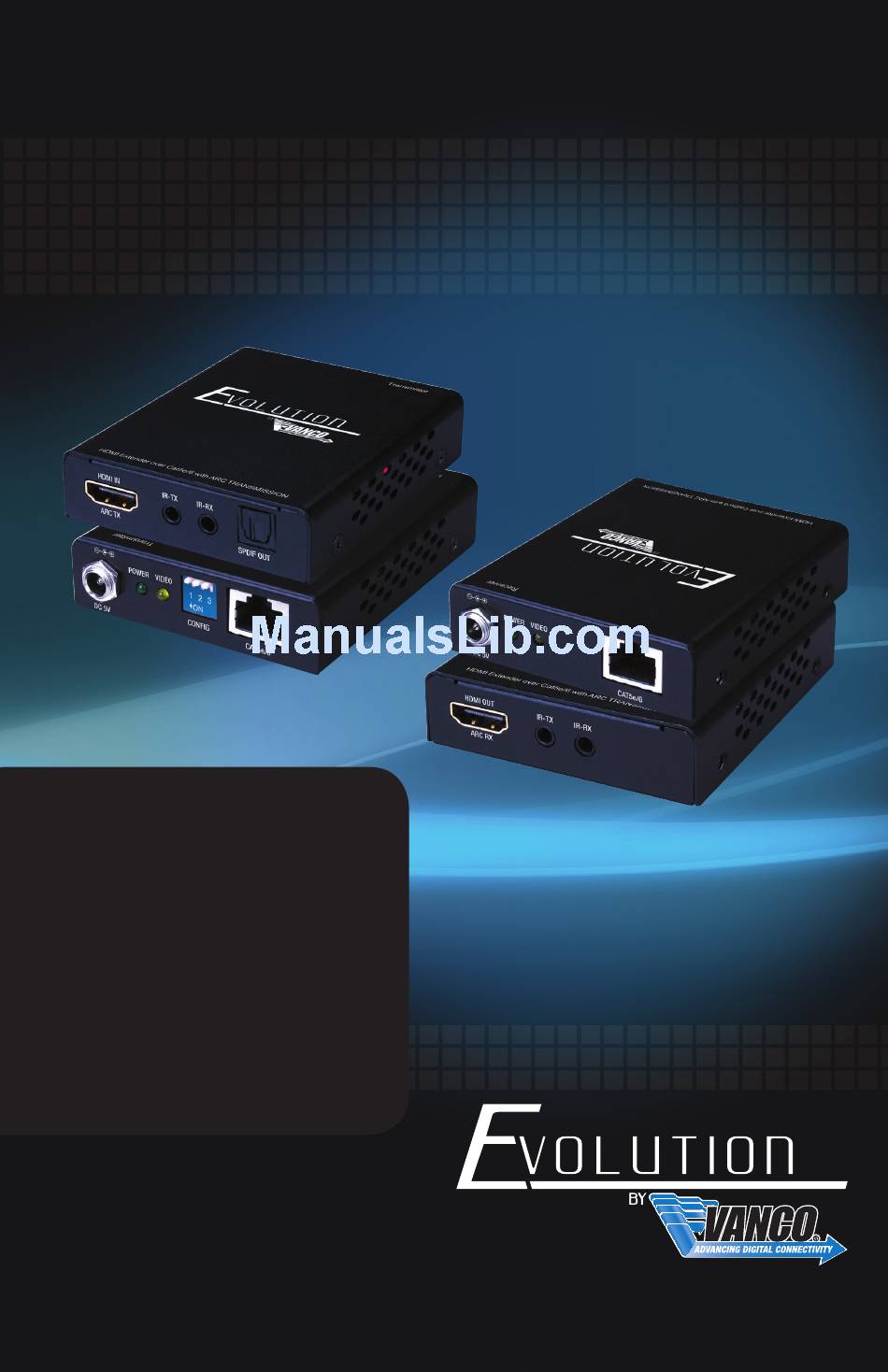

- Page 1 HDMI® E X TE N DER over single Cat5e/Cat6 Cable with ARC Vanco Part Number EVEX2007 HDMI® Extender over Single Category 5e/6 Cable with ARC www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 FEATURES INTRODUCTION The Evolution EVEX2007 HDMI Extender with ARC transmits HDMI video, audio and control signals, over a single Cat5e/6/7 up to 164ft/50m. It also supports bi-directional IR control, EDID call back, CEC pass through and ARC (audio return channel).
-
Page 4: Specifications
SPECIFICATIONS Interface ..............Transmitter: HDMI input, IR output (3.5mm), IR input (3.5mm),RJ45 Ethernet interface, 5V DC in, Toslink port, 1 audio output config switch. Receiver: HDMI output, IR output (3.5mm), IR input (3.5mm),RJ45 Ethernet interface, 5V DC in Dimension ..............(L x W x H): 78.4 x 67 x 19 mm Net weight ............... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Transmitting Unit Receiving Unit 11 12 1. HDMI Input port, connect to Video source 10. 5V DC power input 2. IR-TX, IR blaster output 11. Power on indicator 3. IR-RX, IR receiver input 12. Video link indicator 4. SPDIF Toslink optical output 13. -
Page 6: Connection Diagram
CONNECTION DIAGRAM CONNECT AND OPERATE 1. Set the dip switches according to the mode or feature you would like to achieve. 2. Connect a source such as a Bluray player, game console, A/V receiver, Cable/Satellite Receiver, etc. to the HDMI input on the transmitter. 3. - Page 7 IR PASS-THROUGH The bi-directional IR system allows you to control the source that is connected to the extender unit, from the display; or the display from the source, not simultaneously. There are two important things to note when setting up the IR system: 1.
- Page 8 IR RECEIVER (RX) • To control the source: Plug IR Receiver into IR RX port of receiver unit (EVEX2006-RX); place receiver at or near display. • To control the display: Plug IR Receiver into IR RX port of transmitter unit (EVEX2006-TX); place receiver in position where it is able to receive remote signals.
- Page 9 NOTICE 1. Vanco HDMI and Cat5e/6 cables are strongly recommended for use with this product to ensure best results. 2. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets.
-
Page 10: Troubleshooting
4. If you are still encountering issues, attempt the “hot-plug concept. With all of the HDMI cables disconnected, turn on the source and plug in the HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. -
Page 11: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
