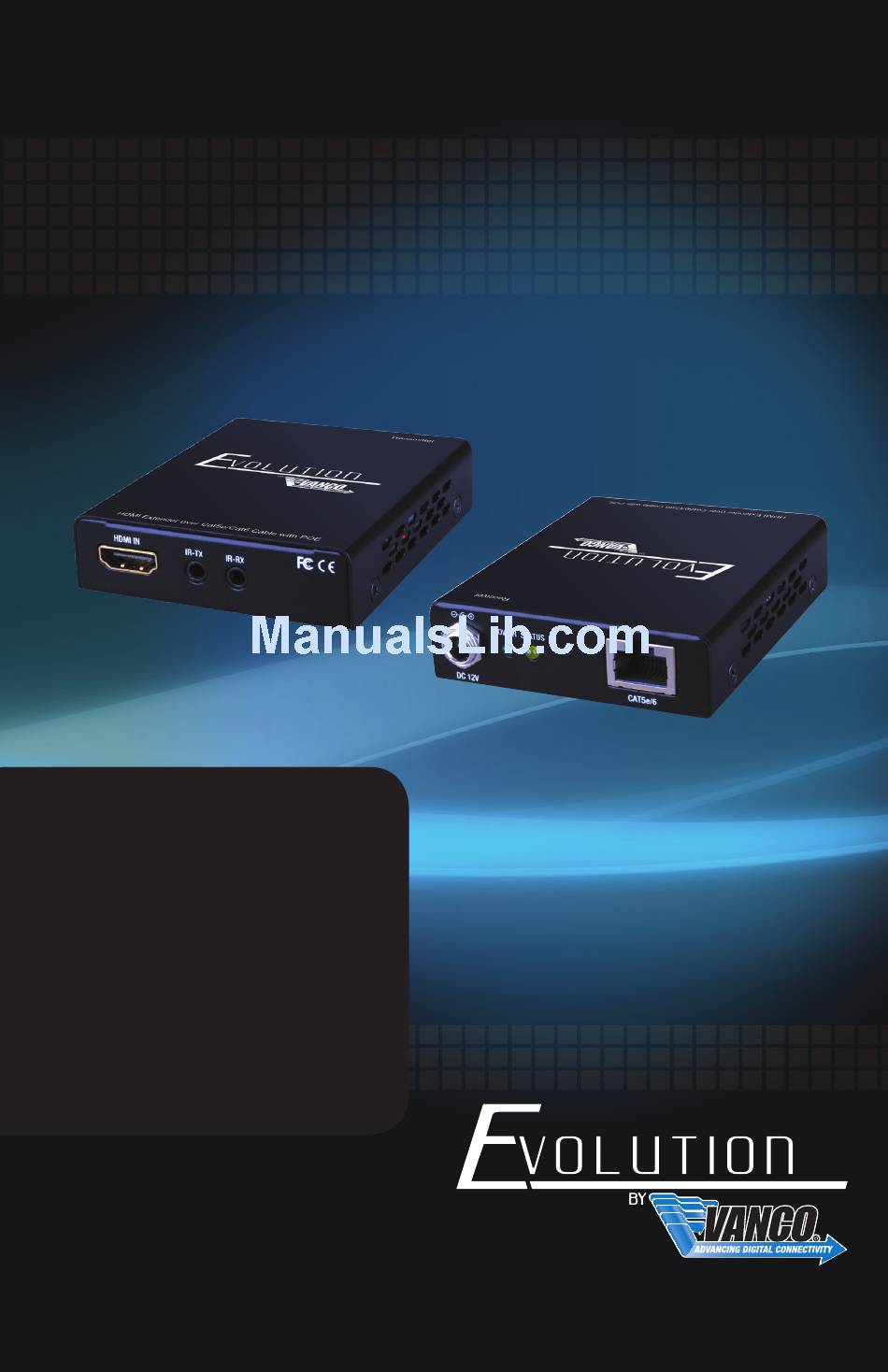

- Page 1 HDMI® E X TE N DER over single Cat5e/Cat6 Cable Vanco Part Number EVEX2006 HDMI® Extender over Single Category 5e/6 Cable with POE www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 INTRODUCTION The Evolution by Vanco EVEX2006 HDMI Extender over Single Cat5e/6 with Bi-directional IR, auto EDID/EQ, and PoE extends high definition video and audio signals, IR, and power at a distance of up to 164ft/50m over a single Cat5e/6 cable. Power over Ethernet (PoE) Technology transmits power over Cat5e/6, allowing either the Transmitter or Receiver to be powered without the use of a power supply.
-
Page 4: Specifications
Power consumption ............ 3.5 Watts TX, 2.5 Watts RX Operation temperature ..........32-104 degrees F Storage temperature..........-4 - 140 degrees F Relative humidity ............20-90% RH (no condensation) PACKAGE CONTENTS • EVEX2006 (TX & RX) • (2) IR Blasters (TX) • (2) IR Receivers (RX) •... -
Page 5: Panel Descriptions
14. RJ45 (HDMI Signal In) - Plug in the Cat-5/5e/6 cable that is linked to the transmitting unit EDID The EVEX2006 is equipped with EDID management, however there is no need to adjust any dip switches or dials, the unit automatically reads the EDID from the display and save it internally. This feature was created for the installer in mind, for a plug and play installation 800.626.6445... -
Page 6: Connection Diagram
CONNECTION DIAGRAM CONNECT AND OPERATE 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the Transmitting unit. 2. Connect a display such as an HDTV or HD Projector to the HDMI output on the Receiving unit. 3. - Page 7 To control the source: Plug IR Blaster into IR TX port of transmitter unit (EVEX2006-TX); place blaster in front of the IR eye of the source. To control the display: Plug IR Blaster into IR TX port of receiver unit (EVEX2006-RX); place blaster in front of the IR eye of the display.
- Page 8 IR RECEIVER (RX) • To control the source: Plug IR Receiver into IR RX port of receiver unit (EVEX2006-RX); place receiver at or near display. • To control the display: Plug IR Receiver into IR RX port of transmitter unit (EVEX2006-TX); place receiver in position where it is able to receive remote signals.
- Page 9 NOTICE 1. Vanco HDMI and Cat5e/6 cables are strongly recommended for use with this product to ensure best results. 2. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets.
-
Page 10: Troubleshooting
4. If you are still encountering issues, attempt the “hot-plug concept. With all of the HDMI cables disconnected, turn on the source and plug in the HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. -
Page 11: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
