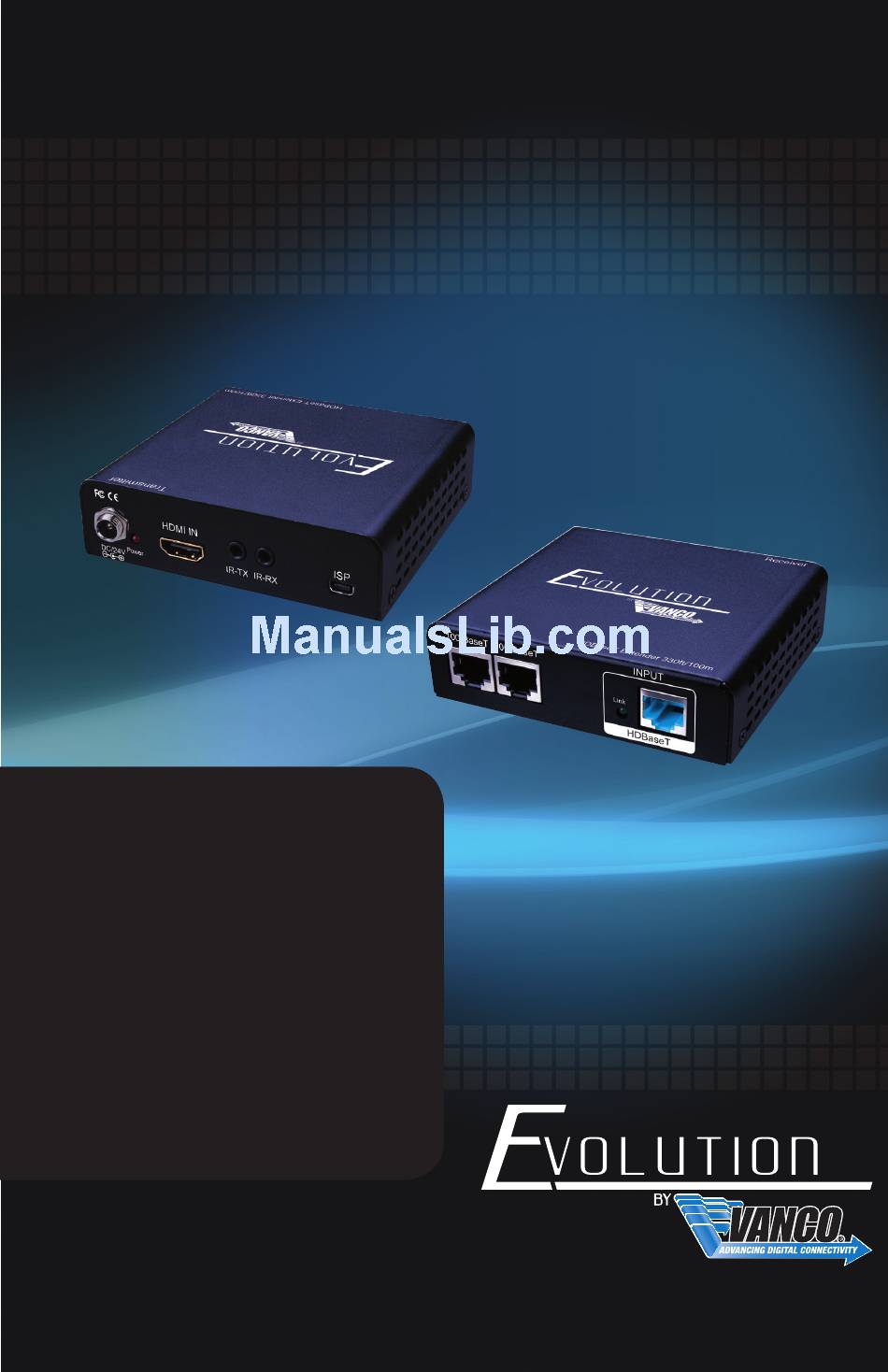

- Page 1 HDBASET™ E X TE N DER (330 ft./ 100m) over single Cat5e/Cat6 Cable Vanco Part Number EVEX2003 HDBaseT™ Extender (330ft/100m) www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 Cat5e/6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or Dolby TrueHD audio, and HDCP is supported and compatible with the EVEX2003. In addition, EVEX2003 is also equipped with bi-directional IR pass-through which allows for source or display control.
- Page 4 HDBaseT Extender 330ft/100m Part # EVEX2003 • Features HDBaseT Technology, optimized for whole-home or commercial distribution of uncompressed high-definition signals at twice the distance of HDMI cables without degradation • HDBaseT Extender can connect uncompressed full HD digital video, audio, 100BaseT Ethernet, and various control signals through a single 330ft/100m Cat5e/Cat6 cable •...
-
Page 5: Specifications
SPECIFICATIONS TECHNICAL SPECS HDMI Compliance ............HDMI Deep Color, Full 3D 4K2K @ 30 HDCP Compliance ............Yes Video Bandwidth ............Single link 340 MHz (10.2 Gbps) Video Support ............480i/480p/720p/1080i/1080p @60/2160p@30 HDMI over UTP ............1080p@60 90-100m (297-330 ft) Cat5e Audio Support ............ -
Page 6: Package Contents
PACKAGE CONTENTS • EVEX2003 (TX and RX) • IR Blaster (TX) • IR Receiver (RX) • (1) DC 24V in line power supply • Rack-mounting ear set • Product Manual PANEL DESCRIPTIONS Transmitting Unit Receiving Unit 10 11 17 18 1. -
Page 7: Connection Diagram
CONNECTION DIAGRAM CONNECT AND OPERATE 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the Transmitting unit. 2. Connect a display such as an HDTV or HD Projector to the HDMI output on the Receiving unit. -
Page 8: Ir Pass-Through
To control the source: Plug IR Blaster into IR TX port of transmitter unit (EVEX2003-TX); place blaster in front of the IR eye of the source. To control the display: Plug IR Blaster into IR TX port of receiver unit (EVEX2003-RX); place blaster in front of the IR eye of the display. - Page 9 NOTICE 1. Vanco HDMI and Cat5e/6 cables are strongly recommended for use with this product to ensure best results. 2. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets.
-
Page 10: Troubleshooting
HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. This activates all of the devices in corresponding order and results in a signal being plugged into a device that is on and will attempt to connect the signal. -
Page 11: Limited Warranty
Vanco’s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. This warranty does not apply to those products which have been damaged due to accident, unauthorized alterations, improper repair, modifications, inadequate maintenance and care, or use in any manner for which the product was not originally intended. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
