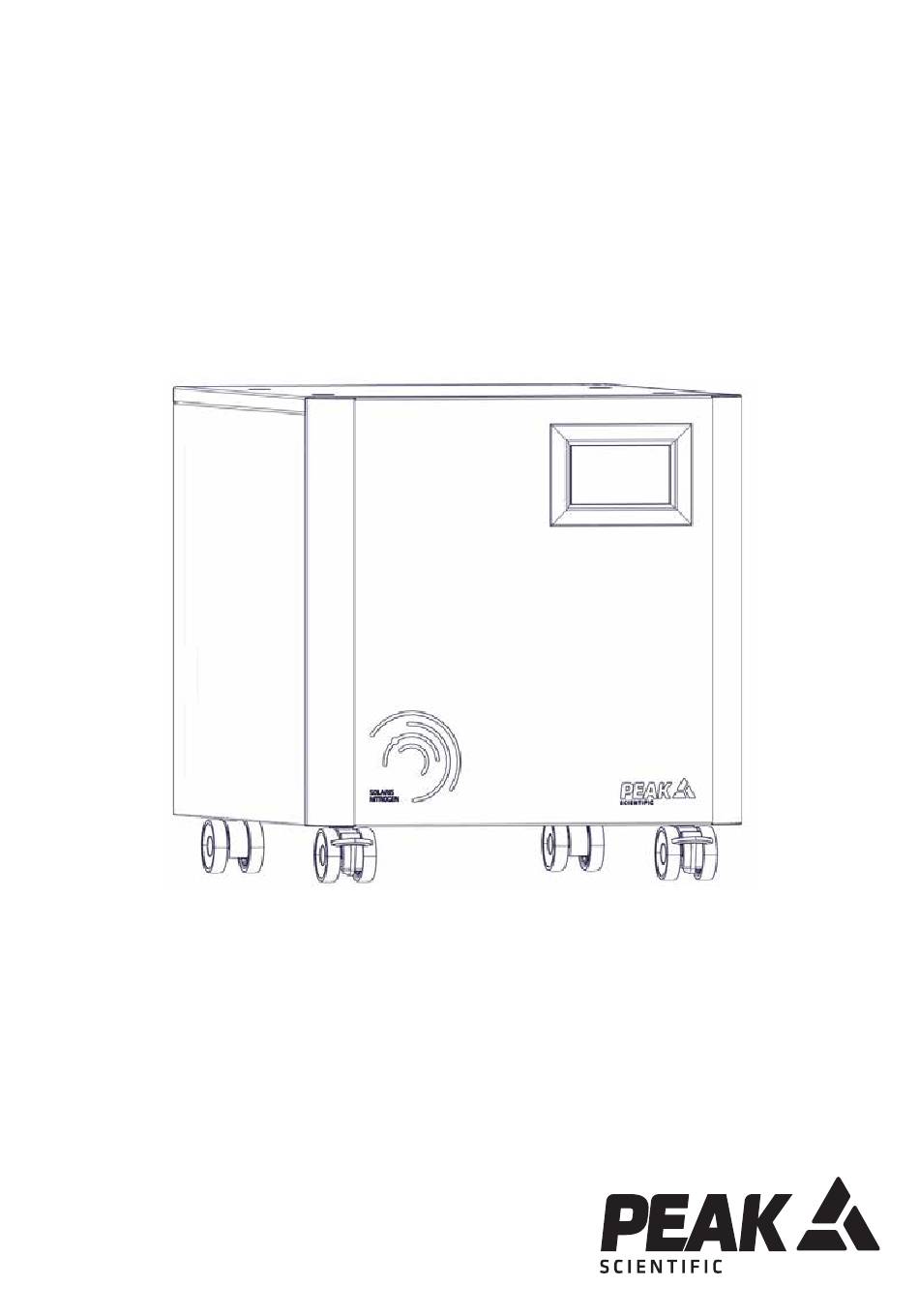

- Page 1 Solaris 1010A User Manual Copyright © Peak Scientific Instruments Ltd 2024 — Solaris 1010A User Manual Rev 3 RSID 5187 EN —13/08/2024...
-
Page 2: Table Of Contents
Korea Communications Commission (KCC) statement Technical Specification Unpacking Fittings Kit Contents Unpacking Instructions Installation Generator Environment Generator Overview Solaris 1010A General Dimensions Solaris 1010A Rear Connections Electrical Connection Connecting to the application Tubing Lengths Product Registration Normal Operation On Demand Gas... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Warranties And Liabilities
Warranties and Liabilities Visit: www.peakscientific.com/warranty-statement/ Page 4... -
Page 5: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 6: Eu Declaration Of Conformity
EN 61326-1: 2021 Electrical Equipment for Measurement, Control and Laboratory Use – EMC Requirements. (Class A) • Restriction on the use of certain hazardous substances in electronic equipment (RoHS) Directive 2011/65/EU as amended by EU 2015/863. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 7: Uk Declaration Of Conformity
– EMC Requirements. (Class A) • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 / 3032) as amended. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 8: Weee Compliance Statement
WEEE Compliance Statement The Waste Electrical and Electronic Equipment (WEEE) Regulations SI 2013 No 3113 and or the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU apply to all electrical and electronic equipment placed on the market in the UK and EU covered by the scope of regulations which can be found in the Government Guidance Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe. -
Page 9: Csa Compliance Statement
CSA Compliance Statement CSA Group (Canadian Standards Authority) is a Nationally Recognised Testing Laboratory (NRTL), headquartered in Toronto Canada. They are authorised to evaluate product to both their own and Underwriters Laboratory (UL) standards and certify the product to be in compliance to the relevant standards. Peak products are certified to the current in force revision of the following standards in order to cover both Canadian and United States requirements for “Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory use,... -
Page 10: European Union (Eu) And United Kingdom (Uk) Class A Compliance Statement
EMC Class A Compliance Statements European Union (EU) and United Kingdom (UK) Class A Compliance statement This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. FCC Class A Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 11: Technical Specification
Technical Specification Solaris 1010A Environment Solaris 1010A Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 2000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) Generator Outlets Maximum Output Pressure 100 psi / 6.89 bar... -
Page 12: Unpacking
Check ‘SHOCKWATCH’ label for signs of rough handling prior to unpacking. Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. -
Page 13: Fittings Kit Contents
Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. Teflon Tubing 1/4” x 3m 2. PE Tubing 6mm x 3m 3. -
Page 14: Installation
Installation Generator Environment The generator is designed for indoor use only. It should be installed adjacent to the application(s) it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 15: Generator Overview
Generator Overview Solaris 1010A General Dimensions 343 mm / 13.50” 417mm / 16.4” 540mm/21.3” The generator must always be placed on a flat, level surface with castors locked in position. Failure to do so will affect the performance of the unit. -
Page 16: Solaris 1010A Rear Connections
Solaris 1010A Rear Connections Power Switch & Power Inlet Nitrogen Outlet Drain Outlet Ensure outlets are connected to correct sources & applications. Connections should only be carried out by trained personnel. CAUTION Generator must be switched off, unplugged and castors locked in position prior to any cleaning or maintenance operations. -
Page 17: Electrical Connection
Electrical Connection Connect the generator into an appropriate electricity supply, between either 120V or 220V-240V. Refer to the generator serial plate for input specification and ensure your supply matches the requirements. If an appropriate mains power cord is not supplied or a substitute one is used then ensure that all components of it - the plug, cord and connector - have adequate ratings for the generator and appropriate approvals for the country of use. -
Page 18: Connecting To The Application
⁄ ” I/D). Tubing and fittings not supplied in the fittings kit. > 40 metres: Please contact Peak Scientific with the relevant distance and we will calculate the flow resistance and the tubing size required. A combination of ¼”/ ⁄... -
Page 19: Product Registration
Apple App Store. A PIN code may also be requested by phoning the Peak helpdesk. This code is only required on the initial start-up of the unit. Solaris 1010A Registration 1. Press the 'I've got my pin' button on the screen on the front of the generator. - Page 20 4. The unit will then go through initialisation phase. 5. Upon completion of the initialisation phase, the screen will display the below, home screen. Page 20...
-
Page 21: Normal Operation
Unusual Operation If at any time the generator begins to emit excessive noise or vibration, then it should be switched off and you should contact Peak Scientific or the Peak Partner from which the unit has been purchased. Page 21... -
Page 22: Service Screens
Service Screens Service Due Home Screen Warning This is the main home screen when a service is due displaying a yellow service warning. The screen will alternate between the home screen and a full screen warning as shown next. Service Due Warning Screen This is the full screen warning when service is due. -
Page 23: Information Screens
Information Screens System Info Screen Displays System Info. Service Log-in Screen Allows the Peak Approved Engineer access to the Solaris 1010A service menus. Page 23... -
Page 24: Service Requirements
48 months www.peakscientific.com/ordering Kit – 220-240V* *On the 4th annual service of your Solaris 1010A generator, the compressor needs to be replaced, this is contained within the 48 month service kit. Please contact your service provider for more information. Page 24... -
Page 25: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 26: Cleaning
Cleaning clean with a damp cloth, cleaning products including soap should not be used. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator. Under no circumstances should any solvents or abrasive cleaning solutions be used as these can contain fumes that could be harmful to the generator. -
Page 27: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the generator securely. • Ensure that the power socket is turned on. The generator will not switch on and the • Check the fuse in the power cord plug. power switch does not illuminate. - Page 28 Not all warranties are alike and Peak Scientific stand out against other gas suppliers as we offer a comprehensive, quick response, on-site warranty. This means that in the very...
- Page 29 Page 29...
- Page 30 Page 30...
- Page 31 Page 31...
- Page 32 Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact marketing@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2024 — Solaris 1010A User Manual Rev 3 RSID 5187 EN —13/08/2024...
