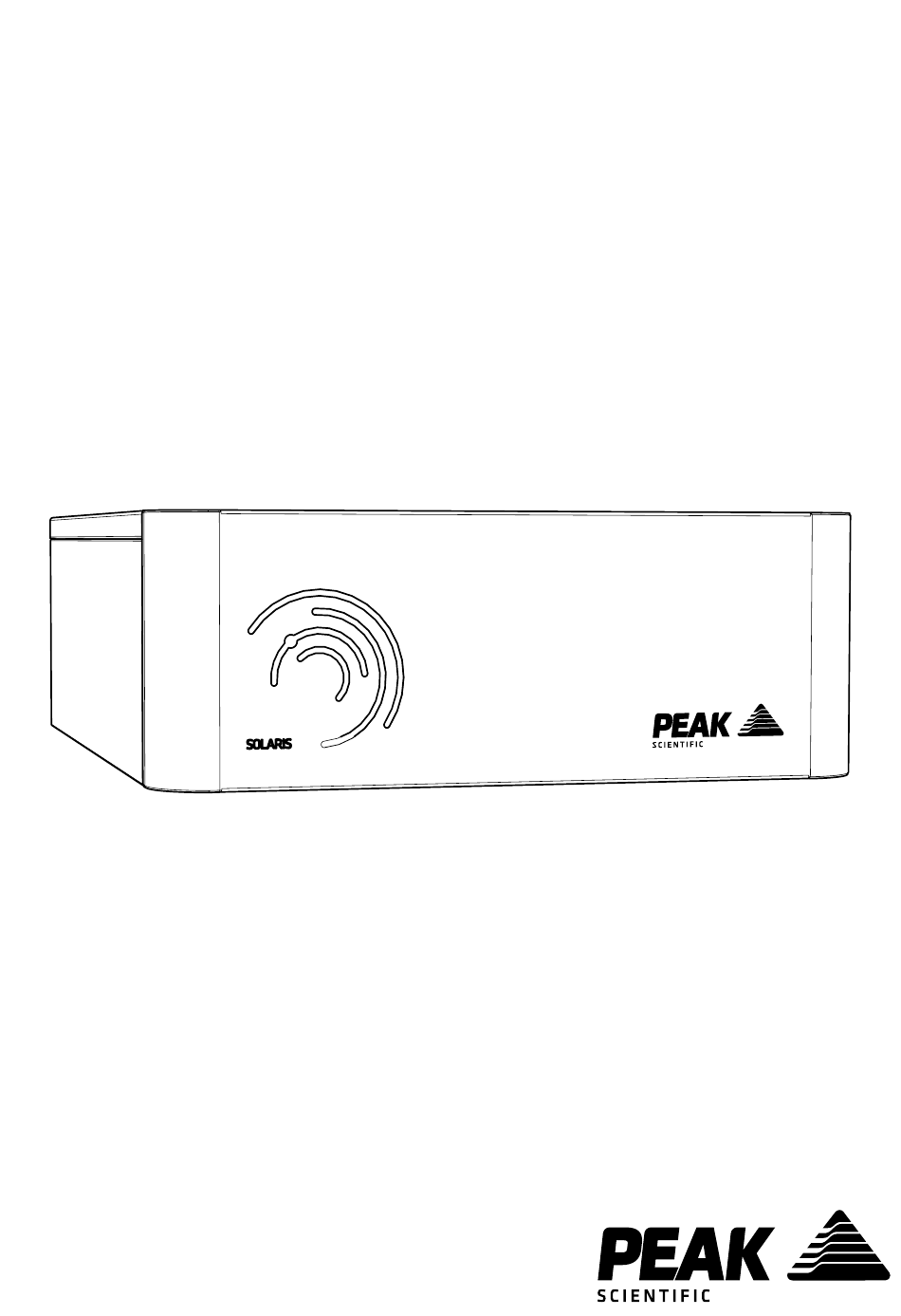

- Page 1 Solaris 10 User Manual Solaris 10 User Manual Rev 4 RSID 1604 PN UM-0014 30/11/21...
-
Page 2: Table Of Contents
Technical Specification Solaris 10 Unpacking Fittings Kit Contents Unpacking Instructions Installation Generator Environment Generator Overview Solaris 10 General Dimensions Solaris 10 Rear Connections Electrical Connection Air Purity Class 1 Particulate Class 4 Water Class 1 Oil Start-Up Sequence On Demand Gas... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Introduction

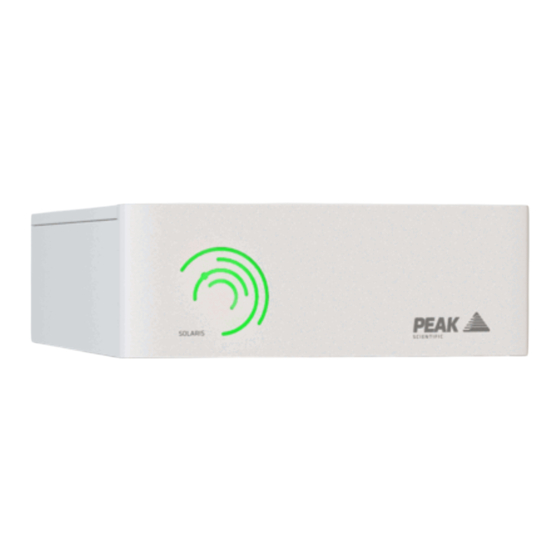

Introduction Peak Scientific's Solaris 10 generator has been engineered and designed to meet the gas delivery requirements for ELSD and Compact Mass Spectrometers. Built in Peak's state of the art ISO:9001 manufacturing facility by Peak's team of highly skilled and experienced gas generator engineers, Solaris can provide up to 10L/min of high purity nitrogen (up to 99.5%). -
Page 5: Warranties And Liabilities
Warranties and Liabilities 1. The Company warrants that it has title to the Goods. 2. Subject to the provisions of this clause the Company warrants that the Goods shall comply in all material respects with any specification referred to in the Order Confirmation (as the same may be amended) and shall, subject thereto, be free from defects in material and workmanship for the lesser of a period of twelve months from the date of delivery or thirteen months from the date of dispatch... -
Page 6: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 7: Declaration Of Conformity
• Restriction on the use of certain hazardous substances in electronic equipment (RoHS) Directive 2011/65/EU as amended by EU 2015/863. • FCC 47 CFR Part 15 class A Unintentional radiators; Conducted and Radiated emissions limits. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... - Page 8 BS61326-1:2013 Electrical Equipment for Measurement , Control and Laboratory Use – EMC Requirements. • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 / 3032) as amended. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn...
- Page 9 WEEE Compliance Statement The Waste Electrical and Electronic Equipment (WEEE) Regulations SI 2013 No 3113 and or the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU apply to all electrical and electronic equipment placed on the market in the UK and EU covered by the scope of regulations which can be found in the Government Guidance Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe.
- Page 10 CSA Compliance Statement CSA Group (Canadian Standards Authority) is a Nationally Recognised Testing Laboratory (NRTL), headquartered in Toronto Canada. They are authorised to evaluate product to both their own and Underwriters Laboratory (UL) standards and certify the product to be in compliance to the relevant standards. Peak products are certified to the current in force revision of the following standards in order to cover both Canadian and United States requirements for “Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory use,...
-
Page 11: Technical Specification
Technical Specification Solaris 10 Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 2000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) Note: Please ensure that the generator is situated in a well ventilated environment. -
Page 12: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking. Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator onto the bench. -
Page 13: Fittings Kit Contents
Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. Teflon Tubing x 3m 2. ¼” Compression Fitting 3. UK Mains Power Cable 4. -
Page 14: Installation
Installation Generator Environment The generator should be situated in a well ventilated environment and positioned such that it can be easily disconnected if required. The generator is designed for indoor use only. It should be installed adjacent to the application(s) it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 15: Generator Overview
Generator Overview Solaris 10 General Dimensions 416 mm / 16.3” 540 mm / 21.2” Ensure outlets are connected to correct application. Connections should only be carried out by trained personnel. CAUTION The Generator should be switched off prior to maintenance and cleaning. -
Page 16: Solaris 10 Rear Connections
Solaris 10 Rear Connections ¼" Compression Fitting ¼" Compression Fitting Mains Cable Page 16... -
Page 17: Electrical Connection
Electrical Connection Connect the generator to an appropriate 100-230 volt single-phase supply, refer to the generator serial plate for input specification and ensure your supply matches the requirements. If the appropriate power cord is not supplied; a new plug, rated to at least 12 amps, can be fitted by a qualified electrician. -
Page 18: Air Purity
Air Purity The Solaris 10 generator should be connected to an air supply that, as a minimum, meets ISO8753-1:2010 Class 1.4.1 Class 1 Particulate In each cubic metre of compressed air, the particulate count should not exceed 20,000 particles in the 0.1 - 0.5 micron size range, 400 particles in the 0.5 - 1 micron range and 10 particles in the 1 - 5 micron size range. -
Page 19: Start-Up Sequence
Unusual Operation If at any time the generator begins to emit excessive noise or vibration, then it should be switched off and you should contact Peak Scientific or the Peak Partner from which the generator has been purchased. Page 19... -
Page 20: Connecting To The Application
⁄ ” I/D). Tubing and fittings not supplied in the fittings kit. > 40 metres: Please contact Peak Scientific with the relevant distance and we will calculate the flow resistance and the tubing size required. A combination of ¼”/ ⁄... -
Page 21: Service Requirements
Service Requirements Service Schedule Purchase Interval Component Visit Qty. Solaris 10 Annual 12 months www.peakscientific.com/ordering Service Kit Please note: Only Peak Scientific approved components should be used. Page 21... -
Page 22: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 23: Cleaning
Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator. -
Page 24: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the generator and that the power socket is turned on. The generator will not switch on and the • Check the fuse in the power cord plug. power switch does not illuminate. •... - Page 25 Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.
- Page 26 Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers. With [Peak Protected], your laboratory’s productivity becomes our top priority.
