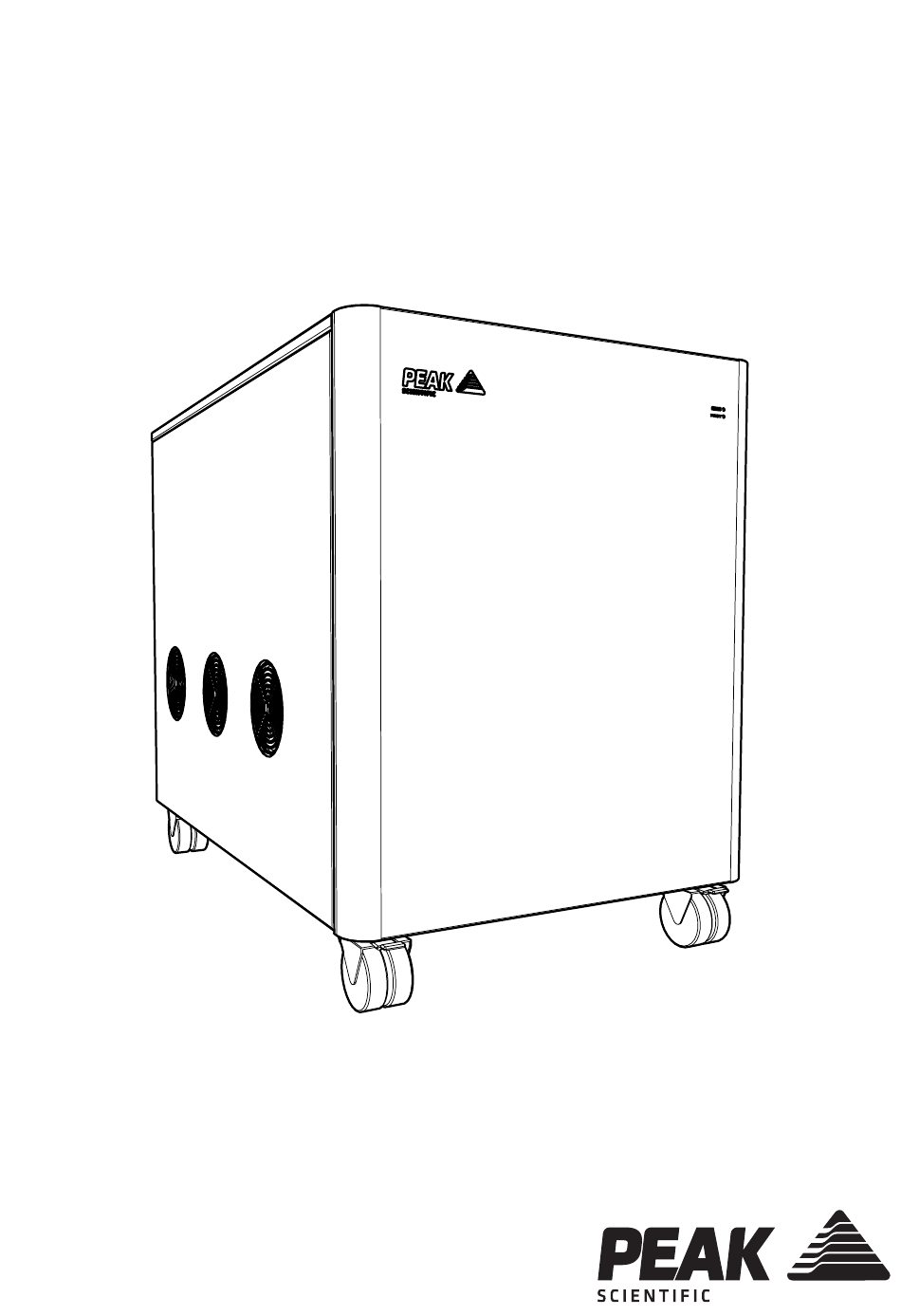

- Page 1 Halo Installation Guide Halo Installation Guide Rev 2 PN IG-0027 RSID 2625 EN 16/01/19...
-
Page 2: Change History
User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your laboratory gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your generator. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit US Mains Cable C19 6-15 04-1024 4mm Hex Key 3300407 Flow Control SIlencer 02-1096 ¼” Compression Fitting 02-4421 2x3m UK Mains Cable C19 04-1025 ¼” Teflon Tubing 00-1266 ¼” - 6mm Push Fit Fitting 02-4600 2x3m EU Mains Cable C19 04-1026 6mm OD x 4mm ID PE 00-1282 Page 4... - Page 5 Unpack the generator from the shipping crate and position on a flat surface, in desired area. First remove the compressor transit brackets. These can be accessed by removing the generator side panels. Starting with the left hand side panel, use the 4mm Hex Key 3300407, and remove the M5 cap screws and washers from the rear tabs of the panel, located in the top and bottom corners.
- Page 6 Once the screws and washers have been removed, remove the left hand side panel. The transit brackets are located below the compressors inside the compressor compartment. Disconnect the fan power cables, then using the 4mm Hex Key 3300407, remove 8 x M5 cap screws and washers and keep in a safe place. Page 6...
- Page 7 Remove the compressor fan panel. To remove the transit brackets, remove the 2 x M5 pozi drive screws and washers on each compressor tray, using a pozi drive screwdriver (not supplied.) Retain the screws and washers. Page 7...
- Page 8 Remove the 2 x M5 cap screws on each compressor base plate, using the 4mm Hex Key 3300407. With the screws removed, slide each transit bracket out from underneath the compressor. Page 8...
- Page 9 Replace the 6 x M5 pozi drive screws and washers to secure the compressor trays. Replace the compressor fan panel, ensuring the fan power cables are reconnected and finally replace the left hand side panel. 02-1096 Connect the 2 x Flow Control Silencers 02-1096 to the Nitrogen and Air ports at the rear of the generator.
- Page 10 02-4600 Select the ¼”- 6mm Push Fit Fitting 02-4600 and attach to the Drain port at the rear of the generator. 00-1282 Connect the 6mm PE Tubing 00-1282 to the ¼”- 6mm Push Fit Fitting 02-4600. Fit the other end of the tubing to a suitable drain connection or container. The container MUST NOT have an airtight seal as water and air will be expelled periodically under a slight pressure.
- Page 11 04-1024/04-1025/04-1026 Select the appropriate IEC 60320/C19 mains cable from the fittings kit and plug the cable into the mains input at the rear of the generator. CAUTION 230V 230VAC 50/60Hz Plug the mains cable into the corresponding 230VAC 50/60Hz single phase power supply.
- Page 12 Switch the generator power ON using the switch on the rear panel. The pressure gauges on the rear panel will gradually increase to the factory set pressures. Page 12...
- Page 13 minutes Leave the generator switched on for a period of 30 minutes to purge the system. SERVICE During the purge the purity light indicator should turn green. Page 13...
- Page 14 After 30 minutes of running, the generator can be turned OFF. Allow the stored gas in the internal tanks to dissipate. The purge is now complete. Once the pressure gauges at the rear of the generator read 0, the silencer fittings can be removed from the Nitrogen and Air ports. Page 14...
- Page 15 02-4421 Select the ¼” Compression Fittings 02-4421 and connect to the Nitrogen and Air ports. 00-1266 Attach the ¼” Teflon tubing 00-1266 to the fittings attached to the Nitrogen and Air ports and connect to the corresponding gas inlets of your instrument. Page 15...
- Page 16 Switch the generator power ON using the switch on the rear panel. The pressure gauges on the rear panel will again gradually increase to the factory set pressure. Page 16...
- Page 17 SERVICE The purity light indicator should turn green. CONGRATULATIONS Your Peak Scientific gas generator is now fully installed. operational and ready to supply gas on demand to your instrument. Page 17...
-
Page 18: General Notes
General Notes Electrical requirements are 230VAC nominal +/- 10% depending on chosen model. However, running continuoulsy at voltages outwith this is not recommended. Extended periods at extremes can have a detrimental effect on the operation and life of the Generator. The Teflon tube supplied in the fittings kit is to allow the generator to be installed adjacent to the instrument it is supplying. - Page 19 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 20 User Manual for your gas generator. Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers.
