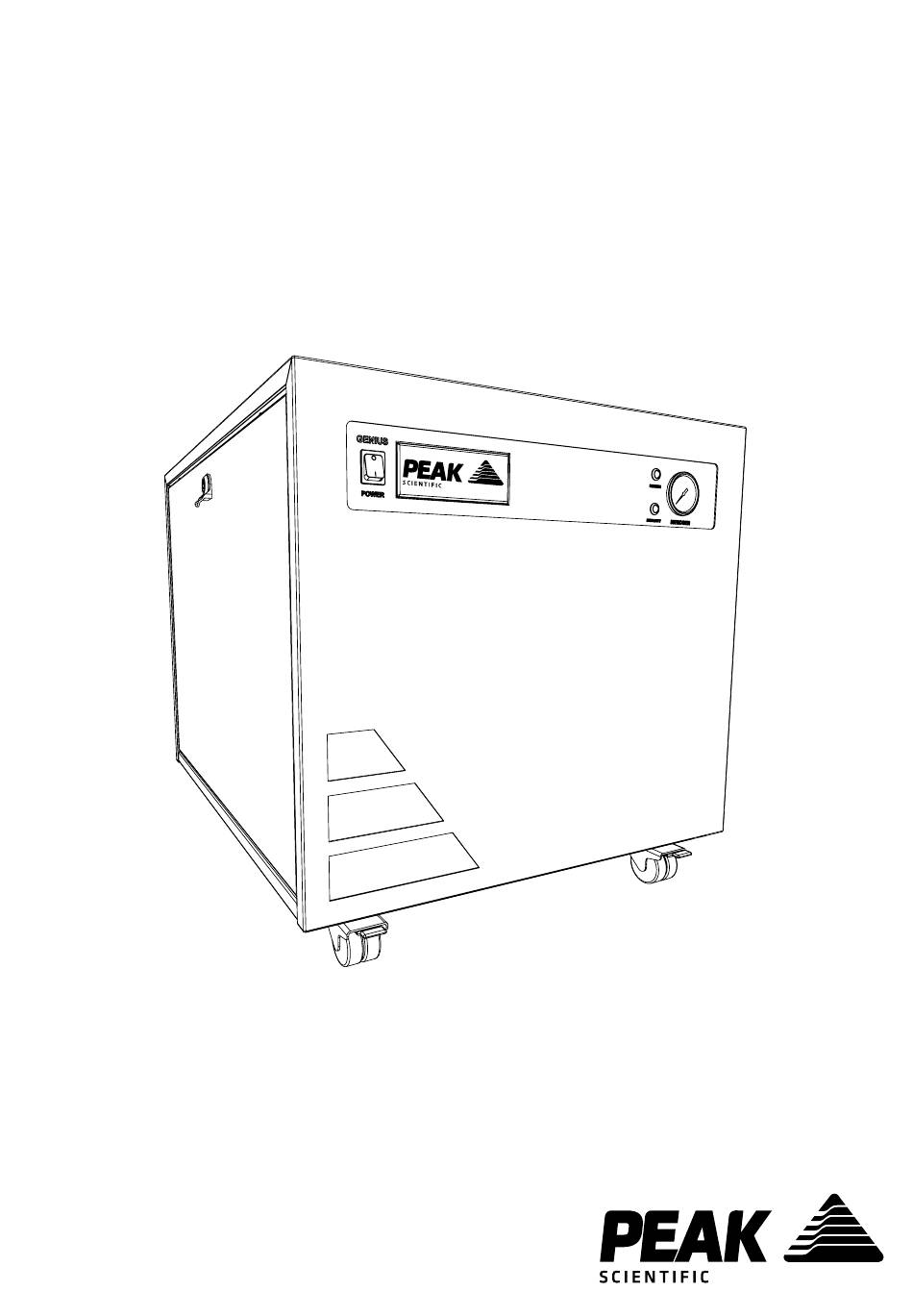

- Page 1 Genius SQ 24 User Manual Copyright © Peak Scientific Instruments Ltd 2019 — GeniusSQ User Manual Rev 6 RSID 2630 EN —09/12/2019...
-
Page 2: Table Of Contents
Contents Change History How to use this Manual Warranties and Liabilities Safety Notices Symbols Safety Notice to Users Declaration of Conformity Environmental Declaration Technical Specification Unpacking Fittings Kit Contents Installation Generator Environment Generator Overview General Dimensions Rear Connections Unit Controls Drain Connection Electrical Connection Start-Up Sequence... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Warranties And Liabilities
Warranties and Liabilities Warranty & Liability Coverage Peak warrants that, subject to the provisions in this statement, purchased Peak generators, whether purchased directly from Peak or indirectly via an approved, certified and trained distributor or partner (referred to hereafter as a “Peak Partner”) will comply in all material respects with any specifications referred to in your customer order confirmation and, subject to installation and operational guidelines being followed as described in applicable product manuals, shall be free from any defects in quality of materials or workmanship for a period of one year from the date of installation, provided this takes... - Page 5 any person, in so far as such can be attributed to negligence or breach of duty of care directly resulting from failure of Peak to comply with the provisions in clauses 1, 2, 3, 4 & 5. Exclusions & Limitations 2.
-
Page 6: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 7: Declaration Of Conformity
Declaration of Conformity Peak Scientific Instruments Ltd. Fountain Crescent, Inchinnan, Renfrewshire, PA4 9RE Declare that: Equipment: Nitrogen Generator Models: Genius SQ 24 To which this declaration relates, is in conformity with the applicable EC directives, harmonized standards, and other normative requirements. -
Page 8: Environmental Declaration
WEEE (Waste of Electrical and Electronic Equipment) Directive 2012/19/EU. These obligations are being met within the B2B compliance group. Peak Scientific Instruments Ltd, herewith confirm that as a manufacturer of articles we conform to the European Parliament and Council Directives, 2011/65/EU for the original... -
Page 9: Technical Specification
Technical Specification Genius SQ 24 Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 3000m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) *NOTE – When taken out of storage the Generator should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation. -
Page 10: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking. Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator to the desired location. -
Page 11: Fittings Kit Contents
Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. 6mm Teflon Tubing x 3m 2. 1/4” Teflon Tubing x 3m 3. -
Page 12: Installation
Installation Generator Environment The generator is designed for indoor use only. It should be installed adjacent to the application(s) it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 13: Generator Overview
Generator Overview General Dimensions 600 mm 750 mm The generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the generator. WARNING Page 13... -
Page 14: Rear Connections
Rear Connections 6mm Push-Fit Fitting 1/4" Compression Fitting Mains Cable Unit Controls Pressure Gauge Service LED High Duty LED Power Switch Ensure all inlets and outlets are connected to correct sources and applications. All Connections should only be carried out by trained personnel. -
Page 15: Drain Connection
Drain Connection Fit the 6mm push fit fitting to the drain port located on the output panel. Tighten using a 16mm or 5/8” spanner. Use the 6mm tubing to connect this to a suitable drain connection or container. It should be noted that the Generator can expel a considerable amount of water from this (dependant on ambient humidity). -
Page 16: Electrical Connection
If the supply voltage is 219V or less, a dual tap transformer must be fitted. This can be directly ordered from Peak Scientific (P/N 06-3200). If a substitute main supply cord is used, ensure that it has adequate ratings and appropriate approvals for the country of operation. -
Page 17: Start-Up Sequence
Start-Up Sequence Before the Generator is connected to the application, the Generator should be operated in isolation (i.e. not connected to the application) for thirty minutes. This is to ensure any impurities present are purged from the system. Failure to do this may harm the application. CAUTION Before re-connecting the Generator to the mains and switching it on for the isolation run, it is necessary to fit the silencer to the outlet port of the output panel. -
Page 18: Connecting To The Application
⁄ ” I/D). Tubing and fittings not supplied in the fittings kit. > 40 metres: Please contact Peak Scientific with the relevant distance and we will calculate the flow resistance and the tubing size required. A combination of ⁄ ”/ ⁄... -
Page 19: Normal Operation
Normal Operation The generator is designed specifically to minimize operator involvement. Given that the system is installed as described in earlier sections and is serviced in accordance with the specified maintenance recommendations (see Service Requirements), then it should simply be a matter of turning the generator on when it is required. The generator will automatically produce the factory set flow and pressure as detailed in the Technical Specifications. -
Page 20: Generator Cycling
Unusual Operation If at any time the generator begins to emit excessive noise or vibration, then it should be switched off and you should contact Peak Scientific or the Peak Partner from which the generator has been purchased. Generators switched from high to low flow quickly will undergo a short period of expel- ling excess air. -
Page 21: Service Requirements
Service Requirements Service Schedule Purchase Interval Component Qty. Visit 12 Months Genius SQ 24 Annual Maintenance Kit www.peakscientific.com/ordering Compressor Compressor Assembly Genius SQ 24 Assembly * * If your compressors have been refitted 3 times they must now be replaced. Please note that when replacing the compressor assembly, the full Annual Maintenance Kit will not be required. -
Page 22: Service Indication
Service Indication The generator will notify the user of the service interval for the internal compressors. The generator has the following Service Indication Stages:- Stage 1 12 months after installation, and every 12 months thereafter, a service the LED indicator (yellow) on the front of the generator will illuminate. -
Page 23: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 24: Cleaning
Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator. -
Page 25: High Duty Indication
If this is the case you should contact Peak Scientific or your service provider. It should be noted that the generator will continue to operate so long as it can maintain pressure during this indication. -
Page 26: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the generator and that the power socket is turned on. The generator will not switch on and the • Check the fuse in the power cord plug. power switch does not illuminate. •... - Page 27 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 28 Scotland, UK Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact discover@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2019 — GeniusSQ User Manual Rev 6 RSID 2630 EN —09/12/2019...
