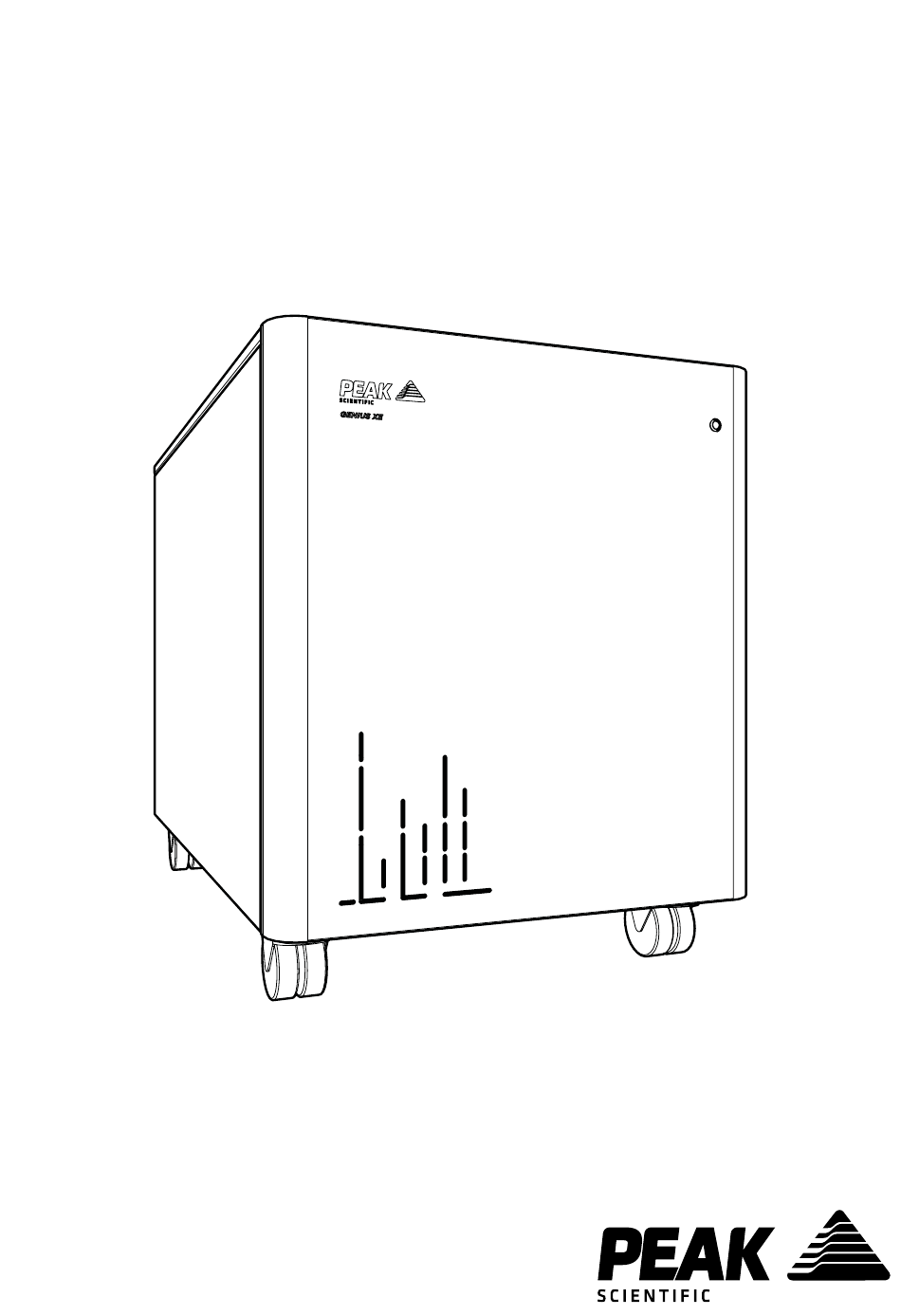

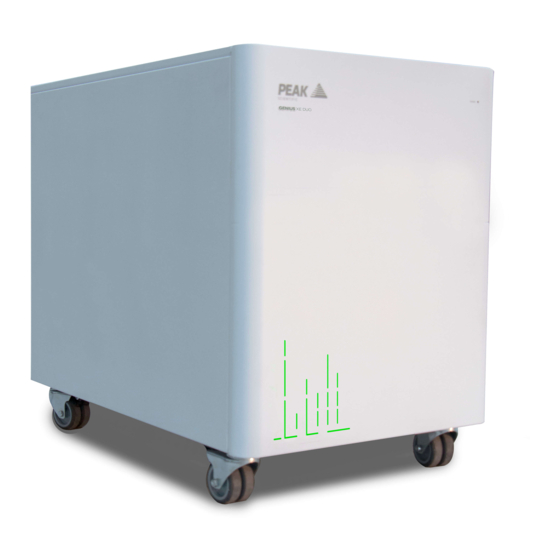

- Page 1 Genius XE QSD Installation Guide Genius XE QSD Installation Guide Rev 2 RSID 3495 EN 03/03/20...
-
Page 2: Change History
User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your laboratory gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your generator. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit ¼” Compression Fitting 02-4421 US Mains Cable C19 6-15 04-1024 Flow Control SIlencer 02-1096 ¼” - 6mm Push Fit Fitting 02-4600 3x3m UK Mains Cable C19 04-1025 ¼” Teflon Tubing 00-1266 4mm Hex Key 3300407 EU Mains Cable C19 04-1026 6mm OD x 4mm ID PE 00-1282 Page 4... - Page 5 0° 0° Unpack the generator from the shipping crate and position on a flat surface, in desired area. 3300407 3300407 First remove the compressor transit brackets. These can be accessed by removing the generator’s right-hand side and top panels. Starting with the top panel, use the 4mm Hex Key 3300407 to loosen the two cap screws fixing the top plate to the rear of the generator, then tilt up and slide backwards to release the top plate from the generator.
- Page 6 3300407 3300407 Once the top plate has been removed, use the 4mm Hex Key 3300407 to loosen the two cap screws fixing the right-hand side panel to the rear of the generator, then tilt outwards and slide backwards to release the side plate from the generator. 3300407 3300407 With the right-hand side plate removed, use the 4mm Hex Key 3300407 to remove...
- Page 7 10mm Spanner 10mm Spanner The transit brackets are located below the compressors and have stickers on them stating ‘Remove before use’. To remove the transit brackets, use a 10mm spanner to remove the two screws on each bracket as indicated, then slide the brackets out from underneath the compressors.
- Page 8 3300407 3300407 Reattach the right hand side and top panel to the generator Ensure all screws are firmly tightened WARNING 02-1096 02-1096 02-4600 02-4600 Select the 6mm Push Fit Fitting 02-4600 and attach to the Drain port at the rear of the generator.
- Page 9 00-1266 00-1266 Connect the 6mm Polyethylene Tubing 00-1266 to the 6mm Push Fit Fitting 02-4600. Fit the other end of the tubing to a suitable drain connection or container. The container MUST NOT have an airtight seal as water and air will be expelled periodically under a slight pressure.
- Page 10 CAUTION 230V Plug the mains cable into the corresponding 230VAC 50/60Hz single phase power supply. CAUTION ensure the correct cable has been selected for your electrical supply. Consult the Electrical Requirements section if you are unsure of the requirements of your generator.
- Page 11 minutes Leave the generator switched on for a period of 30 minutes to purge the system. After 30 minutes of running, the generator can be turned OFF. Allow the stored gas in the internal tanks to dissipate. Page 11...
- Page 12 Once the pressure has dissipated the silencer fittings can be removed from the Nitrogen and Air ports. 02-4421 02-4421 Depending on the size of the inlet on the instrument, select either the ¼” Compression Fitting 02-4421 or the remaining ¼”- 6mm Push Fit Fittings 02-4600 and connect these to the Nitrogen and Air ports.
- Page 13 00-1266 00-1266 Attach the appropriate sized Teflon tubing to the fitting attached to the Nitrogen and Air ports and connect the other end to the gas inlet of your instrument. Switch the generator ON using the switch on the rear panel Page 13...
- Page 14 CONGRATULATIONS Your Peak Scientific gas generator is now fully installed, operational and ready to supply gas on demand to your instrument. Page 14...
-
Page 15: General Notes
General Notes Electrical requirements are 220 - 240v ±10%. Running at voltages outwith this is not recommended. Extended periods at extremes can have a detrimental effect on the operation and life of the Generator. The Teflon tube supplied in the fittings kit is to allow the generator to be installed adjacent to the instrument it is supplying. - Page 16 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 17 Page 17...
- Page 18 Page 18...
- Page 19 Page 19...
- Page 20 User Manual for your gas generator. Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers.
