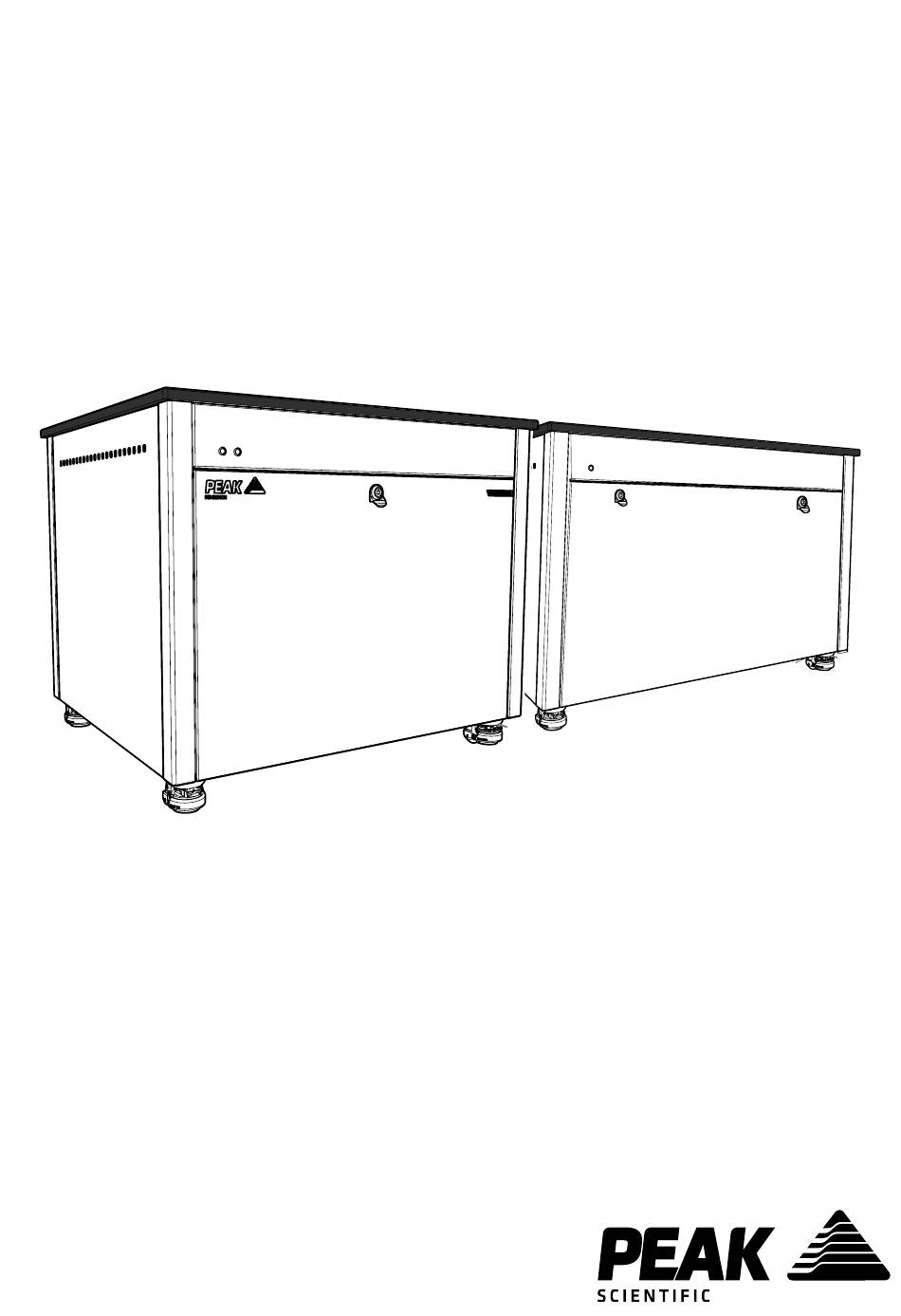

User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your laboratory gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your generator.
WARNING ‘The MS Bench SCI 1 & SCI 2 are designed to support most RUO SCIEX MS Systems (except TripleTOF 5600+, 6600, and 6600+) per the weights and dimensions provided in Sciex site prep manuals.
1/4” - 6mm Push Fit Fitting 02-4600 1x3m* x1** 6mm OD x 4mm ID PE 00-1282 US Mains Cable 120V C19 5-15 04-1035 * MS Bench G SCI 1 & G SCI 2 Only ** MS Bench SCI 1 & SCI 2 Only Page 4...
Page 5
0° 0° Unpack the generator from the shipping crate and position on a flat surface, in desired area. To extend the levelling feet, first pull the ratchet handle out. There is a ring pull on the handle to aid removal. Page 5...
Page 6
With the foot in position, push the tab back into the ratchet mechanism. For MS Bench SCI 1 & SCI 2 proceed to step 8. For MS Bench G SCI 1 & G SCI 2, continue following all remaining steps. Page 6...
Page 7
There are Transit Bolts located on the underside of the generator. The G SCI 1 has 2 bolts and the G SCI 2 has 3 bolts. These MUST be unscrewed and removed before operating the generator. Please retain the bolts for future transportation. 02-4600 02-4600 02-1096...
Page 8
00-1282 00-1282 Connect the 6mm PE Tubing 00-1282 to the ¼”- 6mm Push Fit Fitting 02-4600. Fit the other end of the tubing to a suitable drain connection or container. The container MUST NOT have an airtight seal as water and air will be expelled periodically under a slight pressure.
Page 9
Plug the mains cable into the corresponding 220 - 240v ±10% (MS Bench G SCI 1 & G SCI 2) & 100 - 240v ±10% (MS Bench SCI 1 & SCI 2) single phase power supply. CAUTION ensure the correct cable has been selected for your electrical supply Switch the generator power ON using the switch on the rear panel.
Page 10
minutes Leave the generator switched on for a period of 45 minutes to purge the system. G SCI 1 G SCI 2 Remove the front panel and check gauges have risen to the factory set pressures stated in the User Manual. The gauges are located in the bottom left hand corner of the G SCI 1.
Page 11
Switch the generator power OFF using the switch on the front panel. The purge is now completed and the silencer fittings can be removed from the Curtain, Source & Exhaust ports. Page 11...
Page 12
02-4421 02-4421 3303538 3303538 Select the 5/16” Compression Fitting 3303538 & 1/4” Compression Fittings 02-4421 and connect to the CURTAIN and SOURCE & EXHAUST ports respectively. 00-1266 00-1266 3303537 3303537 Attach the 5/16” Teflon Tubing 3303537 to the fitting attached to the CURTAIN port, then attach the 1/4”...
Page 13
Switch the generator power ON using the switch on the rear panel. CONGRATULATIONS Your Peak Scientific MS Bench is now fully installed and operational. Page 13...
Electrical requirements are 220 - 240v ±10% (MS Bench G SCI 1 & G SCI 2) & 100 - 240v ±10% (MS Bench SCI 1 & SCI 2). Running at voltages outwith this is not recommended. Extended periods at extremes can have a detrimental effect on the operation and life of the Generator.
Page 15
See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
Page 16
User Manual for your gas generator. Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers.
