- Page 1 Genius 3010/13/20/22 User Manual Genius3010-3013-3020-3022 User Manual Rev 1 PN UM-0008 03/02/17...
-
Page 2: Table Of Contents
Contents Change History How to use this Manual Introduction Warranties and Liabilities Safety Notices Symbols Safety Notice to Users Declaration of Conformity Environmental Declaration Technical Specification Unpacking Fittings Kit Contents Installation Generator Environment 3010/3013 General Dimensions 3010/3013 Rear Connections 3020/3022 General Dimensions 3020/3022 Rear Connections Electrical Connection Start-Up Sequence... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Introduction

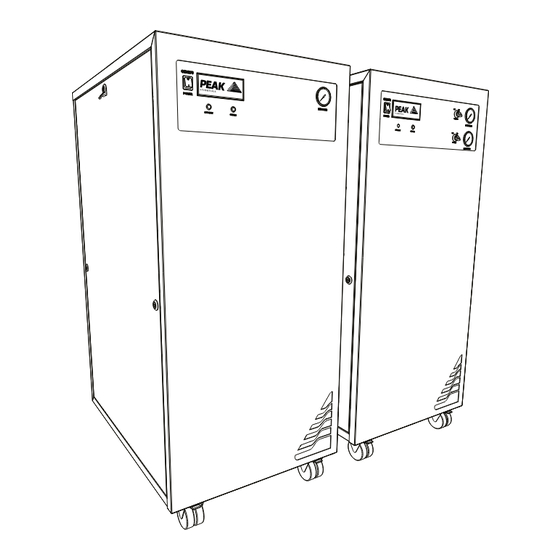

Introduction The Genius 3010, 3013, 3020 & 3022 have been developed to provide a supply of nitrogen gas for your LC/MS instrument. We’ve built them with internal air compressors as standard, removing the reliance upon an in-house air supply. These model provide a source of nitrogen gas with other features including: •... -
Page 5: Warranties And Liabilities
Warranties and Liabilities 1. The Company warrants that it has title to the Goods. 2. Subject to the provisions of this clause the Company warrants that the Goods shall comply in all material respects with any specification referred to in the Order Confirmation (as the same may be amended) and shall, subject thereto, be free from defects in material and workmanship for the lesser of a period of twelve months from the date of delivery or thirteen months from the date of dispatch... -
Page 6: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 7: Declaration Of Conformity
Declare that: Equipment: Nitrogen Gas Generator Models: Genius 3010, 3013, 3020 & 3022 To which this declaration relates, is in conformity with the applicable EC directives, harmonized standards, and other normative requirements. • Low Voltage Directive 2015/35/EU EN 61010-1: 2010 Electrical Equipment for measurement, control and laboratory use. -
Page 8: Environmental Declaration
WEEE (Waste of Electrical and Electronic Equipment) • 2011/65/EU RoHS 2 (Restriction of Hazardous Substance) Peak Scientific Instruments Ltd fully complies with its obligations towards the European WEEE (Waste of Electrical and Electronic Equipment) Directive 2012/19/EU. These obligations are being met within the B2B compliance group. -
Page 9: Technical Specification
Technical Specification Genius 3010 Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 2000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) Generator Outlets Maximum Gas Output Pressure 6.9 bar (100 psi) - Page 10 Technical Specification Genius 3013 Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 2000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) Generator Outlets Maximum Gas Output Pressure 6.9 bar (100 psi) Maximum Outlet Flow Rate 64 L/min (2.26 cfm)
- Page 11 Technical Specification Genius 3020 Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 2000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) Generator Outlets Maximum Gas Output Pressure 2 x independant outlet of 6.9 bar (100 psi) Maximum Outlet Flow Rate 2 x independant outlet of 32 L/min (1.13 cfm)
- Page 12 Technical Specification Genius 3022 Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 2000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) Generator Outlets Maximum Gas Output Pressure 2 x independant outlet of 8.1 bar (116 psi) Maximum Outlet Flow Rate 2 x independant outlet of 32 L/min (1.13 cfm)
-
Page 13: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator to the desired location. -
Page 14: Fittings Kit Contents
Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. 6mm Teflon Tubing x 3m* 2. ¼” Teflon Tubing x 3m* 3. -
Page 15: Installation
Installation Generator Environment The generator is designed for indoor use only. It should be installed adjacent to the application(s) it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 16: 3010/3013 General Dimensions
Generator Overview General Dimensions 600 mm / 23.6” 850 mm / 33.5” The generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the generator. WARNING Page 16... -
Page 17: 3010/3013 Rear Connections
3010/3013 Rear Connections 6mm Push-Fit Fitting ¼" Compression Fitting Mains Cable Page 17... -
Page 18: 3020/3022 Rear Connections
3020/3022 Rear Connections 6mm Push-Fit Fitting ¼" Compression Fitting Mains Cable Page 18... -
Page 19: Electrical Connection
Electrical Connection Connect the generator to an appropriate 110 or 230 volt single-phase supply, refer to the generator serial plate for input specification and ensure your supply matches the requirements. If the appropriate power cord is not supplied; a new plug, rated to at least 12 amps, can be fitted by a qualified electrician. -
Page 20: Start-Up Sequence
Start-Up Sequence Before the Generator is connected to the application, the Generator should be operated in isolation (i.e. not connected to the application) for thirty minutes. This is to ensure any impurities present are purged from the system. Failure to do this may harm the application. CAUTION Before re-connecting the Generator to the mains and switching it on for the isolation run, it is necessary to fit the silencers (supplied in the fittings kit) to the outlet ports of... -
Page 21: Normal Operation
Unusual Operation If at any time the generator begins to emit excessive noise or vibration, then it should be switched off and you should contact Peak Scientific or the Peak Partner from which the generator has been purchased. Page 21... -
Page 22: Connecting To The Application
> 40 metres: Please contact Peak Scientific with the relevant distance andwe will calculate the flow resistance and the tubing size required. A combination of 6/4 and 10/8 tubing may be used to ensure that there is no large diameter tubing within the lab (i.e. -
Page 23: Service Requirements
Service Requirements Service Schedule Purchase Interval Component Part No. Qty. Genius 3010/13 Annual Maintenance Kit (Pre March '14 Manufactured Generators) Kit Includes; 4 x 0.01 Micron Filter Element 1 x RAC Filter Element 08-9407 1 x Inlet Filter Element 2 x 3/2 Valve... - Page 24 High Duty Indication The Genius 3010/3013/3020 & 3022 have a ‘HIGH DUTY’ indicator on the front panel. This indicator monitors the running condition of the internal compressors and illuminates when they have been operating continually for a period of 8 hours.
-
Page 25: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 26: Cleaning
Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator. -
Page 27: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the Generator and that the power socket is turned on. The Generator will not switch on and the • Check the fuse in the power cord plug. power switch does not illuminate. •... - Page 28 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 29 Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers. With [Peak Protected], your laboratory’s productivity becomes our top priority.
