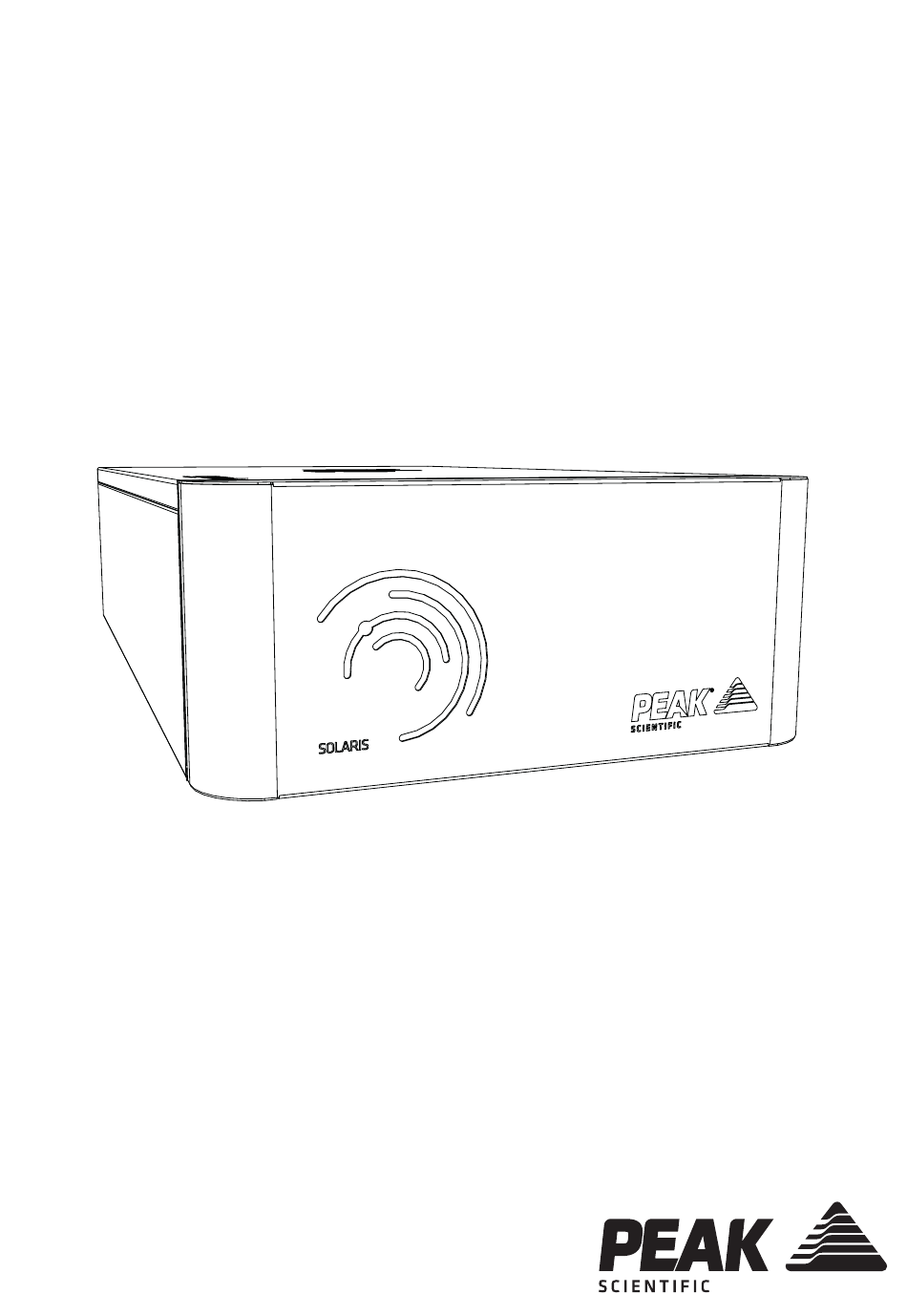

- Page 1 Solaris XE Installation Guide Copyright © Peak Scientific Instruments Ltd 2021 — Solaris XE Installation Guide Rev 3 PN IG-0023 RSID 2301 EN —24/08/2021...
-
Page 2: Change History
User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your Gas Generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your Generator. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit JP Mains Cable C13 100V 04-1006 US Mains Cable C13 6-15 04-1029 2.5mm Hex Key 00-5483 US Mains Cable C13 5-15 04-1039 6mm Push-Fit Tee Fitting 02-4325 3mm Hex Key 3301111 UK Mains Cable C13 04-1028 ¼” – 6mm Push-Fit Elbow Fitting 02-4331 EU Mains Cable C13 04-1038 Page 4 6mm Teflon Tubing 00-1302... - Page 5 WARNING 0° 0° Unpack the generator from the shipping crate and position on a flat surface, in desired area. WARNING the weight of the unit contitutes a two man lift. Safe lifting practices are advised. 406.4 mm (16”) The generator can be wall mounted. If you do not wish to wall mount your generator proceed to step 5.
- Page 6 00-5483 00-5483 Remove the 6 feet from the generator before attaching to the wall. 00-4076 00-4076 00-4075 00-4075 With the holes drilled in your desired location, fit the 4x No.8 Wall Plug 00-4076 and 4x No.8 Screw 00-4075 to the wall and mount your generator onto them. Note: If mounting the generator on the wall, the generator must be mounted horizontally.
- Page 7 02-4331 02-4331 Select the ¼” – 6mm Push Fit Elbow Fitting 02-4331 and attach to the AIR IN and NITROGEN ports. 00-1302 00-1302 00-1302 00-1302 Attach the some of the supplied 6mm Teflon Tubing 00-1302 to the AIR IN port and connect this to your house air.
- Page 8 CAUTION 04-1028/04-1029/04-1038/04-1039/04-1006 04-1028/04-1029/04-1038/04-1039/04-1006 Select the appropriate mains cable from the fittings kit and plug the IEC 60320/C13 cable into the mains input at the rear of the generator. Please note both 110V and 230V US cables have been supplied, select the correct mains cable for your supply voltage.
- Page 9 Press the POWER switch located at the rear of the generator. YELLOW YELLOW The LEDs on the front of the generator should now illuminate YELLOW until the unit reaches operating pressure. Page 9...
- Page 10 80psi. The Generator will provide Nitrogen almost instantaneously. CONGRATULATIONS Your Peak Scientific gas generator is now fully installed, operational and ready to supply gas on demand to your instrument. Page 10...
-
Page 11: General Notes
General Notes Electrical requirements are 100-230VAC nominal +/- 10% depending on chosen model. However, running continuoulsy at voltages outwith this is not recommended. Extended periods at extremes can have a detrimental effect on the operation and life of the Generator. Please familiarise yourself with the full User Manual available at www.peakscientific. - Page 12 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 13 Page 13 Copyright © Peak Scientific Instruments Ltd 2021 — Solaris XE Installation Guide Rev 3 PN IG-0023 RSID 2301 EN —24/08/2021...
- Page 14 Page 14...
- Page 15 Page 15...
- Page 16 Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact marketing@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2021 — Solaris XE Installation Guide Rev 3 PN IG-0023 RSID 2301 EN —24/08/2021...
