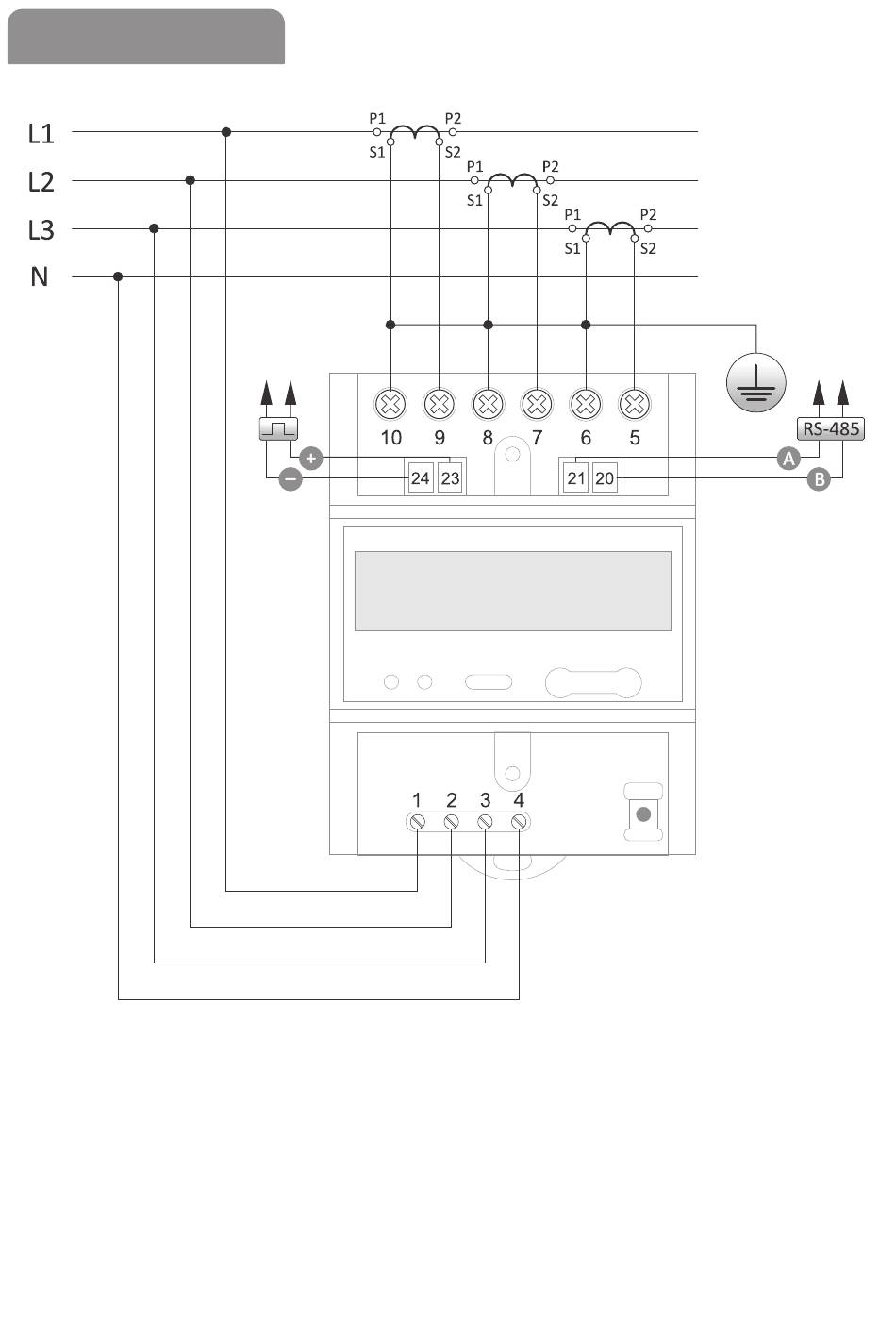

Wiring diagram
1 L1 phase – voltage measurement and power supply
2 L2 phase – voltage measurement and power supply
3 L3 phase – voltage measurement and power supply
4 N-wire – voltage measurement and power supply
5 current transformer – L3 phase, S2 terminal
6 current transformer – L3 phase, S1 terminal
- 9 -
