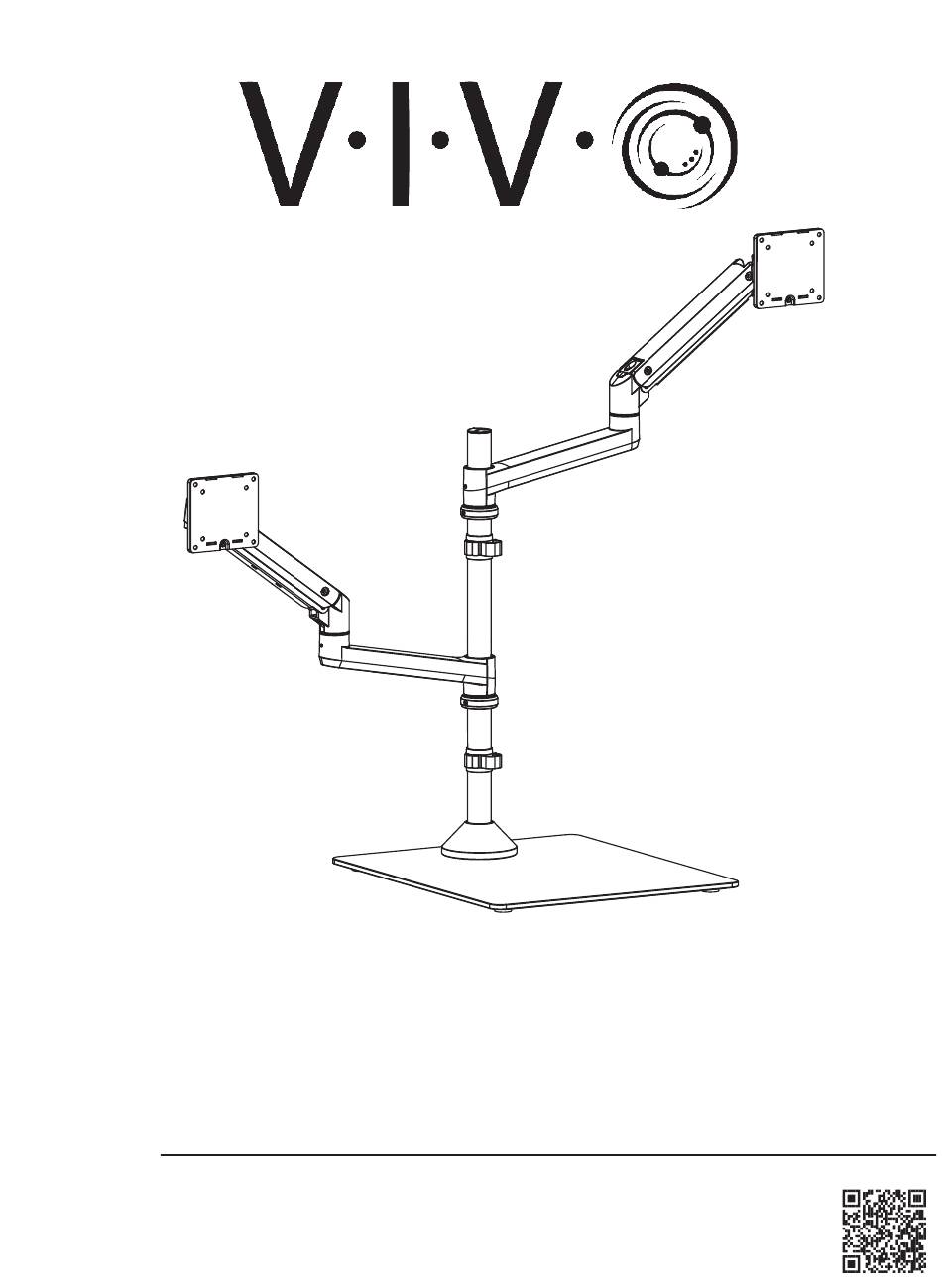

Dual Ultrawide Monitor
Desk Stand
SKU: STAND-V249FG
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/stand-v249fg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V249FG and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V249FG

  • Page 1 Dual Ultrawide Monitor Desk Stand SKU: STAND-V249FG Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v249fg...
  • Page 2 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
  • Page 3 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
  • Page 4: Product Warranty

    If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts.
  • Page 5: Package Contents

    Package Contents A (x2) B (x2) C (x2) D (x1) Upper Arm VESA Bracket Pole Lower Arm E (x1) F (x1) G (x1) H (x1) Pole Cover Mounting Plate Glass Plate Metal Plate K (x2) I (x2) J (x4) Bracket Cable Clip Rubber Pads Spacer...
  • Page 6 ASSEMBLY STEPS STEP 1 Slide a Cable Clip (I) and Pole Cover (E) onto the lower portion of Pole (D). Attach the Mounting Plate (F) to the bottom of Pole using the M6x16mm Screws (S-B) and 4mm Allen Wrench (T-A). should Raised Prongs be facing down.
  • Page 7 STEP 2 Place the Glass Plate (G) on on top of the Metal Plate (H) then fasten the Pole (D) and Mounting Plate (F) onto the two Plates using the M6x15mm Screws (S-A) and D6 Washers (S-D) with the 4mm Allen Wrench (T-A). STEP 3 Remove adhesive backing from Rubber Pads (J) and apply them to each corner on the bottom of the base assembly.
  • Page 8 STEP 4 Height Collar Loosen the set screws on the top two pre-installed Height Collar using the 4mm Allen Wrench and remove (T-A) from the Pole (D). Set aside for use in a later step. Use 4mm Allen Wrench to loosen the set screw on the remaining Height Collar and slide down the Pole.
  • Page 9 STEP 5 Slide a Lower Arm (C) onto the Height Collar on Pole (D). Slide a Cable Clip (I), the previously removed Height Collar, and the second Lower Arm onto Pole (D). Contact Plate Height Collar Height Collars feature Contacts Plates that may have slid out of place when removing the Collars.
  • Page 10 STEP 5 Cont’d Height Collars With each Lower Arm positioned directly Secure the Height Collars in above each Height Collar, tighten the set position using the 4mm Allen screw on Lower Arms (C) using the flat head Wrench (T-A). end of 4mm Allen Wrench (T-A). STEP 6 Slide the Upper Arms (A) into the Lower Arms (C).
  • Page 11 STEP 7 Place the VESA Brackets (B) into the Upper Arms (A) and install using Bracket Spacers (K) with the hex side up, and M8x25mm Screw (S-C). Tighten using the 6mm Allen Wrench (T-B). Ensure the hex side of Bushings are Note: facing up.
  • Page 12 STEP 8 Attach the VESA Plates (B2) to the monitors using the M4x12mm Screws (M-A) or M5x12mm Screws (M-B) with the D5 Washers (M-C) and a Phillips screwdriver.
  • Page 13 STEP 9 Adjusting the Tilt Joint Adjustment Screw Loosen Tilt Joint: Lock Angle Use 6mm Allen Wrench (T-B) to Tighten as much as possible loosen the tilt joint Adjustment using the 6mm Allen Wrench Screw, located on the side of (T-B) to lock the angle.
  • Page 14 STEP 10 ** Setup Options ** Choose a setup option from the three options and follow mounting instructions. Option A: Stacked | Screens Centered [pg 16-18] Arms will Extend 5” from Front of Pole to VESA Plate 5” Extends 5” from Front of Pole Screens Centered Option B: Stacked | Low Profile, Off Center [pg 16-18]...
  • Page 15 Option C: Side by Side [pg 19-22]...
  • Page 16 Mounting Your Monitors Follow the steps below for your chosen setup. *See page 19-21 for Option C Options A & B | Stacked Setups Align the arms based on the images shown for your setup. A. Stacked | Screens Centered Position the arms as shown.
  • Page 17 Options A & B - Cont’d Mount Lower Monitor With the assistance of a second person, line up the VESA Plate (B1) on your monitor with the VESA Bracket and the Plate Hooks into the pockets of the VESA Bracket (B) on the lowest arm *Monitor &...
  • Page 18 Options A & B - Cont’d Mount Upper Monitor Repeat mounting steps 1-3 from previous page mount second monitor on the top arm. ** WARNING ** To prevent monitor from dropping, position the arm slightly offset when mounting the monitor and hold in place while adjusting tension. Once securely held, move over lower monitor tension is adjusted.
  • Page 19 Option C | Side by Side ** TIP OVER WARNING ** Please follow ALL steps below to avoid accidental damage to your screens. Position Arms Align your Arm Assemblies (AA1, AA2) as shown, with AA2 angled away from the base, and AA1 overhanging the based with the head slightly angled.
  • Page 20 Side by Side - Cont’d Secure in Place Gently release the monitor and secure using the previously removed Thumbscrew (B2). Adjust Arm Tension 5.1 Position the arm horizontally, as shown, and firmly hold in place. 5.2 Insert the 6mm Allen Wrench (T-B) in to the adjustment screw on the back of the monitor arm.
  • Page 21 Side by Side - Cont’d Re-Position Arms Carefully move Arm Assembly 1 (AA1) forward and position over the base, then adjust Arm Assembly 2 (AA2) so that it overhangs the base, leaving room to install the second monitor. Mount Second Monitor Repeat steps 2-4 to mount second monitor onto Arm Assembly 2 (AA2).
  • Page 22 Side by Side - Cont’d Position Monitors Carefully move and position monitors side by side, ensuring they remain extended over the base. Proceed to Cable Manangement on Page 24 Monitor Tilted Too Far? Refer to instructions on page 23 to adjust. DO NOT try to adjust angle freely.
  • Page 23 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [ 22lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint: With a hand still on the monitor, use 6mm Allen Wrench (T-B) to loosen the...
  • Page 24 STEP 11 Remove the cable management clips from the bottoms of the arm segments by pressing forward to unlock them. Route the cables from the monitors through Cable Clips (I), then re- install the cable management clips.
  • Page 25 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
  • Page 26 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...
  • Page 27: Need Assistance

    Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <...
  • Page 28 LAST UPDATED: 06/11/24 REV1LF Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
