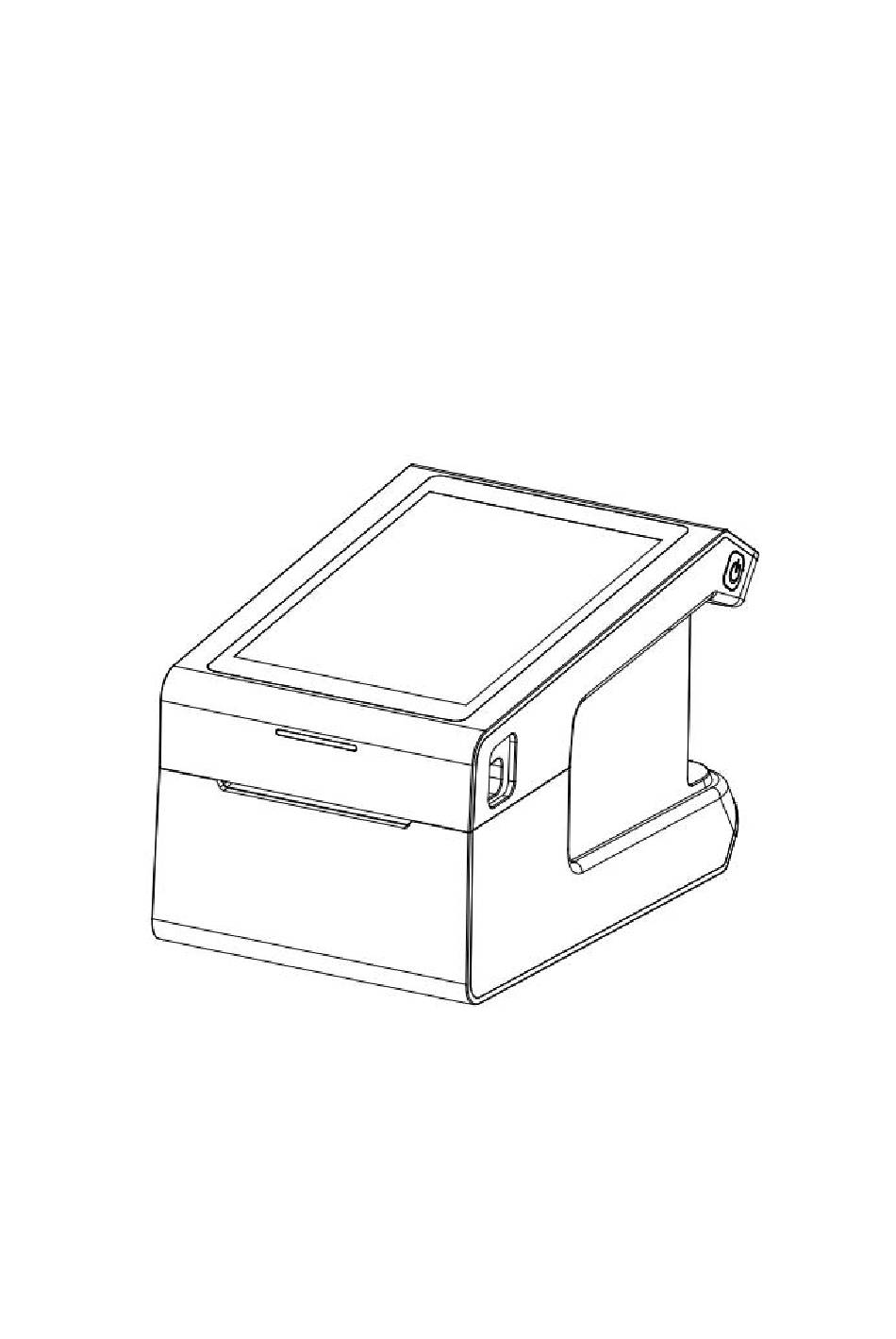

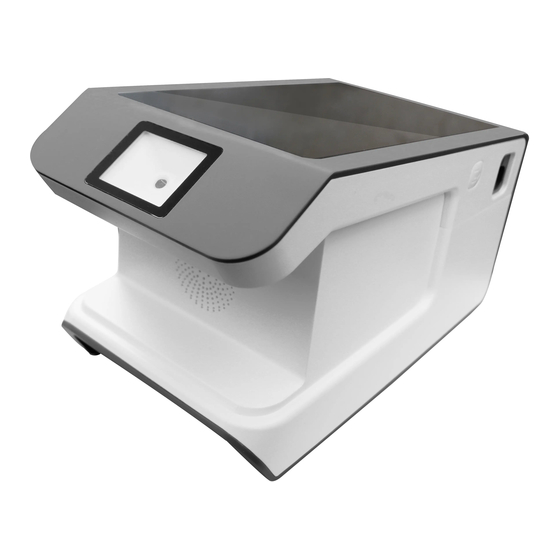

- Page 1 SPRT All-in-one POS Terminal printer （SP-Y37） （Ver 1.00） Beijing Spirit Technology Development Co., Ltd.
-
Page 2: Table Of Contents
Content Introduction ................... 错误！未定义书签。 Chapter 1 Feature and Performance ..........错误！未定义书签。 1.1 Print Performance ............. 错误！未定义书签。 1.2 Print Paper ....................3 1.3 Print Font .....................4 1.4 Interface ...................... 4 1.5 Print Control Commands ........... 错误！未定义书签。 1.6 Power Supply ..............错误！未定义书签。 1.7 Operation Environment ............. -
Page 3: Introduction
Introduction Y37 is suitable for supermarket, catering and data collection industries. 8-inch vertical screen, Android system supports mobile, China Unicom, telecommunications 4G communication network. With 100M wired network port, serial port, Wifi/BT4.0, support USB standard interface, with 200W camera module to support scanning 1D code, 2D code. -
Page 4: Print Font
Outer diameter ---------- Φ80mm (maximum) Inner diameter ---------- Φ12.5mm (minimum for plain paper), Φ25mm (minimum for label paper) Note: When the core diameter is larger than the slot diameter of the paper pressing plate, ensure that the bottom of the paper roll does not touch the plastic casing after installation, to avoid affecting the rotation of the paper roll and impacting printing performance. -
Page 5: Print Control Commands
● Storage temperature: -20～60℃; Relative humidity: 10 ~ 90 % 1.8 Dimension ● 263（L）mm×148（W）mm×154（H）mm 1.9 Model classification Model Interface USB-TypeA, Serial, USB-TypeB, Ethernet, Cash drawer SP-Y37 interface, HDMI(optional) Chapter 2 Operation Specification 2.1 Printer Appearance The names of each part of the printer are shown in Fig. 2-1. - Page 6 Fig. 2-1: Diagram of the names of each part of the printer. Touch screen Paper output port Door handle Paper feed button Scan window Power button Speaker...
-
Page 7: Paper Installation
HDMI Interface (optional) 2.2 Paper Installation 2.2.1 Paper Loading The SP-Y37 all-in-one POS terminal printer uses thermal paper rolls with a maximum width of 82.5mm. The installation steps for thermal paper are as follows: Lift up the opening handles on both sides, open the paper tray cover, place the... -
Page 8: Interface
2.3 Interface 2.3.1 USB-TypeA interface There are two USB-TypeA interfaces in Y37 android printer, pins description as below Fig. 2-2: Function Notes V Bus Power +5V Data- Data- Data+ Data- Ground Fig. 2-2: USB-TypeA interface 2.3.2 Ethernet Interface The model with Ethernet interface use RJ45 Network socket. The appearance is as Fig. -
Page 9: Bluetooth Interface
Bluetooth connection must be disconnected when making modifications. When printing with Bluetooth on the SP-Y37 POS terminal printer, it is necessary to pair it with the printer's Bluetooth. The usual pairing process is as follows (using default parameters as an example): 1.Turn on the all-in-one machine and the Bluetooth device controlling the all-in-one... -
Page 10: Power Connection
Fig.2-5 Cash Drawer Interface The pin assignment is as below: Pin No. Signal Direction Chassis Ground —— Cash drawer driver signal 1 Cash drawer on/off status signal +24VDC —— Cash drawer driver signal 2 Signal ground —— 2.3.8 Power Connection The rated supply voltage is 24V ±... -
Page 11: Buttons,Buzzer And Indicators
2.4 Buttons,buzzer and Indicators 1. Indicators: The SP-Y37 all-in-one POS terminal has a paper feed button, a power on/standby button, a built-in buzzer, and a status indicator consisting of three colors - red, green, and blue. 2. Feed Button: -In ticket mode, press and hold the paper feed button. -
Page 12: Power On Status
ERROR Indicator ERROR Type ERROR Description Flickering Type LED Flash once:Internal memory reading and writing error LED Flash twice:over-voltage LED Flash three times:under-voltage LED Flash four times: CPU execution error (wrong Non-recovera address) ble error LED Flash five times: UIB error LED Flash six times: FLASH writing error... - Page 13 system is started, release the power button. The red, yellow and blue indicators of the status indicator flash alternately, then the green light is on for a long time, the printer enters the normal working mode. 2.6 Self-test The self-test will check the condition of printer, if the printer prints out the self-test receipt correctly, it means the printer works normally, except interface with host.
- Page 14 2-7self-test...
-
Page 15: Hexadecimal Printing
2.7 Hexadecimal Printing The hexadecimal print feature allows the received data from the host to be printed in hexadecimal format along with its corresponding character, making it convenient for debugging applications. 1.In the shutdown state, open the paper tray cover, hold down the paper feed button, and then hold down the power button to start the machine. -
Page 16: Software Operation
Print Position: As shown in the above image, the black mark should be printed on the right edge of the printed surface (only supported for printing on the right edge of the printed surface of the paper). Width Range: Width ≥ 12mm (when using 80mm black mark paper); Width ≥ 7mm (when using 58mm black mark paper);... - Page 17 information. The password is "1024". "Enable Service": Enables port collection. "Disable Service": Disables port collection. "Upgrade Printer Firmware": Refer to section 2.8 for instructions. 2. "PrinterSetting" is a settings tool that allows for parameter settings on the machine. a) Instruction Set: Choose different instruction sets based on the machine's usage scenario.
- Page 18 h) Vector Font Switch: Available under the "CPCL Instruction Set". i) Print Mode Switch: Switch between different working modes of the machine. "Cashier Mode": Use this mode when installing third-party apps or when user data does not need to be uploaded to the server. "Data Collection Mode": Use this mode when user data needs to be uploaded to the server.
