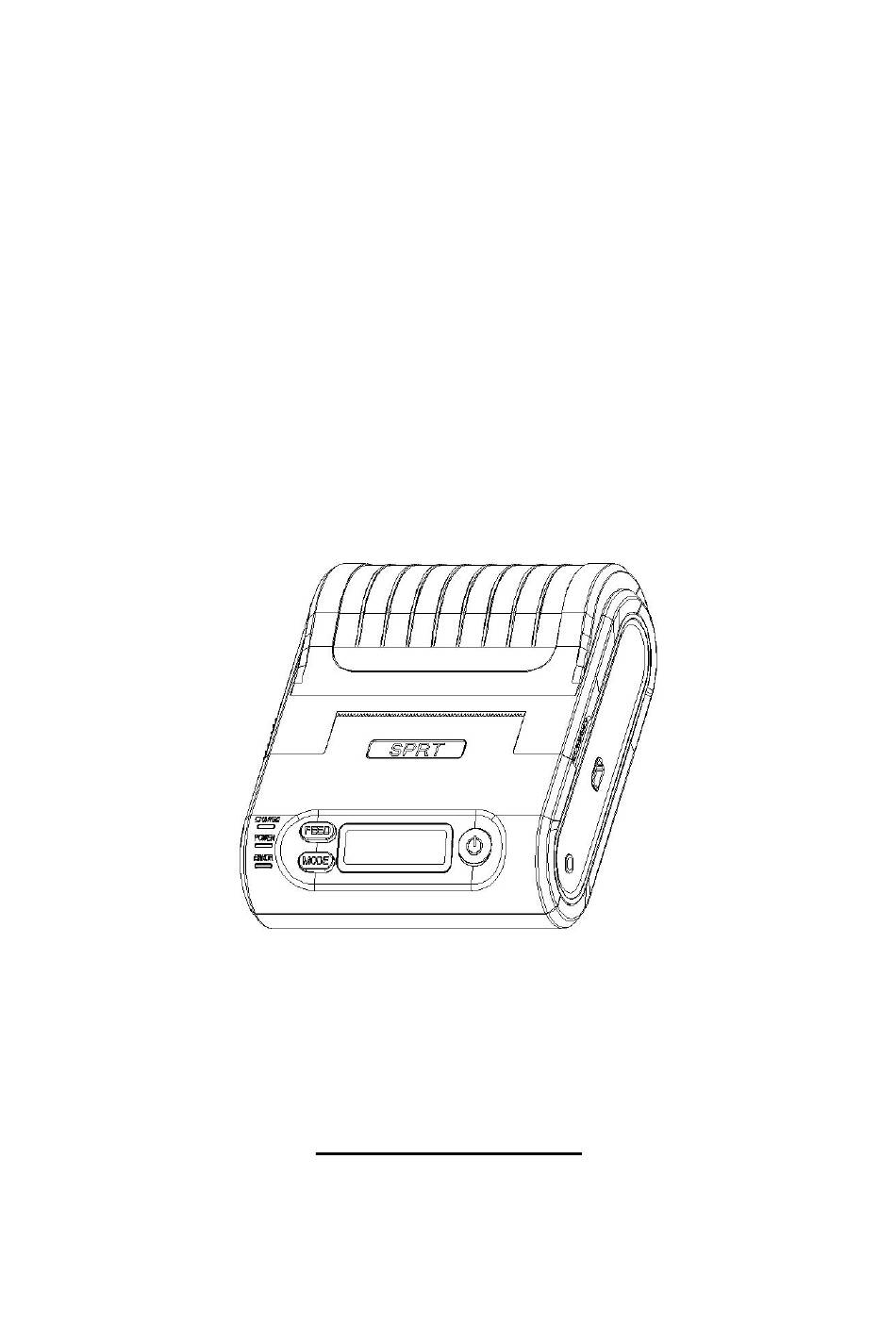

- Page 1 SPRT ® SP-T7 Portable Dot Matrix Printer User’s Manual VER 1.03 Beijing Spirit Technology Development Co., Ltd www.sprt-printer.com...
-
Page 2: Table Of Contents
ONTENTS NOTICE.........................1 Notice of Safety......................1 Notice of Using......................1 Notice of Storing......................1 Declaration........................2 Chapter 1 Appearance and Model No.................2 1.1 Outer Appearance....................2 1.2 Model No.........................2 Chapter 2 Characteristic Specification.................2 2.1 Printing Specification....................2 2.2 Physical parameter....................3 2.3 Environmental parameter..................3 2.4 Other Specification.................... -
Page 3: Notice
NOTICE Please read this manual carefully before using the printer! Notice of Safety Be sure to use the specified battery and power supply provided by our company. Otherwise it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. Don’t put battery into the fire, don’t disassemble or heat the battery, don’t be short circuit, it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. -
Page 4: Declaration
1.1 Outer Appearance 【CHARGE】:Battery Charging Indicator, 【ERROR】: Error Indicator, 【POWER】: power indicator, 【FEED】:Feed Button 【MODE】:Mode Button. 1.2 Model No. SP-T7 Support USB Interface SP-T7BT Support USB and Bluetooth Interface SP-T7BTDM Support USB and Bluetooth Interface SP-T7i Support USB and Bluetooth Interface... -
Page 5: Physical Parameter
Effective Printing Width:48mm； Resolution:5 dot/mm (127dpi)； Dots per line:240 dots； Printing Speed:MAX 14.4 dot lps±20% ( 5.5mm/s)； Paper Thickness:0.06～0.08mm； Character Set: GB18030 and BIG5 (16*16 and 12*12) (Chinese), ASCII (8*16 and 6*12), User-defined ANK set: ASCII, Codepage and International character sets 2.2 Physical parameter Outer Dimension:122（L）×98（W）×47（H）... -
Page 6: Paper Roll Installation
3.1.2 Paper Roll Installation 1. Hold both sides of the paper case cover, and open it. 2. Put in the new paper roll 3. Insert the paper into the feeding part, it’s semi-auto loading. 4. Shut down paper case cover and cut off the redundant paper... -
Page 7: Others
3.1.3 Others Opening and closing instructions: closing slowly by two hands Abnormal operation instructions: No blocking paper on the paper outlet Paper direction: Holding the printer in a flat-wise orientation during printing. Keep steady when running paper. 3.2 Basic function usage 3.2.1 Switch On Press【POWER】button, the power indicator is on, about 1 second later you will hear ‘one low one high ’prompt tone. -
Page 8: Printer Parameters Setting
and print the presentation. Exit hexadecimal printing: The way to quit hexadecimal printing mode is switch off the printer or press the 【FEED】 button for three times. The printer will also print the presentation which shows that the printer have exited hexadecimal printing mode. 3.2.6 Printer Parameters Setting This function may set some simple printing parameters. -
Page 9: Address Binding Of Bluetooth
Bluetooth with two models (IOS 4.0 and Android 4.0 Bluetooth standards). Power class is CLASS 2, effective communication distance is 10 meters. The Bluetooth of the printer belongs to the slave device. The initial name of the printer is “T7 BT Printer”, the initial password is ‘1234’. Users can change the printer name and password by using <T7 Setting Tools>... -
Page 10: One Low One High: Power On
【CHARGE】indicator Green light: fully-charged; Red light: charging; Green and red bi-colour: there are some mistakes, please check whether the battery should be good contact or not, and the temperature of battery is normal or not. 【ERROR】indicator Long bright: printer is out of paper Flashing: flashing several times and constant light, then again flash and light. - Page 11 ① It means the USB interface is available. ② When it shows “ ”, it means RF is usable. When it shows , it means Bluetooth working. If it show nothing, it means wireless interface is useless. Notice:blue teeth and RF interface can not be used together . ③...
-
Page 12: Chapter 4 Other Information
is corresponding with button【FEED】, it is used to chose the setting parameters . is corresponding with button 【MODE】, it is used to chose the setting parameters . After settings, press both 【FEED】 and 【MODE】 buttons to save the settings, and enter the normal switched on situation, or it cannot be saved. -
Page 13: Appendix
Height range: 4mm ≤ height ≤ 6mm Reflectivity of infrared ray : <10% (infrared ray reflectivity of other parts of the black mark paper is > 65%) HPS: it is the distance between edges of black mark and loading position. 4.5mm ≤... - Page 14 Black mode FEED FEED FEED FEED FEED 20mins 30mins 5mins Never FEED Direction : FEED Opposite Normal FEED Back light set : FEED FEED RF Ad: FEED FEED FEED Third Forth Second First FEED FEED FEED FEED FEED Seventh Sixth Fifth Eight Note :RF AD SET...
