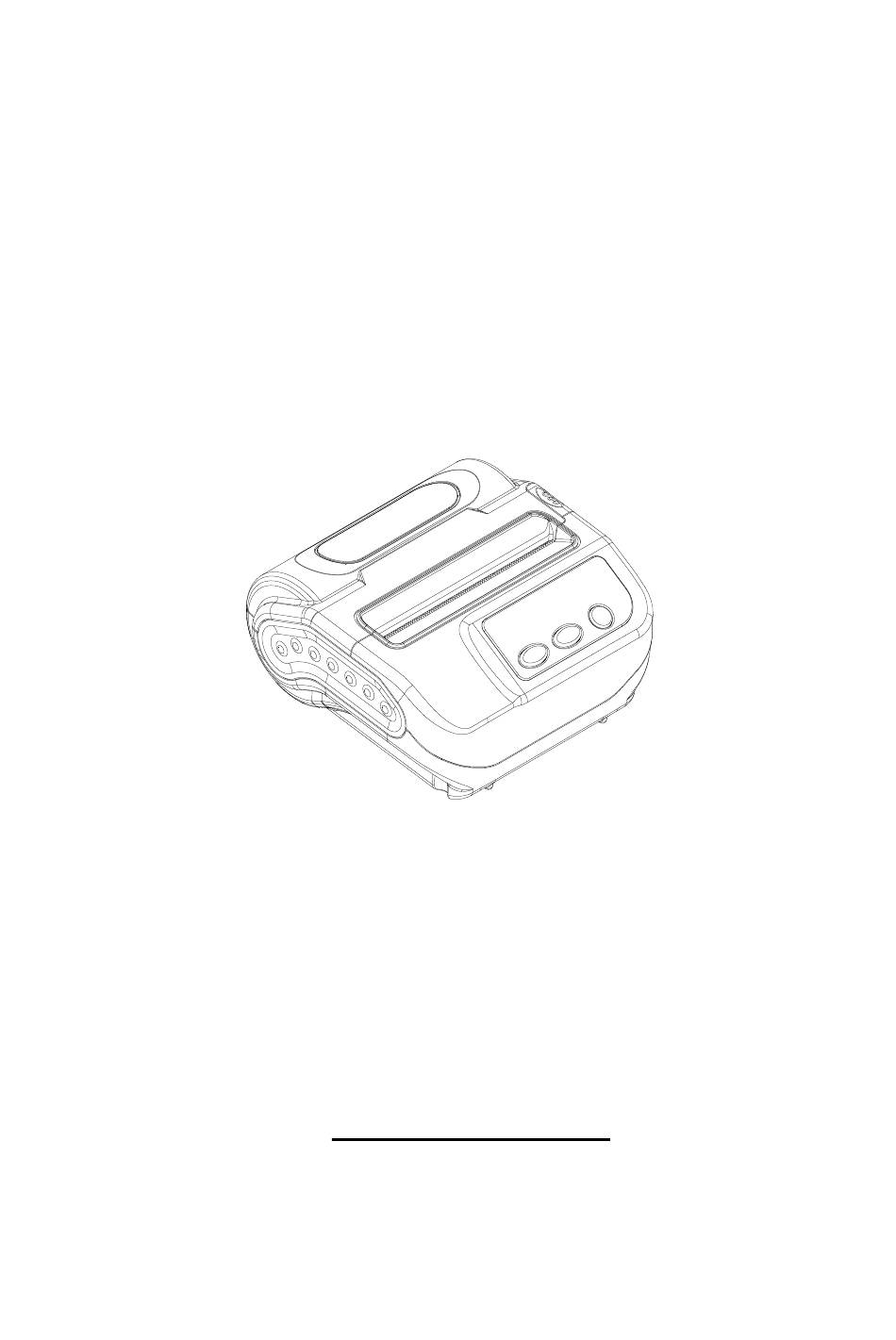

- Page 1 SPRT ® SP-L31 Portable Thermal Printer User’s Manual ( ver 1.03) Beijing Spirit Technology Development Co., Ltd www.sprt-printer.com...
-
Page 2: Table Of Contents
CONTENTS NOTICE........................1 Notice of Safety....................1 Notice of Using..................... 1 Notice of Storing....................2 Chapter 1 Outer Appearance and Model No............3 1.1 Outer Appearance....................3 1.2 Model No........................3 Chapter 2 Characteristic Specification..............5 2.1 Printing Specification................... 5 2.2 Other Specification....................6 Chapter 3 Operation Method................7 3.1 Using Preparation....................7... -
Page 3: Notice
NOTICE Please read this manual carefully before using the printer! Notice of Safety Be sure to use the specified battery and power supply provided by our company. Otherwise it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. Don’t put battery into the fire, don’t disassemble or heat the battery, don’t be short circuit, it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. - Page 4 between-20℃ and 60℃, and the relative humidity is between 10% and 95%. If the printer will be stored for a long time, please be sure to take out the battery, otherwise may damage the battery and printer. Statement This is a Class A product, which may cause radio interference in the living environment. In this case, users may need to take practical measures to interfere with it.
-
Page 5: Chapter 1 Outer Appearance And Model No
Chapter 1 Outer Appearance and Model No 1.1 Outer Appearance [CHARGE]: Battery Charging Indicator [ERROR]: Error Indicator [FEED]: Feed Button [MODE]: Mode Button 1.2 Model No. SP-L31/SP-L31BT4/SP-L31BTDM Support USB and Bluetooth Interface as default... -
Page 6: Chapter 2 Characteristic Specification
Chapter 2 Characteristic Specification 2.1 Printing Specification Printing Method: Thermal line Paper Width: 79.5mm±0.5mm，57.5±0.5mm，44±0.5mm Effective Printing Width: 72mm，48mm，37.5mm； Resolution: 8dots/mm(203dpi) Dots in each line: 79.5mm: 576dots/line 57.5mm: 384dots/line 44mm: 300dots/line Printing Speed: 80mm/s (thermal paper), 67mm/s (label paper) Paper Thickness: 0.06mm~0.08mm(thermal paper) and 0.06-0.15mm (label paper) Printable Content: Character set: GB18030(Chinese) BIG5(traditional Chinese),... -
Page 7: Chapter 3 Operation Method
(Refer to<SP-L31 Printer Command Program Manual >for details). ● Power Supply: 7.4V/1400mAh rechargeable polymer lithium battery. ● Low Power Alarm: When the electric of battery will run out, the battery icon on the printer screen will flash. ● Auto-sleeping: the printer will fall into sleep after in 5 seconds without button operation or receiving data , and can be awaken by pressing 【FEED】... -
Page 8: Others
printing paper face when you install the new paper roll. (Pic.2) 3. Pull out a part of paper and put them in the middle of the paper out orifice. (The end of paper is beyond the tear cutter.) 4. Shut down paper case cover and cut off the redundant paper 5. -
Page 9: Switch On
paper ( 58mm width ) as default under Receipt mode. Black mark paper ( 44mm width ) as default under Invoice model. Standard Mode: Standard 80mm mode, Standard 58mm mode, Standard 44mm mode. Standard thermal paper as default under Standard mode. Set the Printing mode and Paper type by Setting Tool (Way Bill mode and Invoice mode) 3.2.1 Switch On... -
Page 10: Hexadecimal Printing
current setting and status will be printed out. 3.2.5 Hexadecimal Printing The function of hexadecimal printing is to print the information received from host machine by hexadecimal numbers and corresponding characters. It will be convenient to debug application. Into hexadecimal printing: Power off, hold down the【MODE】button and press the power button at the same time. -
Page 11: Battery Charging
At this time, LCD display upgrade mode. Note: Only USB interface supports online program upgrade. 3.3 Printer Parameters Setting Users can set more parameters by using the specified〈SP-L31 Setting Tools〉 software through computer. The setting includes: language、font、printing density、default code page、Bluetooth device name and password, printing mode etc. -
Page 12: Bluetooth Connection
Bluetooth( IOS Bluetooth 4.0 and Android Bluetooth 2.0) . Power class is CLASS 2, effective communication distance is 10meters. The Bluetooth of the printer belongs to the slave device. The initial name of the printer is SP-L31 BT Printer, the initial password is ‘1234’; users can change the printer name and password by using<SP-L31 Setting Tools>... -
Page 13: Buzzer
other Bluetooth device until it unconnected with the host. 3, The power indicator flashing after paired successful. Printer LCD shows the connection state. 3.5 Buzzer There is also a buzzer to indicate various status of the printer. The meanings are as below: One low one high: power on;... -
Page 14: Chapter 4 Other Information
It shows Bluetooth communicating when the printer received data via Bluetooth connection. Chapter 4 Other Information 4.1 Command Programming Manual <SP-L31 Technical Manual> is a technical manual for engineer to develop printer utility, and users can claim our company for it. -
Page 15: Description Of Black Mark Pre-Print
4.2 Description of Black Mark Pre-print If user use pre-print black mark to locate the receipt, please be sure to abide by the following black mark pre-print regulation when print the black mark paper, if not ,it will cause that the printer can not identify the black mark. The black mark pre-print regulations are as below: Printing Position: As the picture above, the black mark should be printed on the right or left edge of the side of words. - Page 16 Appendix A Setting introduction: 【MODE】 button is “set” button， when press it once , the set become the next one and it will print the present set value;【FEED】button to set the set value, when press it once , the set become the next one and it will print the present set value.
- Page 17 Font Setting: Paper sensor sensitivity Setting: 80mm/58mm/44mm Paper Type Setting: Black Mark Location Setting: Power off Setting: Printing Direction Setting:...
- Page 18 Appendix B Setting introduction: 【 MODE】 button is SET button, when press it once, the set become the next one and it will print the present set value;【FEED】button to set the set value, when press it once , the set become the next one and it will print the present set value.
- Page 19 Label Sensor Setting: Put the 80mm label paper directly into printer under Logistics mode ( set as label paper under Standard mode) . Press【MODE】 , adjust the setting items to label sensor setting, then press 【FEED】, the printer will feed paper by 260mm, and print out the self-test paper for max power voltage, min voltage, set threshold voltage and the voltage difference between the max and min voltage.
