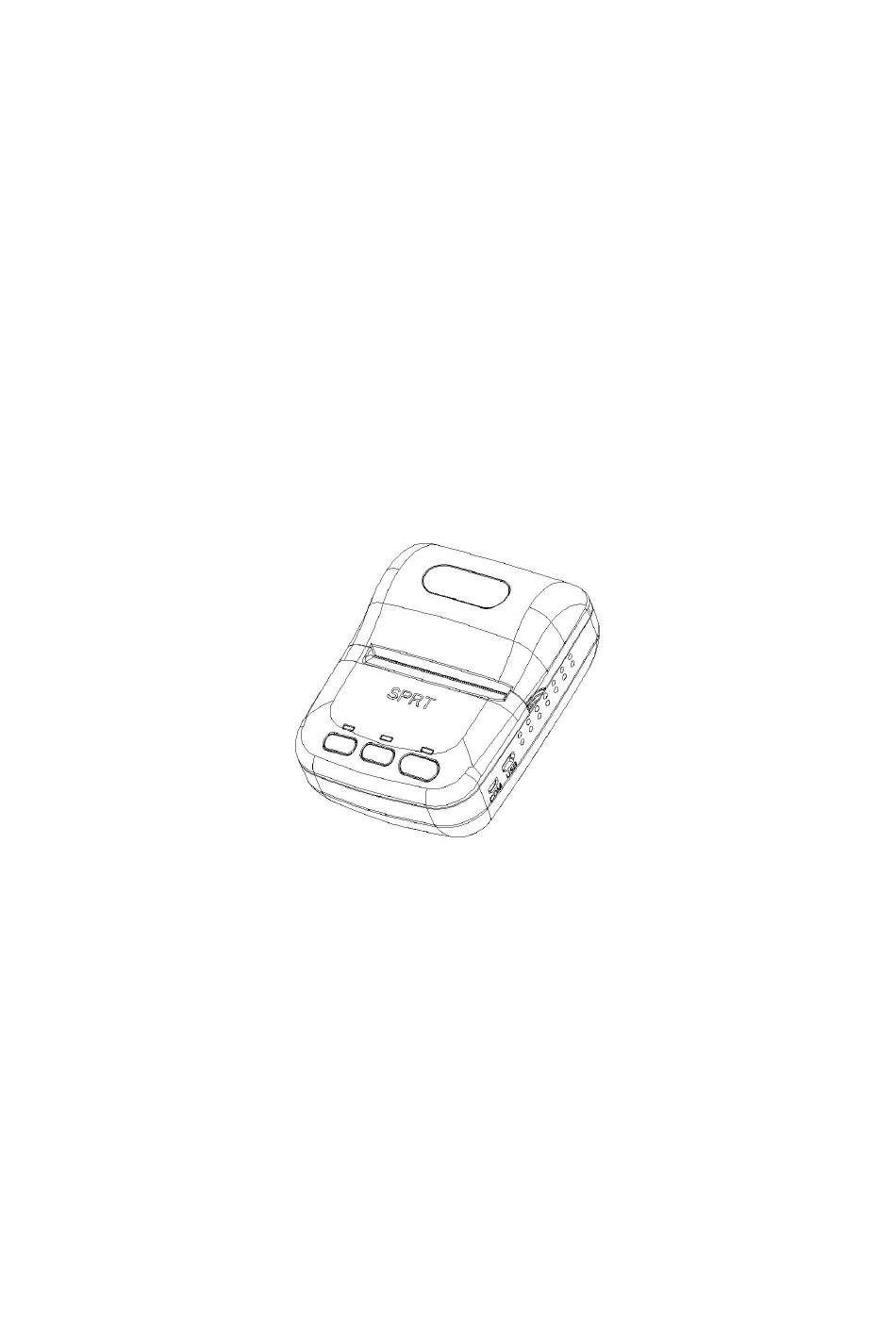

- Page 1 SPRT ® SP-RMT11/L21 Portable Thermal Printer User’s Manual （Ver 1.02） Beijing Spirit Technology Development Co., Ltd www.sprt-printer.com...
-
Page 2: Table Of Contents
Content NOTICE........................1 Notice of Safety......................1 Notice of Using......................1 Notice of Storing......................1 Chapter 1 Outer Appearance and Model No............2 1.1 Outer Appearance....................2 1.2 Model No........................2 SP-L21.......................... 2 Chapter 2 Characteristic Specification..............3 2.1 Printing Specification................... 3 2.2 Physical Parameters.................... -
Page 3: Notice
NOTICE Please read this manual carefully before using the printer! Notice of Safety Be sure to use the specified battery and power supply provided by our company. Otherwise it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. - Page 4 may damage the battery and printer. If the printer will be stored for more than three months, battery should be installed and charged on the printer, which in avoid of battery damage of self discharge. Normal thermal paper receipt can’t be kept too long, if you need to keep the receipt for a long period, please choose long-term effective thermal paper.
-
Page 5: Chapter 1 Outer Appearance And Model No
Chapter 1 Outer Appearance and Model No. 1.1 Outer Appearance 1.2 Model No. SP-T11 BTDM/BTMM–double mode Bluetooth, USB interface supported Blank – just USB, RS-232 interface SP-L21 BTDM–double mode Bluetooth, USB interface supported Blank – just USB, RS-232 interface... -
Page 6: Chapter 2 Characteristic Specification
Chapter 2 Characteristic Specification 2.1 Printing Specification Printing Method: Thermal line Paper Width: 57.5±0.5mm Effective Printing Width: 48mm Resolution: 8dots/mm（203dpi） Dots per line: 384dots Printing Speed: max 100m/s for thermal paper Paper Thickness: 0.06～0.08mm(thermal paper) 0.06~0.15mm(label paper) Printable Content:GB18030, BIG5,GB12345,Shift+JIS, ASCII, custom character set,figure 1DBarcode:UPCA,UPCE,EAN13,EAN8,CODE39,ITF25,CODABAR, CODE93,CODE128... -
Page 7: Chapter 3 Operation Method
mode and buzzer ‘one high one low’ prompt tone. Or printer will auto power off after buzzer ‘one high one low’ prompt tone if in the sleeping mode. ● Auto-sleeping: the printer will fall into sleep after in 2 seconds without button operation or receiving data , and can be awaken by pressing 【FEED】... -
Page 8: Paper Roll Installation
3.1.2 Paper Roll Installation 3.1.3 Others Opening and closing instruction: Pls make sure to open or close the paper case at the same time for right and left side Abnormal operation instructions: The outlet is not allowed to be blocked Place the direction: When printing, hold it horizontally to ensure the stability of the paper roll. -
Page 9: Switch Off
when hearing the ‘one low one high’ prompt tone, then the printer will in working status; the power indicator will be green. Notice: when the battery is almost exhausted, the power indicator will be red, please charge or change the battery if you continue to use the printer. The method of charging the battery, please refer to 3.2.5. -
Page 10: Printer Interface Connection And Printing
Users can set some simple parameter according to the button operation, there are two methods into set mode, and the setting parameters are different. Users can set more parameters by using the attached software with printer 〈T11/L21 Setting Tools〉 through computer. The setting includes:Printer serial Baudrate and data format, black mark, language、font、printing density、... -
Page 11: Bluetooth Connection
type (DEVICE), the outer appearance and pins are as below picture: 3.4.3 Bluetooth Connection Hand-held device, laptop and other information terminal devices with Bluetooth can drive T1BTDM/L21BTDM to print by the Bluetooth interface. T11BTDM/L21BTDM portable printer is compatible with Bluetooth2.0 standard(T11BTDM/L21BTDM is compatible with Bluetooth2.0 regulation and Bluetooth4.0) and power class is CLASS 2, effective communication distance is 10meters. -
Page 12: Indicator And Buzzer
3.5 Indicator and Buzzer There are three indicators - 【POWER】、【BULETOOTH】and 【ERROR】 . 【POWER】 indicator is red or green,【BLUETOOTH】indicator is blue and 【ERROR】 indicators is red. The below are the meanings of indicators: 【ERROR】indicator Constant on red lighting: printer out of paper Red light flashing (twice): it constants on lighting for 5s after flashing twice, , this means over-voltage. - Page 13 abide by the following black mark pre-print regulation when print the black mark paper, otherwise, it will cause that the printer can not identify the black mark. The black mark pre-print regulations are as below: Printing Position: As the picture above, the black mark should be printed on the right edge of the printed side of paper.
-
Page 14: Appendix
Appendix The appendix is usage method to set printer parameters: Setting instruction: Choose setting item through 【 MODE 】 button. Press 【MODE】button once, the setting item will go to the next. item and print the current numberable value of this item. Choose the setting value of setting item through 【FEED】... - Page 15 Font： FEED 12×24 9×17 FEED Density： FEED FEED High Medium FEED Sensor sensibility： FEED FEED High Medium FEED Black mark mode： FEED FEED Black mark position： FEED Left Right FEED...
