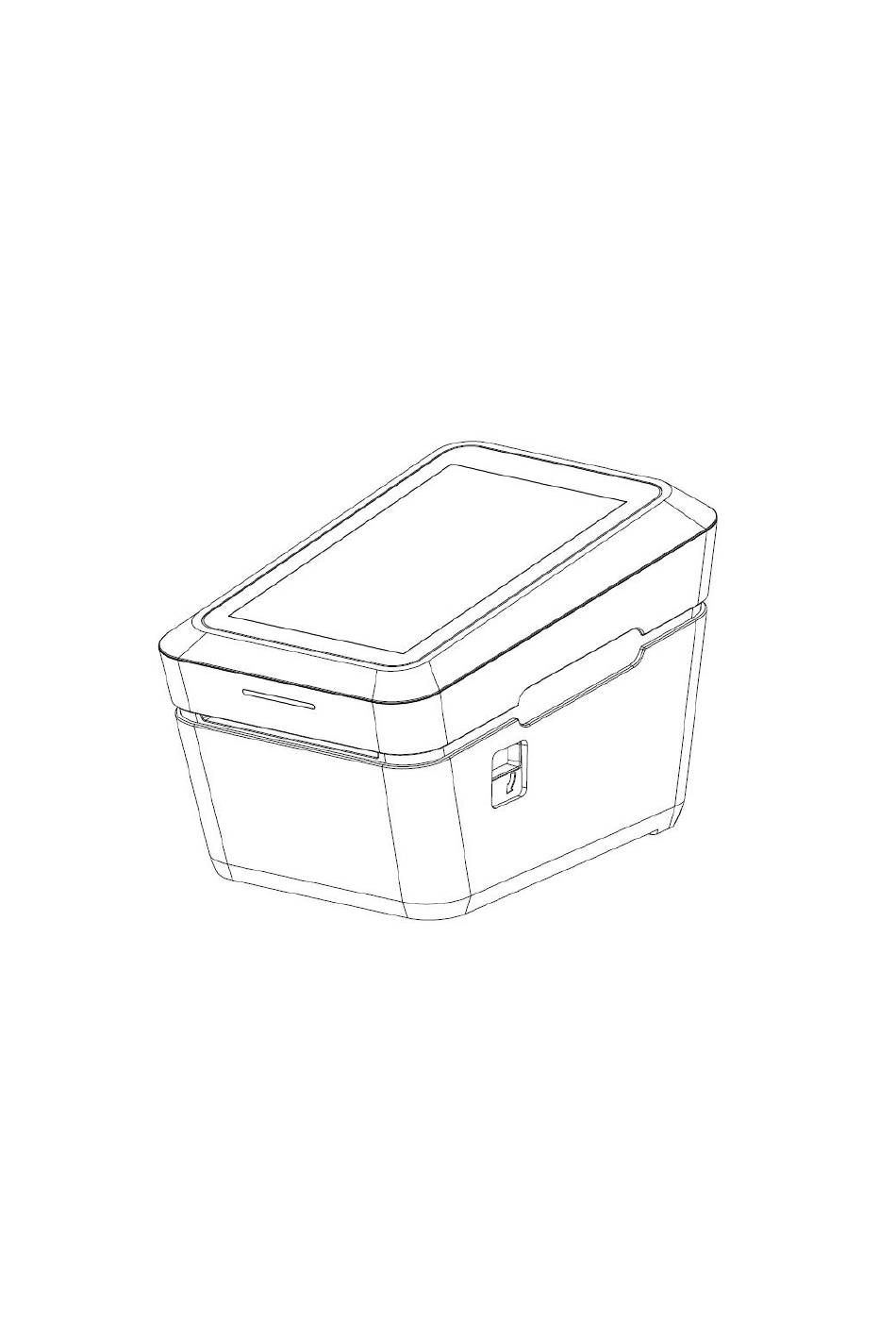

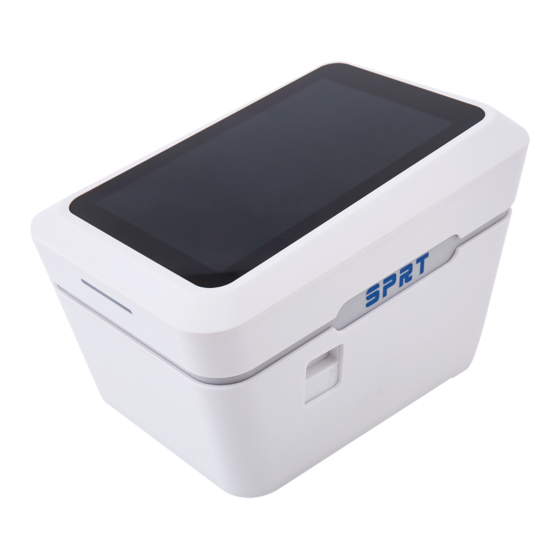

- Page 1 SPRT® All-in-one POS Terminal printer （SP-Y33） （Ver 1.02） Beijing Spirit Technology Development Co., Ltd.
-
Page 2: Table Of Contents
Content Introduction....................错误！未定义书签。 Chapter 1 Feature and Performance..........错误！未定义书签。 1.1 Print Performance....................3 1.2 Print Paper......................3 1.3 Print Font......................... 4 1.4 Interface........................4 1.5 Print Control Commands............错误！未定义书签。 1.6 Power Supply................错误！未定义书签。 1.7 Operation Environment..................5 1.8 Outline Dimension....................5 1.9 Model classification....................5 Chapter 2 Operation Specification............ -
Page 3: Chapter 1 Feature And Performance
Introduction Y33 is suitable for supermarket, catering, photo printing in scenic spot, medical care and data collection industries. 7-inch vertical LCD screen, Android system supports mobile, China Unicom, telecommunications 4G communication network. With 100M wired network port, serial port, Wifi/BT4.0, support USB standard interface, with 200W camera module to support scanning 1D code, 2D code. -
Page 4: Interface
12×24 点,1.5（width）×3.00（height）mm ● Chinese character 24×24,3.00（width）×3.00（height）mm 1.4 Interface ● USB-TypeB interface: One standard USB interface ● Serial port interface 1 serial port, using PS/2 interface ●Ethernet interface: Isolated standard Ethernet interface ● USB-TypeA interface: There are two standard USB host interfaces ●... -
Page 5: Print Control Commands
● DC24V±10％, 2.5A, DC005-2.5 power socket 1.7 Operation Environment ● Operation temperature: 0～50℃; Relative humidity: 10～80％(No condensation) ● Storage temperature: -20～60℃; Relative humidity: 10 ~ 90 %(No condensation) 1.8 Outline Dimension ● 220(L)mm×141(W) mm×142 (H)mm 1.9 Model classification Model Interface SP-Y33 USB-TypeA、Serial、USB-TypeB、Ethernet、Cash drawer interface、Audio output... -
Page 6: Chapter 2 Operation Specification
Chapter 2 Operation Specification 2.1 Printer Appearance 1. Serial 2. Cash drawer interface 3. Ethernet... -
Page 7: Paper Installation
2.2 Paper Installation 2.2.1 Paper Loading Y33 adopts 80mm width thermal paper roll. Steps of Loading Thermal Paper are as below: Press the open button on the right side, open the movable upper cover and put in the paper roll. Draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly. -
Page 8: Ethernet Interface
2.3.2 Ethernet Interface The model with Ethernet interface use RJ45 Network socket. The appearance is as Fig.2-3 shows: Fig.2-3 Ethernet interface 2.3.3 USB Interface The standard accessories of Y33 android printer includes one standard USB cable which connects printer and the main device. The USB type belongs to the slave device type(DEVICE). -
Page 9: Wifi Interface
2.3.5 WIFI interface The connecting way of WIFI interface is the same as phones. Searching WIFI and enter the corresponding authentication password. 2.3.6 SIM card 4G is optional for smart POS terminal. After insult SIM card, Y33 will complete network registration and connect to 4G network automatically when starting up the device. -
Page 10: Power Connection
Signal ground —— 2.3.8 Power Connection The rated supply voltage is 24V ± 10% DC, rated current is 2.5A, use DC005-2.5 power socket, the polarity is positive inside and negative outside. Use the standard power adapter supplied with the printer to supply power. The shape and pin definition are shown in the following figure in Figure 2-6: The pin assignment is as below: Pin No. - Page 11 paper or the paper is near end . The error indicator flashes and the buzzer sounds: the printer has an error. Different types of flashing means different type of error : 1. The error cannot be recovered. the number of flashing lights and the number of buzzer sounds indicate the type of error, and then it lights on for a long time .
-
Page 12: Self-Test
ERROR Indicator Flickering ERROR Type ERROR Description Type Recoverable LED Flash once:Cutter error position error ③. Auto-recoverable error, indicator flash constantly, including printing head over-heat error and upper case cover opening error during printing. ERROR Indicator ERROR Type ERROR Description Flickering Type LED Flash constantly: printing head Auto-recovera... - Page 13 2-7self-test...
-
Page 14: Program Upgrade Mode
2.7 Hexadecimal Printing Turn on the printer according to the step below, it will enter the mode of Hexadecimal Printing 1.Open the cover; 2.Hold down【FEED】button for more than 1s, and then press the paper feed button for 3 times successively; 3.Close the cover, the printer will print out 3 lines as below: Hexadecimal Dump To terminate hexadecimal dump,...
