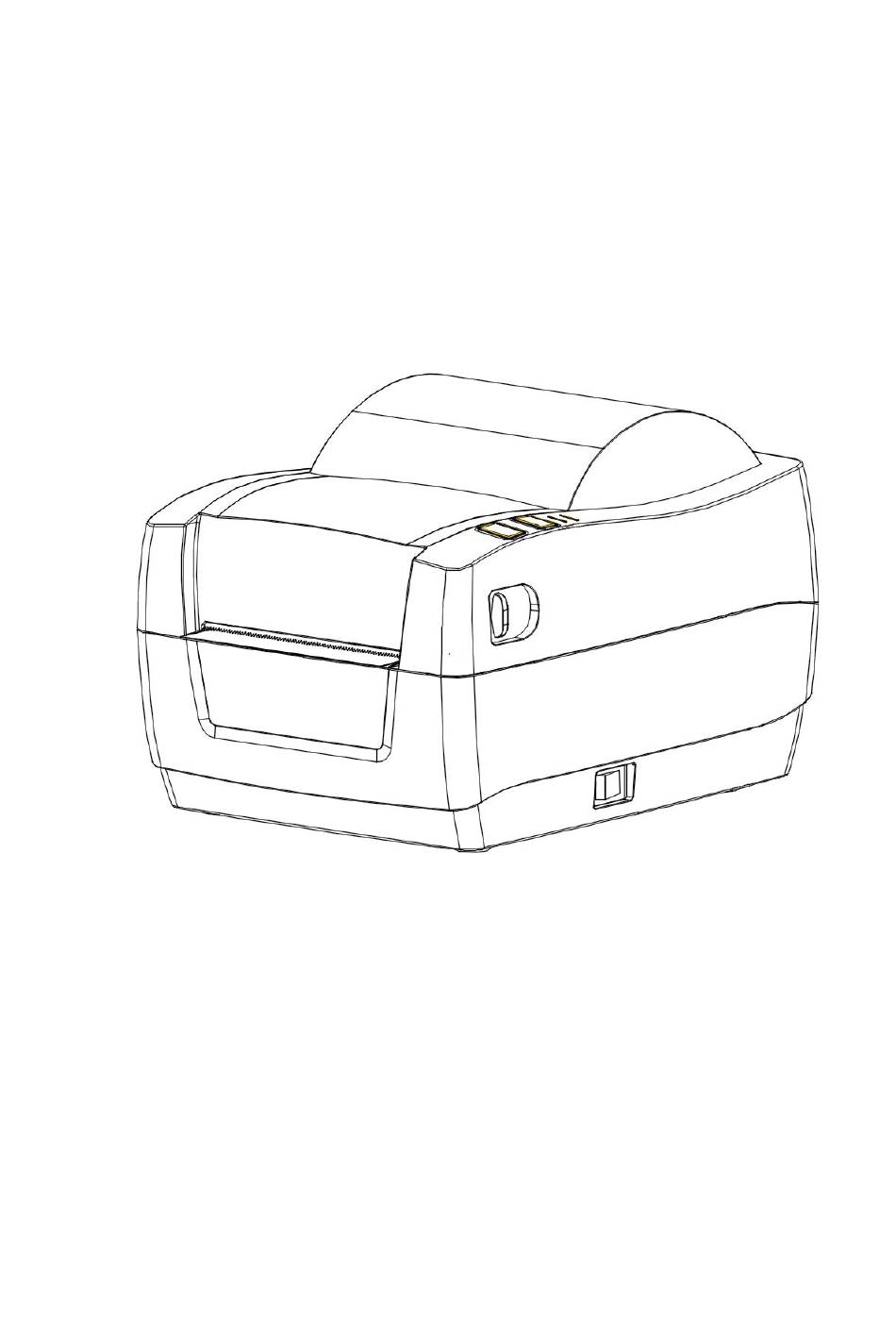

- Page 1 SPRT ® SP-TL51 THERMAL BARCODE PRINTER Users’ Manual （Ver 1.02） Beijing Spirit Technology Development Co., Ltd...
-
Page 2: Table Of Contents
Content Introduction..............................1 Chapter 1 Feature and Function......................1 1.1 Printing Function..........................1 1.2 Print Paper............................1 1.3 Print Font............................2 1.4 Interface............................2 1.5 Print Control Commands.......................2 1.6 Power Supply..........................3 1.7 Operation Environment........................3 1.8 Outline Dimension.......................... 3 1.9 Model classification........................3 Chapter 2 Operation Instruction.......................4 2.1 Printer Appearance........................ -
Page 3: Introduction
Introduction TL51 printer is a new line thermal printer model, with high printing speed, low noise, high reliability, high printing quality, and ribbon needless, avoid daily maintenance trouble. TL51 is with small size, simple operating method, and wide application field, especially for business field like warehousing, logistics, and courier express, etc. -
Page 4: Print Font
Label PaperThickness ---------- 0.12mm～0.20mm(label length ≥3cm, gap≥2mm) Paper type: Normal thermal paper, label paper, black sense paper. ● 1.3 Print Font ANK Character Set: ● 12*24 dot, 1.5(W)*3.00(H)mm, 9*17dot, 1.125(W)*2.125(H)mm Chinese characters: ● 24*24dot, 3.00(W)*3.00(H)mm 1.4 Interface RS－232CSerial Interface: ● DB-25 socket (female), DB-9 socket (female), support XON/XOFF and DTR/DSR protocols. -
Page 5: Power Supply
1.6 Power Supply DC24V±10％, 2A, A-1009-3P power socket. ● 1.7 Operation Environment ●Operation temperature: 0℃～50℃ Relative operation humidity: 10％～80％ ●Storage temperature: -20℃～60℃ Relative storage humidity: 10％～90％ 1.8 Outline Dimension 240mm(L)X180mm(W)X157mm(L) ● 1.9 Model classification Model Interface SP-TL51M RS－232C (DB9 female), USB, Ethernet, 3 in 1 SP-TL51E Only Ethernet(interface board not removable) SP- TL51S... -
Page 6: Chapter 2 Operation Instruction
Chapter 2 Operation Instruction 2.1 Printer Appearance... -
Page 7: Paper Installation
1.Feed button 2. Pause button 3.Error light indicator 4.Power light indicator 5.Transparent paper house 6.Top enclosure body 7. Cover open button 8. Bottom enclosure body 9. Power switch 10. Power socket 11. USB interface 12. DB9 serial interface 13.Ethernet interface Fig 2-1. -
Page 8: Interface Connection
! Caution 1. Pay attention to the direction of loading paper, make the printing Caution! surface face to the print head. 2. Please don’t feed or draw the paper forwards or backwards by hands. 3. Keep clean of the print head, avoid to influence the printing quality. - Page 9 Note: (1)”Source” means the source where signal come from; (2) Signal logic level is EIA. The baud rate and data structure in serial interface mode is 9600bps, 8-bit data bits, no parity bit and 1 stop bit. The serial interface of SP-TL51 can be connected to standard...
-
Page 10: Parallel Interface Connection
RS-232C interface. When it is connected to IBM PC or its compatible machine, connection can refer to Fig.2-6. Fig.2-6 Connection between SP-TL51 and IBM PC Serial Interface Sketch Map 2.3.2 Parallel Interface Connection The parallel interface of SP-TL51 printer is compatible with CENTRONICS, supports BUSY or ACK handshaking protocol. -
Page 11: Power Connection
Pull up to HIGH level signal by a resistor Signal Cover Logic-H Logic “1” level nFault Low level means the printer is at fault 14,15,17 18,34,36 No connection 16,19~30, 33 Grounding, logical 0 level +5V power Fig.2-7 36 Pin assignment of parallel interface The timing chart of interface signal for parallel interface is as Fig.2-8 shows: Fig.2-8 Signal Timing Chart of Parallel Interface 2.3.3 Power Connection... -
Page 12: Indicators, Buzzer And Button Operation
Fig.2-9 Power socket and pin assignment 2.4 Indicators, Buzzer and Button Operation There are two buttons on SP-TL51 printer, one built-in buzzer and two indicators (one power indicator, one error indicator). 【FEED】is paper feeding button, the function of its enabling or disabling the button on/off can be set by print command, when the button is enabled, press【FEED】button, then... -
Page 13: Self-Test
2.5 Normal Power on status Under printer off status, the paper cover closed, then turn on the power switch, the error indicator and power indicator light two times alternately, the printer enters into the normal operation. 2.6 Self-test The self-test will check the condition of printer, if the printer prints out the self-test receipt correctly, it means the printer works normally, except interface with host. - Page 14 Beijing Spirit Technology Development Co., Ltd Add: 4th floor, Building 3, No. 26 Ave. 4, Chuangye Middle Road, Shangdi Information Industry Park, Beijing. Post code: 100085 Tel: +86 010-51661178 Fax: +86 010-51661178-190 Technique support: 010-51661178-182 010-62969379 Customer Service E-mail: support@sprinter.com.cn...
