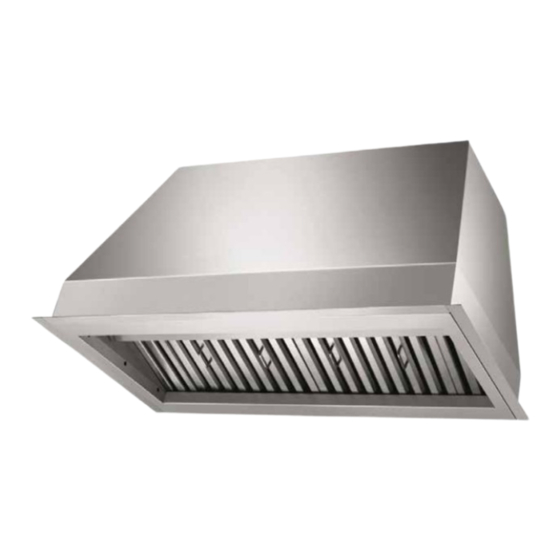

- Page 1 INSTALLATION GUIDE AND USERS MANUAL Insert Range Hood Model Name: TYPHOON Available Sizes: 42”, 48”, 54”, 60” READ AND SAVE THESE INSTRUCTIONS For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference.
-
Page 2: Table Of Contents
Back Exhaust Option................ 24 Wiring Diagram................. 25 Range Hood Operations..............25 Troubleshooting................26 Use and Care Information..............27 Do’s and Don’ts for Vent Ducting............ 27 Maintenance..................28 Bulb Replacement................29 Warranty..................... 30 Disclaimer..................31 Contact Us..................31 VICTORY range hoods | TYPHOON TYPHOON... -
Page 3: Important Safety Notice
Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. VICTORY range hoods TYPHOON TYPHOON... - Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. VICTORY range hoods | Q1 TYPHOON...
-
Page 5: Electrical Requirements
(at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 VICTORY range hoods TYPHOON... -
Page 6: Venting Requirements
• If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 8” minimum • Round - 10” recommended/optional VICTORY range hoods | TYPHOON TYPHOON... -
Page 7: Specifications
Venting Size Top or Back 8” or 10” round exhaust * Subject to change without notice, please contact your local reseller for details. * Subject to change without notice, please contact your local reseller for details. VICTORY range hoods TYPHOON TYPHOON... -
Page 8: Required Tools
(used to gain access t o your light housing t o replace t he Halogen GU10 bulb should your range hood come installed with them. Please refer to Bulb Replacement page for more information). VICTORY range hoods | TYPHOON VICTORY range hoods | TYPHOON... -
Page 9: Parts Supplied
Ø - 10” Transition Ø - 8” Transition (Requested option) Transition Gasket Baffle Filters and Spacers (Amount may vary between models) Filter Handles (Amount may vary between models) Trim Tabs Grease Tunnel (not necessary for installation) VICTORY range hoods TYPHOON TYPHOON... -
Page 10: Dimensions
Ø 8" Transition Optional Ø 10" Transition " 12" FRONT VIEW SIDE VIEW 20" " " 4" BOTTOM VIEW Hood shown: TYPHOON-42 Please refer to next pages for available models and their respective dimensions VICTORY range hoods | TYPHOON TYPHOON TYPHOON... - Page 11 DIMENSIONS (Continued) DIMENSIONS ( Continued ) 4” Model 40 8”- Ø Transition 12” 4” 20” Optional Vent Size ½ ” 10” 4” 8”- Ø Transition 12” 4” 20” Model 46 ½ ” VICTORY range hoods | TYPHOON TYPHOON...
- Page 12 DIMENSIONS (Continued) DIMENSIONS ( Continued ) Model 52 4” 8”- Ø Transition 4” 12” 20” Optional Vent Size ½ ” 10” 4” 8”- Ø Transition 4” 12” 20” Model 58 ½ ” VICTORY range hoods TYPHOON | 13 TYPHOON...
-
Page 13: Preparation
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. 1. Disconnect power cord, remove the stainless steel baffle filter and grease tunnel. 2. Set aside the stainless steel baffle filters and grease tunnel until the range hood is properly installed. VICTORY range hoods | TYPHOON TYPHOON... -
Page 14: Rough-In
8”- Ø Transition shown Wall or roof vent may be installed in these areas (10”- Ø optional) but not recommended. TYPHOON Range Hood NOTE: DO NOT USE threaded drywall anchors to support the hood when mounting the hood 34”, 40”, 46”, 52”, 58”... - Page 15 Top anchor installation holes screw on to plywood brace support. Back installation holes screw on to studs. *Be prepared to drill additonal holes depending on your stud location. Side installation holes screw on to panels. VICTORY range hoods | TYPHOON TYPHOON TYPHOON...
-
Page 16: Installation
(3) Fasten trim pieces on to the front and sides of range hood using M4-4mm countersink screws. These trim pieces may not be necessary depending on the structure and material of housing or cabinet will be built in to. VICTORY range hoods TYPHOON... - Page 17 Ensure that the trim range hood onto brace support and studs. Plug in and check the fan motor and lights are functioning. Be alert of any electrical hazards. VICTORY range hoods | TYPHOON TYPHOON TYPHOON...
- Page 18 INSTALLATION (Continued) INSTALLATION (Continued) INSTALLATION ( Continued ) (6) After mounting range hood to side panels, insert caps into screw holes on both side walls inside the range hood. VICTORY range hoods TYPHOON | 19 TYPHOON TYPHOON...
- Page 19 Use 8” or 10” round steel pipe (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. Use aluminum tape to make all joints secure and air tight. VICTORY range hoods | TYPHOON...
-
Page 20: Grease Tunnel And Filters/Spacers
Slide toward and into the recess behind the front of SIDE VIEW hood while raising the filter at the rear. Lower filter while sliding back until it rests onto Grease Tunnel. VICTORY range hoods TYPHOON | 21 TYPHOON... - Page 21 36” • The system must have a Backdraft Damper. 36” typical * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | TYPHOON TYPHOON...
- Page 22 The controls for the blower may remain on the range hood, or you may have the optional wall switch installed. * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods TYPHOON | 23 TYPHOON...
-
Page 23: Back Exhaust Option
Changing from the top vent to back vent onsite can be difficult. For best performance, an 10” round duct must be used for rear-vent installations. Please contact Victory Range Hoods if you have any further questions. VICTORY range hoods | TYPHOON TYPHOON... -
Page 24: Wiring Diagram
The switch has 5 positions: OFF, SPEED 1,2,3,4. LIGHT SWITCH: Rotate the switches clockwise to switch the lights ON. The light switch allows you to control the intensity of the light via rotary dimmer. VICTORY range hoods TYPHOON | 25 TYPHOON... -
Page 25: Troubleshooting
NO reducers or plenums in the duct work. • Refer to DO’s and DON’TS for DUCT VENTING page for illustrative examples. NOTE: For all other inquiries, please contact Victory Range Hoods. VICTORY range hoods | TYPHOON TYPHOON... -
Page 26: Use And Care Information
DO NOT use plenum boxes. Boxes create turbulence and make the hood inefficient. Use a smooth c. DO NOT use plenum boxes. Boxes create turbulence and make the hood inefficient. Use a smooth elbow to guide the air outdoors. elbow to guide the air outdoors. VICTORY range hoods TYPHOON | 27 VICTORY range hoods... -
Page 27: Maintenance
Dry the filters and re-install before using the hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order replacement filters. VICTORY range hoods... -
Page 28: Bulb Replacement
The inner ring will loosen and the light bulb will be available for removal as shown in Figure (2) • Install a new light bulb and reverse the steps • Turn ON breaker and range hood to test for operation. Figure (1) Figure (2) VICTORY range hoods TYPHOON | 29 TYPHOON... -
Page 29: Warranty
Victory Range Hoods. The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods... -
Page 30: Disclaimer
Toll Free: 1-800-394-4020 info@victoryrangehoods.com 583 Nicola Avenue, Port Coquitam, BC, Canada Toll Free: 1-800-394-4020 The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. info@victoryrangehoods.com VICTORY range hoods TYPHOON | 31 The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. - Page 31 NOTES X2 | TYPHOON...
- Page 32 583 Nicola Avenue | Port Coquitlam | BC | V3B 0M3 Canada www.victoryrangehoods.com...
