INSTALLATION GUIDE
AND USERS MANUAL

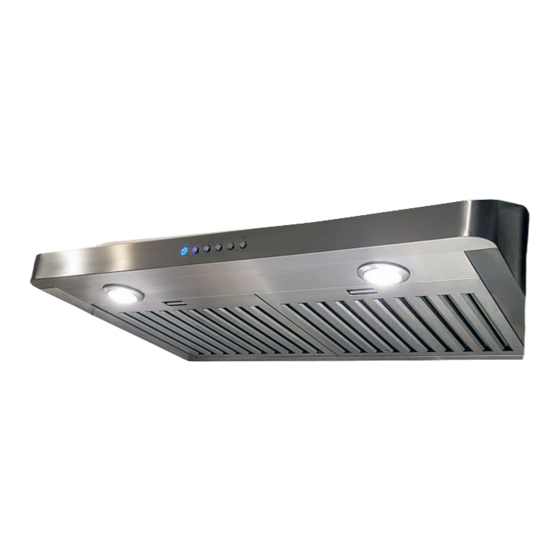

Professional Under Cabinet Range Hood
UC500
Model Name:
Available Sizes:
30", 36"
NOTICE:
For residential use only.
Installer: Leave this guide with the homeowner.
Homeowner: Keep this guide for future reference.
Rev. 3062u.3a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Victory UC500

  • Page 1 INSTALLATION GUIDE AND USERS MANUAL Professional Under Cabinet Range Hood UC500 Model Name: Available Sizes: 30”, 36” NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. Rev. 3062u.3a...
  • Page 2: Table Of Contents

    Installation..................15 Venting Methods................18 Back Vent Option................19 Range Hood Operations..............20 Wiring Diagram................. 21 Troubleshooting................22 Use and Care Information..............23 Maintenance..................24 Bulb Replacement................25 Warranty..................... 27 Disclaimer..................28 Contact Us..................28 VICTORY range hoods | UC500...
  • Page 3: Important Safety Notice

    Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. VICTORY range hoods UC500...
  • Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. VICTORY range hoods | UC500...
  • Page 5: Electrical Requirements

    (at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 VICTORY range hoods UC500...
  • Page 6: Venting Requiremens

    If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 6”. Use Aluminimum foil tape to properly seal. * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | UC500...
  • Page 7: Calculating Duct System Length

    2 x 35W halogen / 2 x 5W LED, GU10, 120V Venting Size Top or Back, 9 ¾” x 3 ⅛” Rectangular Exhaust Warranty 1 YEAR ( parts warranty ) * Subject to change without notice, please contact Victory Range Hoods for details. VICTORY range hoods UC500...
  • Page 8: Required Tools

    REQUIRED TOOLS Marker or Pencil Putty Knife Tape Measure Phillips and Flathead Screwdriver Level Power Drill Aluminum Tape Utility Knife Drywall Knife VICTORY range hoods | UC500...
  • Page 9: Parts Supplied

    PARTS SUPPLIED 10” x 3” Connector with damper Range Hood Model UC500-30 Baffle Filters (x2) VICTORY range hoods UC500...
  • Page 10: Dimensions

    DIMENSIONS TOP VIEW Exhaust Connector optional placement 1” Exhaust Connector 7” 29 ½” FRONT VIEW SIDE VIEW 9 ¾” 5” Exhaust BACK VIEW Connector Hard-wired Port Exhaust Connector optional placement BOTTOM VIEW VICTORY range hoods | UC500...
  • Page 11 DIMENSIONS ( continued ) UC500-30 ¾ ” ¾ ” 1” 5” 29 ½” UC500-36 ¾ ” ¾ ” 1” 5” 35 ½” VICTORY range hoods UC500 | 11...
  • Page 12: Preparation

    12” of electrical cord hanging from the ceiling. Do not restore power until wiring is completed. 7. Disconnect power cord, remove the stainless steel baffle filter and grease tunnel. 8. Set aside the stainless steel baffle filters and grease tunnel until the range hood is properly installed. VICTORY range hoods | UC500...
  • Page 13: Pre-Install

    Preferred areas to install wall or roof vent ducting. Wall or roof vent may be installed in these areas UC500 Range Hood but not recommended. (2)(a) Use a flathead screwdriver to insert into slot 30”, 36”...
  • Page 14 Ensure you have ⅞” space from wall to your cut out to accommodate the size of connector for ducting. 6”-Ø Duct (not included) 6”-Ø Elbow Duct Transition from rectangular (not included) connector to 6”-Ø Duct (not included) Exhaust Connector from UC500 range hood VICTORY range hoods | UC500...
  • Page 15: Installation

    Be alert of any electrical Connect the range hood’s electrical wiring and check the fan motor and lights are functioning. hazards and refer to the product label for the suitable voltage of this unit. VICTORY range hoods UC500 | 15...
  • Page 16 Use 6” round steel pipe to connect the exhaust on the Ensure the cylinder duct passes through, leading to the hood to the ductwork above. Use aluminum foil tape to roof cut out for exhaust connecting duct. make all joints secure and air tight. VICTORY range hoods | UC500...
  • Page 17 While continuing to install the filter, ensure you lift the lever for the retractable tabs to clear way for flush insertion. When filter sits flush within the opening, release the lever to lock in place. Tab Inserts VICTORY range hoods UC500 | 17...
  • Page 18: Venting Methods

    Min height: 82” from bottom of duct to ground when range height to stove is 30” 36” Wall Vent typical Roof Vent * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | UC500...
  • Page 19: Back Vent Option

    (b) Ensure when you fasten the exhaust connector at the back of the range hood that the damper (flap) hinge is at the top (refer to pre-install for screws and assembly). NOTE: Remove damper (flap) if you will be using a roof or wall cap that already has a built-in damper included. VICTORY range hoods UC500 | 19...
  • Page 20: Range Hood Operations

    Press the FAN On/Off/Timer button once to turn off the power and cancel timer mode. Turn On/Off Lights: • Press the Light Switch button to power on/off the lights. CAUTION: DO NOT touch the lights until switched OFF and cooled. VICTORY range hoods | UC500...
  • Page 21: Wiring Diagram

    WIRING DIAGRAM VICTORY range hoods UC500 | 21...
  • Page 22: Troubleshooting

    Check if all joints are properly con- nected, sealed, and taped. • Make sure the power is on high speed for heavy cooking. NOTE: For all other inquiries, please contact Victory Range Hoods. VICTORY range hoods | UC500...
  • Page 23: Use And Care Information

    DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before proceeding. VICTORY range hoods UC500 | 23...
  • Page 24: Maintenance

    Dry the filters and re-install before using the hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order replacement filters. VICTORY range hoods...
  • Page 25: Bulb Replacement

    Twist the connector cap off, and dislodge from electrical tether. LED Bulb is model: GU10. Contact Victory Range Hood and place an order, or you may purchase at your nearest hardware store. VICTORY range hoods UC500...
  • Page 26 To re-assemble, simply reverse the steps press the bulb housing carefully and firmly into the recess, until you hear a positive snap. *Observe all safety precautions before you proceed to turn ON breaker and range hood to test for operation. VICTORY range hoods | UC500...
  • Page 27: Warranty

    Victory Range Hoods. The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods...
  • Page 28: Disclaimer

    Toll Free: 1-800-394-4020 info@kitchenhoods.ca The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods | UC500...
