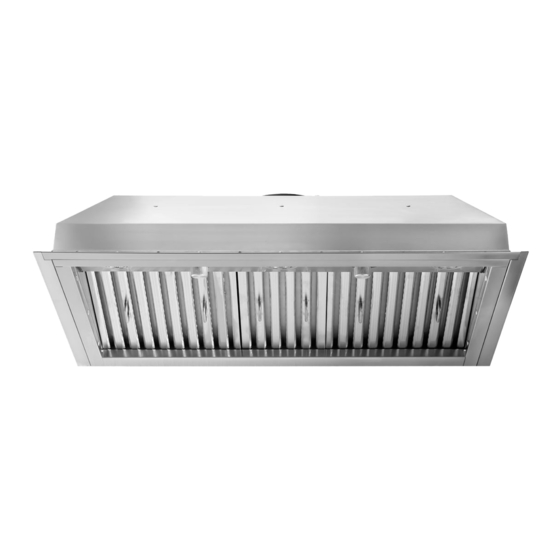

- Page 1 INSTALLATION GUIDE AND USERS MANUAL NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. Professional Built-In Range Hood STAR Model Name: Available Sizes: 36”, 42”, 48” Rev. 3062u.3a...
-
Page 2: Table Of Contents
Installation Options................13 Pre-Installation.................. 14 Installation..................16 Venting Methods................21 Wiring Diagram................. 23 Range Hood Operations..............23 Troubleshooting................24 Use and Care Information..............25 Maintenance..................26 Bulb Replacement................27 Warranty..................... 28 Disclaimer..................29 Contact Us..................29 VICTORY range hoods | STAR... -
Page 3: Important Safety Notice
Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. VICTORY range hoods STAR... - Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. VICTORY range hoods | STAR...
-
Page 5: Electrical Requirements
(at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 VICTORY range hoods STAR... -
Page 6: Venting Requirements
• If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 8” VICTORY range hoods | STAR... -
Page 7: Calculating Duct System Length
Stainless Steel Baffle Filters Control Type Mechanical, Rotary Switches Illumination Dimmable: 35W GU10 Bulbs (or LED 3W) Venting Size Top 8” round exhaust * Subject to change without notice, please contact your local reseller for details. VICTORY range hoods STAR... -
Page 8: Required Tools
Level Aluminum Tape PARTS SUPPLIED Screw Hole Cap (x12 to cover screws on trim tabs) (Amount may vary between models) Inner Ring Light Key (used to gain access to your light housing to replace bulb) VICTORY range hoods | STAR... -
Page 9: Parts Supplied
PARTS SUPPLIED ( Continued) Mounting Brackets STAR 36 Range Hood Trim Tabs (Range hood can be installed with or without trim) Grease Tunnel Baffle Filters and Spacers (Amount may vary between models) VICTORY range hoods STAR... -
Page 10: Dimensions
DIMENSIONS Top View Ø 8” Transition Hood shown: STAR 36 Please refer to next pages for available models and their respective dimensions 27 ½” 33” Front View Side View 12” 10” 3” 19 ⅝” Bottom View VICTORY range hoods | STAR... - Page 11 19 ⅝” 35 ⅜” 20 ¾” 1 ¼” 3 ½” 14 ⅛” 2” Model 42 3 ½” 1” 8”- Ø Duct 12” 33 ½” 10” 3” 39” 41 ⅜” 19 ⅝” 20 ¾” 1 ¼” VICTORY range hoods STAR | 11...
-
Page 12: Preparation
BEFORE INSTALLING THE RANGE HOOD, CHECK FOR PHYSICAL DAMAGES. THIS RANGE HOODS COMES WITH A WIRE AND PLUG. TEST THE HOOD BEFORE INSTALLATION. If there is a grinding noise coming from the motor, DO NOT INSTALL IT, contact us as soon as possible. VICTORY range hoods | STAR... -
Page 13: Installation Options
2. Set aside the stainless steel baffle filters and grease tunnel until the range hood is properly installed. INSTALLATION OPTIONS OPTION 1: OPEN CUPBOARD OPTION 2: CLOSED BOX Using mounting brackets and woodblocking, no Using woodblocking only. No mounting brackets. trim necessary. Install with trim. (Page 19 for details) VICTORY range hoods STAR | 13... -
Page 14: Pre-Installation
Wall or roof vent may be installed in these areas but not recommended. 8” Ø Transition Ensure there is space to allow 2” x 4” STAR-36 Range Hood woodblocking. This is needed to screw woodscrew anchors to secure install. The designer will determine... - Page 15 NOTE: DO NOT USE threaded drywall anchors to support the hood when mounting the hood on sheet rock. Mounting the hood on wall studs or lumbars is highly recommended. VICTORY range hoods STAR | 15...
-
Page 16: Installation
(5) Fasten with #8 1-⅛“ (minimum) woodscrews (not CAUTION: Range hood is not fully secure, do included) from the inner back panel of the range not release. Maintain hold while preparing to add hood into the measured pre-drilled installation holes. anchor screws VICTORY range hoods | STAR... - Page 17 (7) Insert anchor screws through the side and front installation holes fastening the range hood to the woodblock. CAUTION: Make certain the range hood is secure before releasing! VICTORY range hoods STAR | 17...
- Page 18 Plug in and check the fan motor and lights are functioning. Be alert of any electrical hazards. VICTORY range hoods | STAR...
- Page 19 1. Install your preferred duct system (elbow or straight duct) 2. Install your electrical outlet for power 3. Attach a flex-duct to manage the attachment between duct system and range hood transition 4. Plug in your range hood VICTORY range hoods STAR | 19...
- Page 20 Place Grease Tunnel into the hood opening and insert into slot holding. Baffle Filters Filters will vary in size and Lower filter while sliding back amount depending until it rests onto Grease Tunnel. on model. VICTORY range hoods | STAR...
-
Page 21: Venting Methods
Min height: 81” from bottom of duct to ground when range height to stove is 30” 36” typical Wall Vent Roof Vent * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods STAR | 21... - Page 22 Wall Vent Cap Power Outlet Min: 85” Optional Outdoor from floor Remote Blower Roof Vent Roof Vent with Remote Blower * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | STAR...
-
Page 23: Wiring Diagram
The switch has 5 positions: OFF, SPEED 1,2,3,4. LIGHT SWITCH: Rotate the switches clockwise to switch the lights ON. The light switch allows you to control the intensity of the light via rotary dimmer. VICTORY range hoods STAR | 23... -
Page 24: Troubleshooting
Check if all joints are properly con- nected, sealed, and taped. • Make sure the power is on high speed for heavy cooking. NOTE: For all other inquiries, please contact Victory Range Hoods. VICTORY range hoods | STAR... -
Page 25: Use And Care Information
DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is recommended to be performed by qualified personnel only. Read and un- derstand all instructions and warnings in this manual before proceeding. VICTORY range hoods STAR | 25... -
Page 26: Maintenance
Dry the filters and re-install before using the hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order replacement filters. VICTORY range hoods... -
Page 27: Bulb Replacement
The inner ring will loosen and the light bulb will be available for removal as shown in Figure (2) • Install a new light bulb and reverse the steps • Turn ON breaker and range hood to test for operation. Figure (1) Figure (2) VICTORY range hoods STAR | 27... -
Page 28: Warranty
Victory Range Hoods. The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods... -
Page 29: Disclaimer
Toll Free: 1-800-394-4020 info@kitchenhoods.ca The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods STAR | 29... - Page 30 583 Nicola Avenue | Port Coquitlam | BC | Canada | V3B 0M3 www.kitchenhoods.ca...
