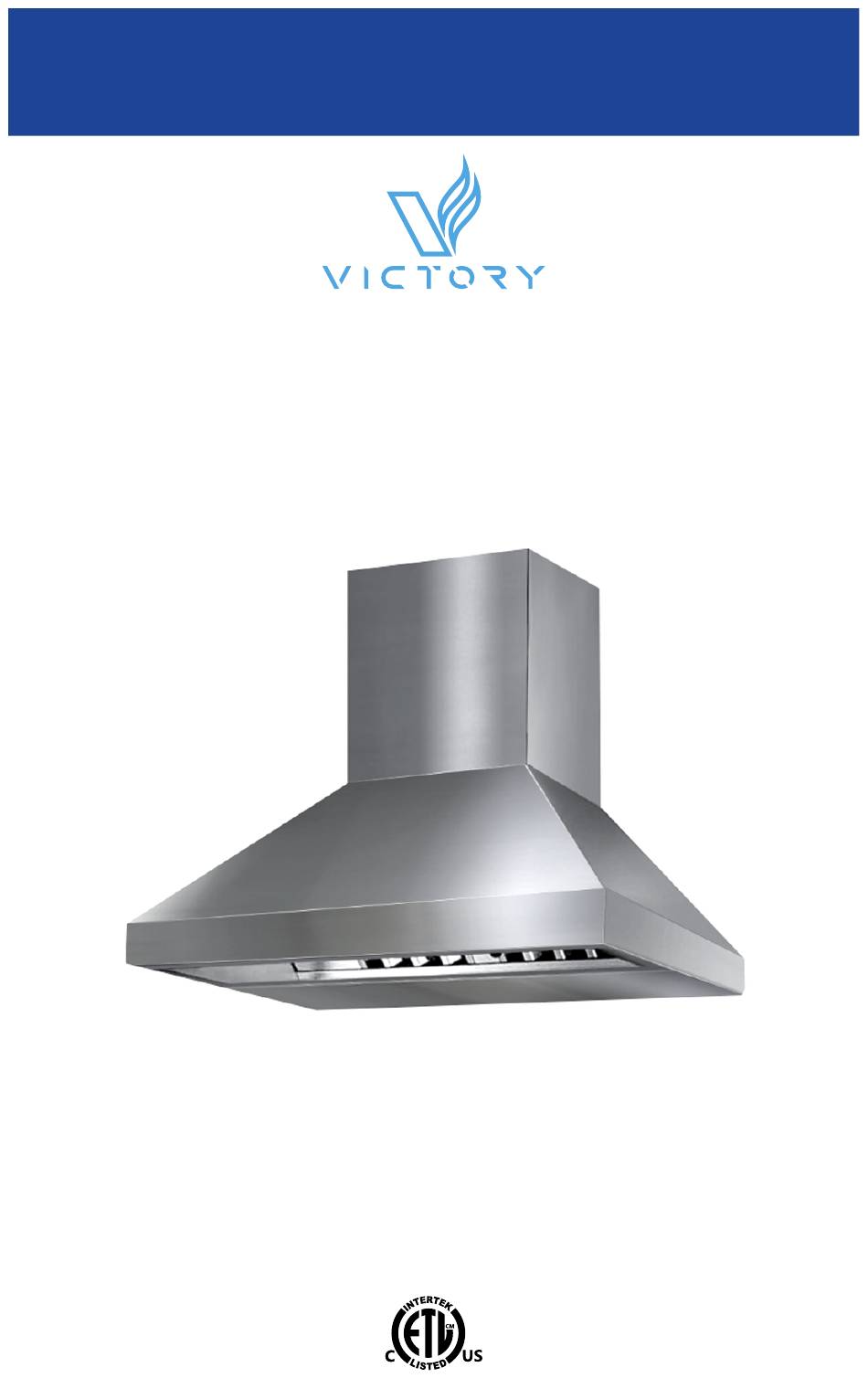

- Page 1 INSTALLATION GUIDE AND USERS MANUAL Professional Wall-Mount Range Hood TWISTER BBQ Model Name: 36”, 42”, 48” Available Sizes: READ AND SAVE THESE INSTRUCTIONS For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference.
-
Page 2: Table Of Contents
Grease Tunnel & Filters..............17 Venting Methods................18 Back Exhaust Option............... 19 Wiring Diagram................. 20 Range Hood Operations..............20 Troubleshooting................21 Do’s and Don’ts for Duct Venting............ 22 Bulb Replacement................23 Maintenance..................24 Warranty..................... 25 Disclaimer..................26 Contact Us..................26 | TWISTER BBQ... -
Page 3: Important Safety Notice
• Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. TWISTER BBQ | 3... - Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. | TWISTER BBQ...
-
Page 5: Electrical Requirements
(at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 TWISTER BBQ | 5... -
Page 6: Venting Requiremens
If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 8” minimum • Round - 10” recommended/optional * Due to different ceiling height configurations, recommended height may not be applicable. | TWISTER BBQ... -
Page 7: Calculating Duct System Length
4 x 35W or 6 x 35w GU10, 120V Dimmable (LED Optional) Ducting Size Top or Back 8” or 10” Duct Options Warranty 5 YEARS ( parts warranty ) Subject to change without notice, please contact your local reseller for details. TWISTER BBQ | 7... -
Page 8: Required Tools
Drywall Power Knife Knife Knife Drill Tape Phillips Measure Screwdriver Level Aluminum Tape PARTS SUPPLIED NOTE: Where necessary, additional screws will be needed for installation and added support, but is not included. Please review contents before installation. | TWISTER BBQ... - Page 9 Install Bracket (for Top Exhaust) Grease Tunnel (for Back Exhaust) Ø - 10” Transition (Requested option) Filter Handles (Amount may vary between models) Range Hood Baffle Filters (x3 for Model 36) (x4 for Models 42 and 48) TWISTER BBQ | 9...
-
Page 10: Dimensions
DIMENSIONS TOP VIEW Ø 10” Ø 8” Optional Transition Transition FRONT VIEW SIDE VIEW 17” 12” 4” 27” BOTTOM VIEW Hood shown: Model 36 Please refer to next pages for available models and their respective dimensions | TWISTER BBQ... - Page 11 DIMENSIONS (Continued) Optional Transition 10”- Ø 12” 4” Ø - 8” Transition 4” 27” TWISTER BBQ | 11...
-
Page 12: Preparation
4. Place all supplied parts and required hardware on a flat, stable surface and verify the existence of all supplied parts. 5. Carefully remove the white/blue plastic protective coat from the chimney covers and range hood if any. | TWISTER BBQ... -
Page 13: Rough-In
(not included) in to the studs for additional support. NOTE: DO NOT USE threaded drywall anchors to support the hood when mounting the hood on sheetrock. Mounting the hood on wall studs or lumbars is highly recommended. TWISTER BBQ | 13... -
Page 14: Installation
(1) Use M5 - 5mm countersink screws to fasten (2) Use M5 - 5mm big head screws to fasten on on the L-shaped install bracket to the top of the 8”-Ø transition (10”-Ø transition optional) to the range hood. opening of the fan motor exit. | TWISTER BBQ... - Page 15 Before connecting wires, switch power off at service panel and lock service panel to preduct power from being switched on accidentally. TWISTER BBQ | 15...
- Page 16 (5) Install both chimneys and tighten screws to To avoid scratching the chimney, extend secure the lower chimney to the range hood. the upper chimney slowly and carefully to the chimney-mounting bracket and fasten M4-4mm big head screws. | TWISTER BBQ...
-
Page 17: Grease Tunnel & Filters
SIDE VIEW Slide toward and into the recess behind the front of hood while raising the filter at rear. Lower filter while sliding back until it rests onto Grease Tunnel. TWISTER BBQ | 17... -
Page 18: Venting Methods
Wall Vent Motor Roof Vent *Min height: 81” from bottom of duct to ground when range height to grill is 28” Min height: 87” from bottom of duct to ground when range height to grill is 36” | TWISTER BBQ... -
Page 19: Back Exhaust Option
Changing from the top vent to back vent onsite can be difficult. For best performance, a 10” transition and round duct is recommended for rear-vent installations. Please contact Victory Range Hoods if you have any further questions. TWISTER BBQ | 19... -
Page 20: Wiring Diagram
The switch has 5 positions: OFF, SPEED 1,2,3,4. LIGHT SWITCH: Rotate the switches clockwise to switch the lights ON. The light switch allows you to control the intensity of the light via rotary Typical rotary switch dimmer. | TWISTER BBQ... -
Page 21: Troubleshooting
• The duct size must be 8”, or larger. Please make sure there are NO reducers or plenums in the duct work. • Refer to DO’S and DON’TS for DUCT VENTING page for illustrative examples. NOTE: For all other inquiries, please contact Victory Range Hoods. TWISTER BBQ | 21... -
Page 22: Do's And Don'ts For Duct Venting
DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before proceeding. | TWISTER BBQ... -
Page 23: Bulb Replacement
Twist the connector cap off, and dislodge from electrical tether. LED Bulb is model: GU10. Contact Victory Range Hood and place an order, or you may purchase at your nearest hardware store. to (3). To re-install, simply reverse the steps... -
Page 24: Maintenance
Rinse with water after exposure and wipe dry with a clean cloth. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order replacement filters. Replacing the light bulb: •... -
Page 25: Warranty
Victory Range Hoods. The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. TWISTER BBQ | 25... -
Page 26: Disclaimer
Toll Free: 1-800-394-4020 info@victoryrangehoods.com The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. | TWISTER BBQ... - Page 27 NOTES TWISTER BBQ | 27...
- Page 28 583 Nicola Avenue | Port Coquitlam | BC | Canada | V3B 0M3 www.victoryrangehoods.com...
