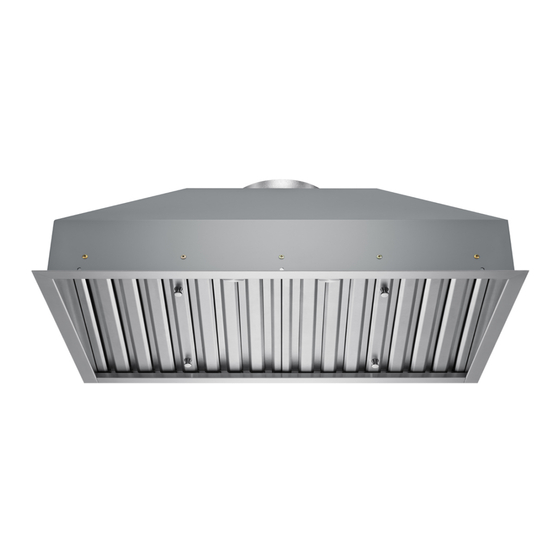

- Page 1 INSTALLATION GUIDE AND USERS MANUAL PROFESSIONAL BUILT - IN RANGE HOOD Model Name: 30”, 36”, 42”, 48” Available Sizes: NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. Rev.20230406...
-
Page 2: Table Of Contents
Venting Methods................19 Back Exhaust Option................ 20 Wiring Diagram................. 21 Range Hood Operations..............21 Troubleshooting................22 Do’s and Don’ts for Duct Venting............ 23 Use and Care Information..............23 Maintenance..................24 Bulb Replacement................25 Warranty..................... 27 Disclaimer..................28 Contact Us..................28 | Q5... -
Page 3: Important Safety Notice
• Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. Q5 | 3... - Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. | Q5...
-
Page 5: Electrical Requirements
(at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 Q5 | 5... -
Page 6: Venting Requirements
• If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 6” minimum • Round - 8” recommended/optional | Q5... -
Page 7: Calculating Duct System Length
Optional) Venting Size Top or Back 6” or 8” round exhaust Weight (Size: kg) 30”: 18.5kg / 36”: 21kg / 42”: 23.5kg / 48”: 26kg Subject to change without notice, please contact your local reseller for details. Q5 | 7... -
Page 8: Required Tools
Ø - 8” Transition (Requested option) Grease Tunnel Range Hood Also available in 36”, 42”, 48” Models (30” Model) NOTE: Where necessary, additional screws will be needed for installation and added support, but is not included. Please review contents before installation. | Q5... -
Page 9: Dimensions
18 ¼” 19 ¼” Optional Transition 28 ¼” 29 ¼” 10” 13 ¾” FRONT SIDE VIEW VIEW 13” 4 ¾” Hood shown: Q5-30 Please refer to next pages for available models and their respective dimensions BOTTOM VIEW Q5 | 9... - Page 10 DIMENSIONS (Continued) 6”- Ø Transition 3 ½” Model: Q5-30 10” 13 ¾” 13” 28 ¼” 4 ¾” 18 ¼” 29 ¼” Optional Transition 19 ¼” for all models 8” 6”- Ø Transition 3 ½” Model: Q5-36 10” 13 ¾” 13”...
- Page 11 40 ¼” 4 ¾” 18 ¼” 41 ¼” Optional 19 ¼” Transition for all models 8” 3 ½” 6”- Ø Transition Model: Q5-48 13 ¾” 10” 45 ¾” 13” 47 ” 4 ¾” 18 ¼” 19 ¼” Q5 | 11...
-
Page 12: Preparation
DO NOT CLOSE THE BOX AROUND THE HOOD UNTIL THE TEST HAS BEEN PERFORMED. Victory Range Hoods Inc. will not be responsible for additional labour costs related to reinstallation of the hood due to transportation internal damage or wiring issues. -
Page 13: Rough-In
120v Outlet can be located here 6” Transition Q5 Range Hood The designer will determine width and depth of the cabinet housing to encase the range hood model selected. Metal, wood, or stone panels Min: 24”... - Page 14 Studs behind the wall 16” spacing Cut out drywall for plywood brace support Metal, wood, or stone panels may be used to build a closed cabinet surround and should accommodate the bottom lip of the range hood | Q5...
- Page 15 Top anchor installation holes SIDE VIEW BACK VIEW screw on to plywood brace support. Back installation holes screw on to studs. Side installation holes screw on to panels. Q5 | 15...
-
Page 16: Installation
Plug in and check the fan motor and lights are functioning. Be alert of any electrical hazards. | Q5... - Page 17 Use aluminum tape to make all joints secure and air tight. Complete the build of the cabinet surround ensuring the lip of the range hood fits flush to the bottom of the cabinet. Q5 | 17...
- Page 18 INSTALLATION (Grease Tunnel & Filters) BOTTOM VIEW Peel off protective film from front, prior to fastening screws to handle knobs. Grease Tunnel Place Grease Tunnel into the hood opening and insert into slot holding, as shown above and below. SIDE VIEW | Q5...
-
Page 19: Venting Methods
24” 36” Min height: 84½” typical from bottom of duct to ground when range height to stove is 30” * Due to different ceiling height configurations, recommended height may not be applicable. Q5 | 19... -
Page 20: Back Exhaust Option
Changing from the top vent to back vent onsite can be difficult. For best performance, an 8” round duct must be used for rear-vent installations. Please contact Victory Range Hoods if you have any further questions. | Q5... -
Page 21: Wiring Diagram
The switch has 5 positions: OFF, SPEED 1,2,3,4. LIGHT SWITCH: Rotate the switches clockwise to switch the lights ON. Typical rotary switch The light switch allows you to control the intensity of the light via rotary dimmer. Q5 | 21... -
Page 22: Troubleshooting
• The duct size must be 6”, or larger. Please make sure there are NO reducers or plenums in the duct work. • Refer to DO’S and DON’TS for DUCT VENTING page for illustrative examples. NOTE: For all other inquiries, please contact Victory Range Hoods. | Q5... -
Page 23: Do's And Don'ts For Duct Venting
• DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before proceeding. Q5 | 23... -
Page 24: Maintenance
Dry the filters and re-install before using the hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order replacement filters. Replacing the light bulb: •... -
Page 25: Bulb Replacement
Twist the connector cap off , and dislodge from electrical tether. LED Bulb is model: GU10. Contact Victory Range Hood and place an order, or you may purchase at your nearest hardware store. Q5 | 25... - Page 26 To re-assemble, simply reverse the steps press the bulb housing carefully and fi rmly into the recess, until you hear a positive snap. *Observe all safety precautions before you proceed to turn ON breaker and range hood to test for operation. | Q5...
-
Page 27: Warranty
Victory Range Hoods. The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. Q5 | 27... -
Page 28: Disclaimer
Toll Free: 1-800-394-4020 info@victoryrangehoods.com The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. | Q5... - Page 29 NOTES Q5 | 29...
