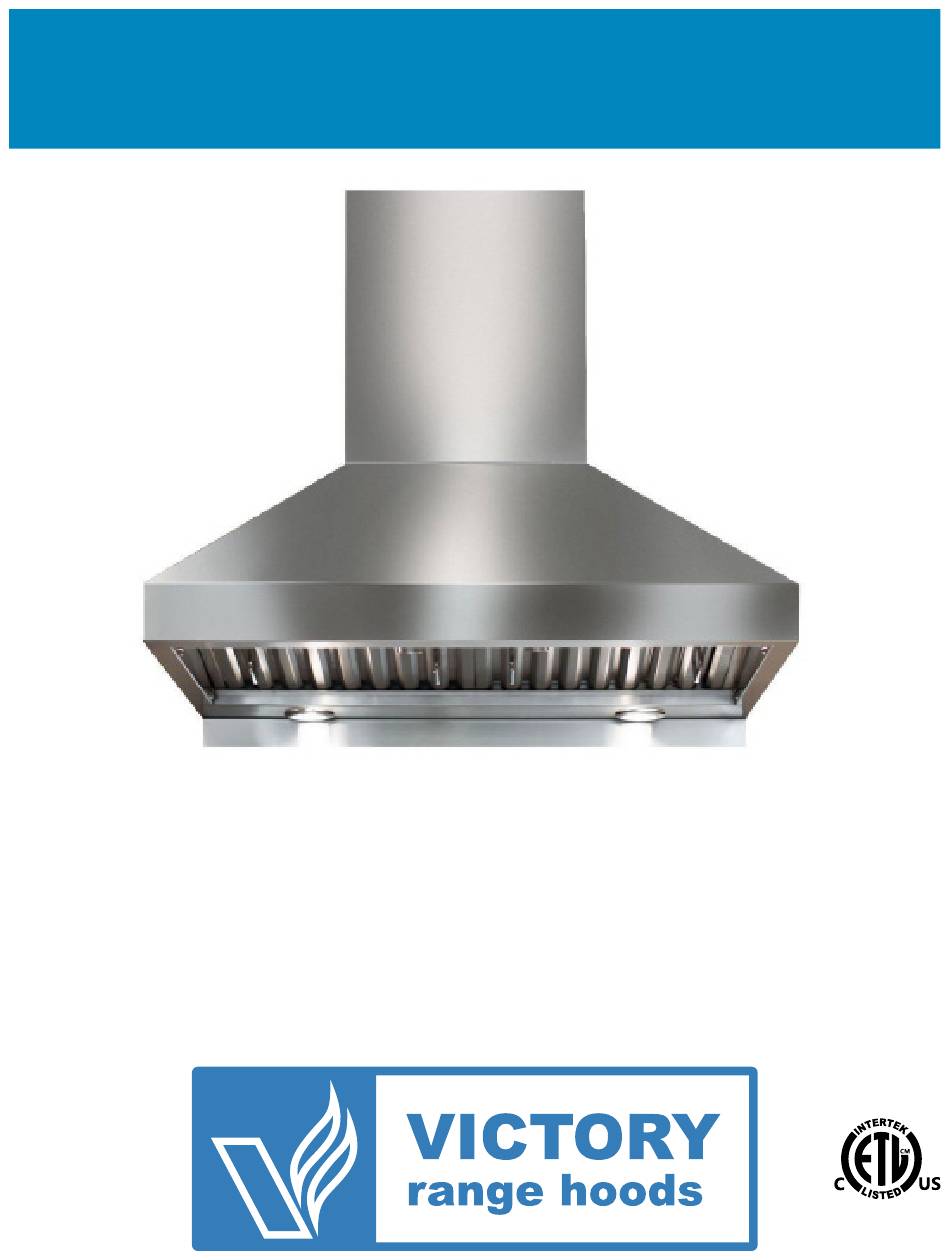

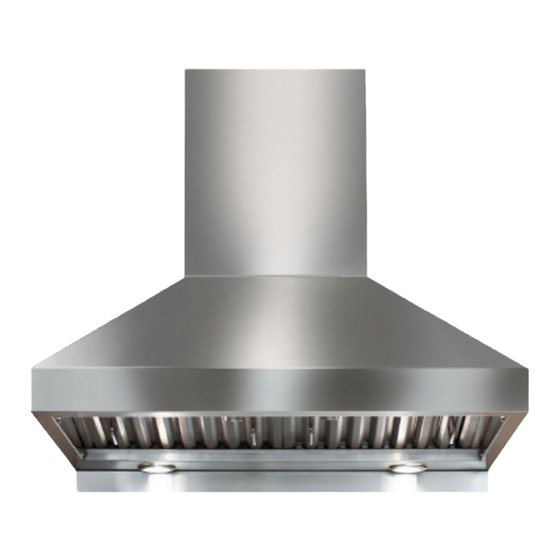

- Page 1 INSTALLATION GUIDE AND USERS MANUAL NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. Professional Wall-Mount Range Hood TWISTER Model Name: Available Sizes: 30”, 36”, 42”, 48” Rev. 3062u.3a...
-
Page 2: Table Of Contents
Venting Methods (front view)............20 Back Exhaust Option................ 21 Wiring Diagram................. 22 Range Hood Operations..............22 Troubleshooting................23 Use and Care Information..............24 Maintenance..................25 Bulb Replacement................26 Warranty..................... 28 Disclaimer..................29 Contact Us..................29 VICTORY range hoods | TWISTER... -
Page 3: Important Safety Notice
Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. VICTORY range hoods TWISTER... - Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. VICTORY range hoods | TWISTER...
-
Page 5: Electrical Requirements
(at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 VICTORY range hoods TWISTER... -
Page 6: Venting Requiremens
If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 6” minimum • Round - 8” recommended/optional * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | TWISTER... -
Page 7: Calculating Duct System Length
4 x 35W or 6 x 35w GU10, 120V Dimmable (LED Optional) Ducting Size Top or Back 6” or 8” Duct Options Warranty 5 YEARS ( parts warranty ) * Subject to change without notice, please contact your local reseller for details. VICTORY range hoods TWISTER... -
Page 8: Required Tools
REQUIRED TOOLS Marker or Pencil Putty Knife Tape Measure Phillips Screwdriver Level Power Drill Aluminum Tape Utility Knife Drywall Knife VICTORY range hoods | TWISTER... -
Page 9: Parts Supplied
PARTS SUPPLIED Screws included to assemble this Range Hood model. NOTE: Where necessary, additional screws will be needed for installation and added support, but is not included. Please review contents before installation. VICTORY range hoods TWISTER... - Page 10 PARTS SUPPLIED (Continued) Mounting Bracket Ø - 8” Transition (Requested option) Upper Chimney Lower Chimney Ø - 6” Transition Grease Tunnel Range Hood Baffle Filters (x2) Filter Handles (x4) VICTORY range hoods | TWISTER...
-
Page 11: Dimensions
DIMENSIONS Ø 8” Ø 6” TOP VIEW Optional 22” Vent Size 1” 12” Mounting Bracket Available Sizes: 29-3/4”, 35-3/4”, 41-3/4”, 47-3/4” 10-1/4” FRONT SIDE 15-3/4” VIEW VIEW 12-1/4” 12” 3” BOTTOM VIEW VICTORY range hoods TWISTER | 11... - Page 12 Optional Vent Size ” 17 ” From 8” Ø - 6” ½ to 30 ” Vent ½ Size ” 3” 12” Available Sizes: 22” ¾ ¾ ¾ ¾ ”, 35 ”, 41 ”, 47 ” VICTORY range hoods | TWISTER...
-
Page 13: Preparation
12” of electrical cord hanging from the ceiling. Do not restore power until wiring is completed. 7. Disconnect power cord, remove the stainless steel baffle filter and grease tunnel. 8. Set aside the stainless steel baffle filters and grease tunnel until the range hood is properly installed. VICTORY range hoods TWISTER | 13... -
Page 14: Pre-Installation
(not included) in to the studs for additional support. NOTE: DO NOT USE threaded drywall anchors to support the hood when mounting the hood on sheetrock. Mounting the hood on wall studs or lumbars is highly recommended. VICTORY range hoods | TWISTER... -
Page 15: Installation
Min Height: 76” from the floor. INSTALLATION (1) Use M4 - 4mm big head screws to fasten on 6”-Ø transition (8”-Ø transition optional) to the opening of the fan motor exit. VICTORY range hoods TWISTER | 15... - Page 16 Before connecting wires, switch power off at service panel and lock service panel to preduct power from being switched on accidentally. VICTORY range hoods | TWISTER...
- Page 17 To avoid scratching the chimney, extend the upper (5) Install both chimneys and tighten screws to secure the lower chimney to the range hood. chimney slowly and carefully to the chimney-mounting bracket and tighten screws. VICTORY range hoods TWISTER | 17...
- Page 18 SIDE VIEW Slide toward and into the recess behind the front of hood while raising the filter at the rear. Lower filter while sliding back until it rests onto Grease Tunnel. VICTORY range hoods | TWISTER...
-
Page 19: Venting Methods (Side View)
30” (alongside joist) 36” Attic Wall Vent typical (optional remote blower) Roof Vent (optional remote blower) Roof Blower (optional) * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods TWISTER | 19... -
Page 20: Venting Methods (Front View)
Power Outlet 120v Motor Min: 26” Max: 30” Power Outlet Min: 76” (30” min for 9’ ceiling) from floor 96” *Max: 108” * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | TWISTER... -
Page 21: Back Exhaust Option
Changing from the top vent to back vent onsite can be difficult. For best performance, an 8” round duct must be used for rear-vent installations. Please contact Victory Range Hoods if you have any further questions. VICTORY range hoods TWISTER | 21... -
Page 22: Wiring Diagram
The switch has 5 positions: OFF, SPEED 1,2,3,4. LIGHT SWITCH: Rotate the switches clockwise to switch the lights ON. The light switch allows you to control the intensity of the light via Typical rotary switch rotary dimmer. VICTORY range hoods | TWISTER... -
Page 23: Troubleshooting
Check if all joints are properly con- nected, sealed, and taped. • Make sure the power is on high speed for heavy cooking. NOTE: For all other inquiries, please contact Victory Range Hoods. VICTORY range hoods TWISTER | 23... -
Page 24: Use And Care Information
DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before proceeding. VICTORY range hoods | TWISTER... -
Page 25: Maintenance
Dry the filters and re-install before using the hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order replacement filters. VICTORY range hoods... -
Page 26: Bulb Replacement
Twist the connector cap off, and dislodge from electrical tether. LED Bulb is model: GU10. Contact Victory Range Hood and place an order, or you may purchase at your nearest hardware store. VICTORY range hoods | TWISTER... - Page 27 *Observe all safety precautions before you proceed to turn ON breaker and range hood to test for operation. VICTORY range hoods TWISTER | 27...
-
Page 28: Warranty
Subject to the conditions and limitations set forth below, Victory Range Hoods will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials. Repaired parts or replace- ment products will be provided by Victory Range Hoods on an exchange basis, and will be either new or refurbished to be functionally equivalent to new. -
Page 29: Disclaimer
Toll Free: 1-800-394-4020 info@kitchenhoods.ca The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods TWISTER | 29... - Page 30 583 Nicola Avenue | Port Coquitlam | BC | Canada | V3B 0M3 www.kitchenhoods.ca...
