Page 1: Range Hood

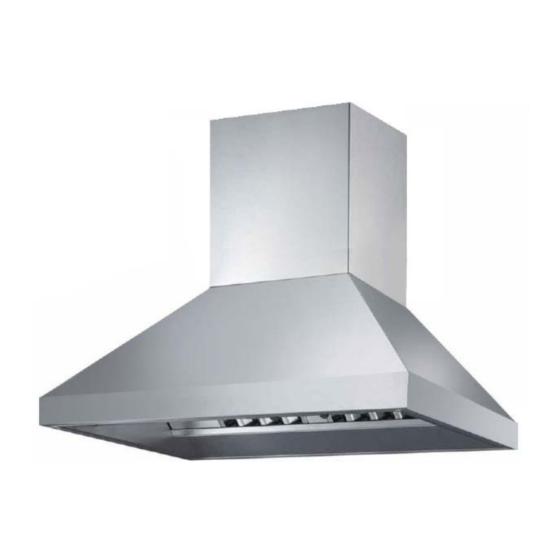

Installation Guide and Users Manual VICTORY RANGE HOOD Model: Twister MAX available sizes 306”, 42”, 48” and 54” IMPORTANT: This range hood is for residential use only Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Rev. -
Page 2: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. -
Page 3: Table Of Contents
Important Safety Notice Table of Contents Read all Instructions before Installing and operating this appliance INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........17 • Clean ventilating fan frequently. Parts supplied...........4 Use and care information.......18 • Always use appropriate cookware and utensils size. Venting requirements........5 Specifications..........18 •... -
Page 4: Parts Supplied
Parts supplied: Venting Requirements Height & Clearance Professional Range Hood : TWISTER MAX • Vent system must terminate to the outside (roof Mounting or side wall). Bracket • DO NOT terminate the vent system in an attic Standard or other enclosed area. -
Page 5: Venting Methods
Venting Methods IMPORTANT: • A minimum of 6” round duct (purchased separately) must be used to maintain maximum airflow efficiency. • This range hood is factory set for venting through the roof or wall. Also comes with available back exhaust. •... -
Page 6: Preparation
Electrical Requirements Preparation WARNING IMPORTANT: Observe all governing codes and ordinances. Excessive Weight Require three or more person to move and install this range hood. Spinal or other bodi- It is the customer’s responsibility: ly injuries could occur if it is not followed. To contact a qualified electrical installer. -
Page 7: Installation
Installation Installation (Continued) WARNING Installations (refer to Page 4 for parts): 7. Connect the range hood to a designated standard outlet (please Measure the distance between stove top and the bottom of Excessive Weight refer the product label for the suitable voltage of this unit) range hood. -
Page 8: Range Hood Operations
Range Hood Operations Measurements and Diagrams This range hood is equipped with 2 rotary switches. Left switch control the blower, right switch controls Installation Overview: the lights. BLOWER SWITCH: Rotate the switches clockwise to switch the blower ON. The switch has 5 positions , OFF, SPEED 1,2,3,4. -
Page 9: Troubleshooting
Measurements and Diagrams Troubleshooting (Continued) TWISTER MAX DIMMENSIONS 1. If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 10: Use And Care Information
Use and Care Information Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! Operations: For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular • Read and understand all instructions and warnings in this manual before operating the appliance. Save these care will help preserve the appearance of the range hood. - Page 11 Warranty Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or TO OBTAIN SERVICE UNDER WARRANTY: express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival.
- Page 12 Professional Range Hood VICTORY Model: TWISTER MAX Burnaby BC Canada www.KitchenHoods.ca...
