ATC-3000 TCP/IP to RS232/422/485 Converter

Appendix A: How to make a virtual serial port

I
nsert the software CD and you will find a file named vcom.rar , then open this file to setup the vcom software.
If you install the software correctly ,and then double-click the shortcut of this software
appear like Figure A.1.
Click on the Virtual COM tab and choose Add you will see the interface show in Figure A.2.
You can change some parameter in this interface to establish a virtual serial port.
Ø
Work Mode: you can select TCP server, TCP client or UDP mode. But here we choose TCP client as a
example.
Ø
COM Port: you can select a serial port number which you want to mapping. This port NUM. must not in
use. We select COM2 here.
Ø
Local Host and Local Port: keep default set.
Ø
Remote Host: input the IP address of the device which you want to mapping. The IP address of the device
we use in the test is 192.168.0.251.
Ø
Remote Port: input the port number of the device which you want to mapping. The port number of the
device we use in the test is
Ø
Other parameter: keep them in default set.
If the work above is finished, click on OK. Then the interface like Figure A.3 will appear in front of you.

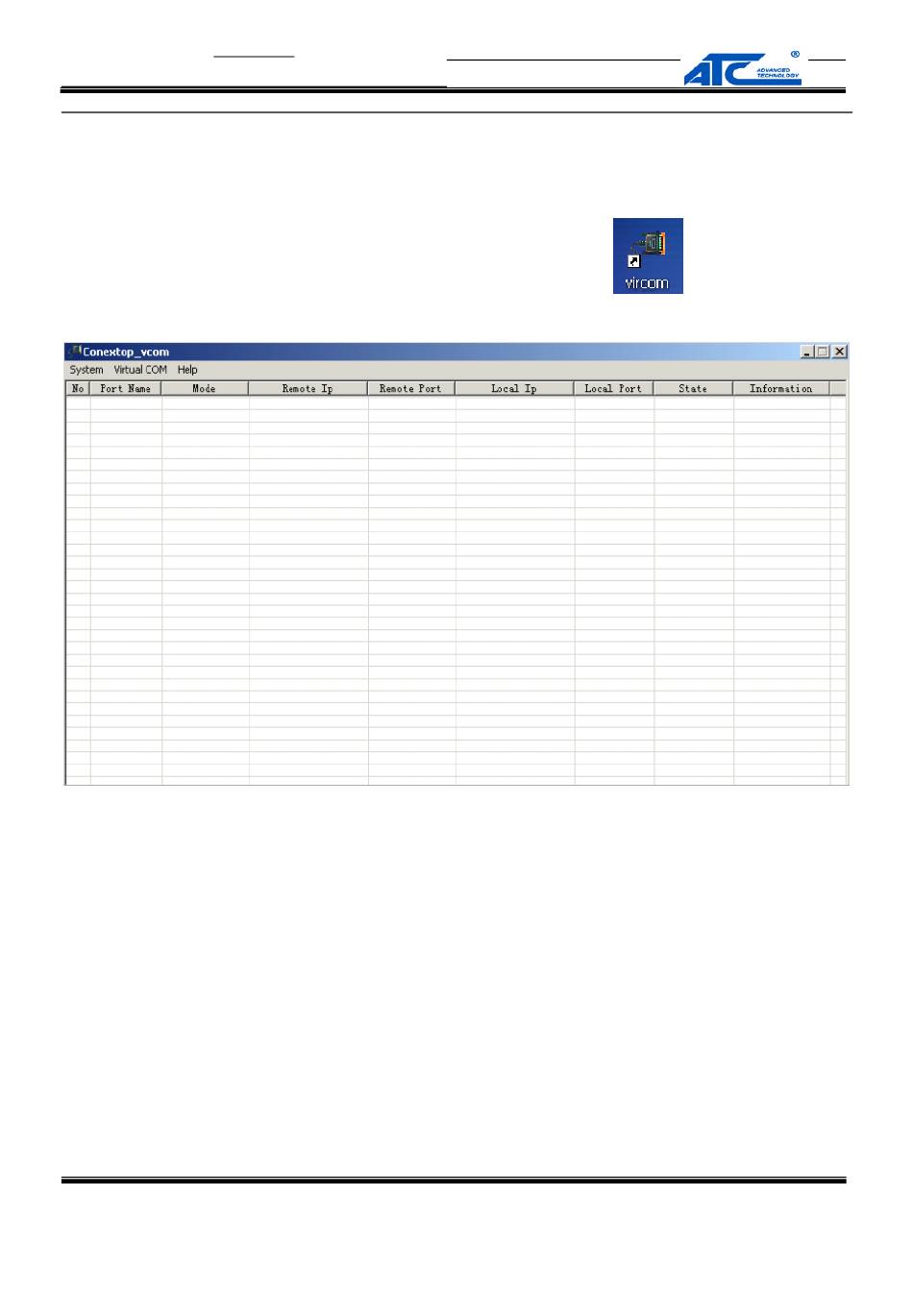

Figure A. 1
27010.
