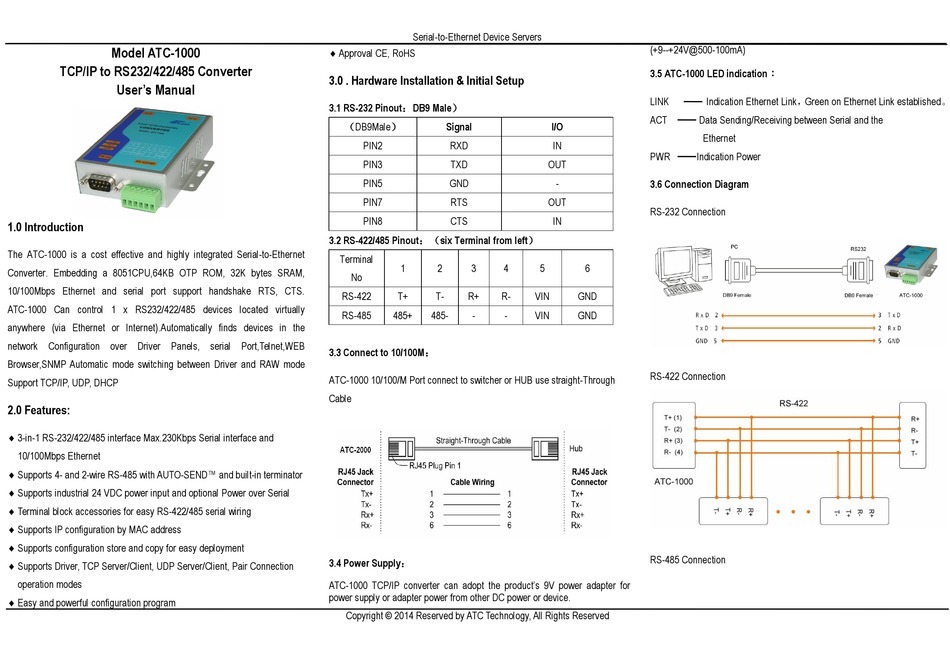

Model ATC-1000
TCP/IP to RS232/422/485 Converter
User's Manual
1.0 Introduction

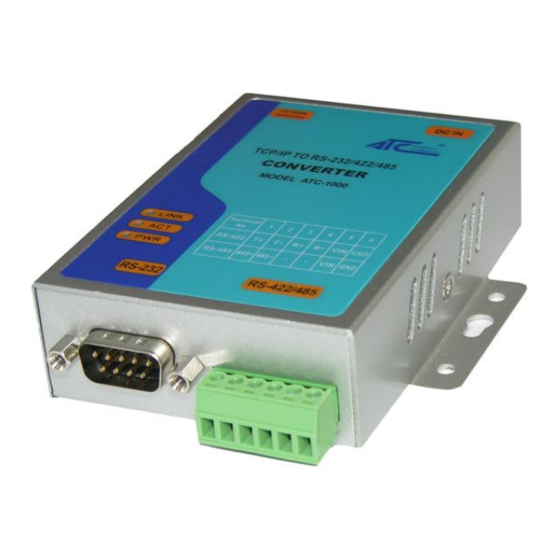

The ATC-1000 is a cost effective and highly integrated Serial-to-Ethernet
Converter. Embedding a 8051CPU,64KB OTP ROM, 32K bytes SRAM,
10/100Mbps Ethernet and serial port support handshake RTS, CTS.
ATC-1000 Can control 1 x RS232/422/485 devices located virtually
anywhere (via Ethernet or Internet).Automatically finds devices in the
network Configuration over Driver Panels, serial Port,Telnet,WEB
Browser,SNMP Automatic mode switching between Driver and RAW mode
Support TCP/IP, UDP, DHCP
2.0 Features:
 3-in-1 RS-232/422/485 interface Max.230Kbps Serial interface and
10/100Mbps Ethernet
 Supports 4- and 2-wire RS-485 with AUTO-SEND™ and built-in terminator
 Supports industrial 24 VDC power input and optional Power over Serial
 Terminal block accessories for easy RS-422/485 serial wiring
 Supports IP configuration by MAC address
 Supports configuration store and copy for easy deployment
 Supports Driver, TCP Server/Client, UDP Server/Client, Pair Connection
operation modes
 Easy and powerful configuration program
Serial-to-Ethernet Device Servers
 Approval CE, RoHS
3.0 . Hardware Installation & Initial Setup
3.1 RS-232 Pinout:DB9 Male)
Signal
(DB9Male)
PIN2
RXD
PIN3
TXD
PIN5
GND
PIN7
RTS
PIN8
CTS
3.2 RS-422/485 Pinout:(six Terminal from left)
Terminal
1
2
3
4
No
RS-422
T+
T-
R+
R-
RS-485
485+
485-
-
-
3.3 Connect to 10/100M:
ATC-1000 10/100/M Port connect to switcher or HUB use straight-Through
Cable
3.4 Power Supply:
ATC-1000 TCP/IP converter can adopt the product's 9V power adapter for
power supply or adapter power from other DC power or device.
Copyright © 2014 Reserved by ATC Technology, All Rights Reserved
(+9--+24V@500-100mA)
3.5 ATC-1000 LED indication:
LINK
Indication Ethernet Link, Green on Ethernet Link established。
ACT
Data Sending/Receiving between Serial and the
I/O
Ethernet
IN
PWR
Indication Power
OUT
-
3.6 Connection Diagram
OUT
RS-232 Connection
IN
5
6
VIN
GND
VIN
GND
RS-422 Connection
RS-485 Connection
