User Manual
ATC-3000 TCP/IP to RS232/422/485 Converter

3.2.1 Log in to the System

1. From web browser, type in the IP address of ATC-3000 in the URL. Example:
The following authentication screen appears.(Figure 3.12) Please type in user name and password then click on
OK. The user name is admin and password is left it blank by default.
2. The following home page appears.( Figure 3.13)

3.2.2 Network setting

Click on the "Network" link and the following screen appears. In this page you can configuration the IP
information. Figure3.14.

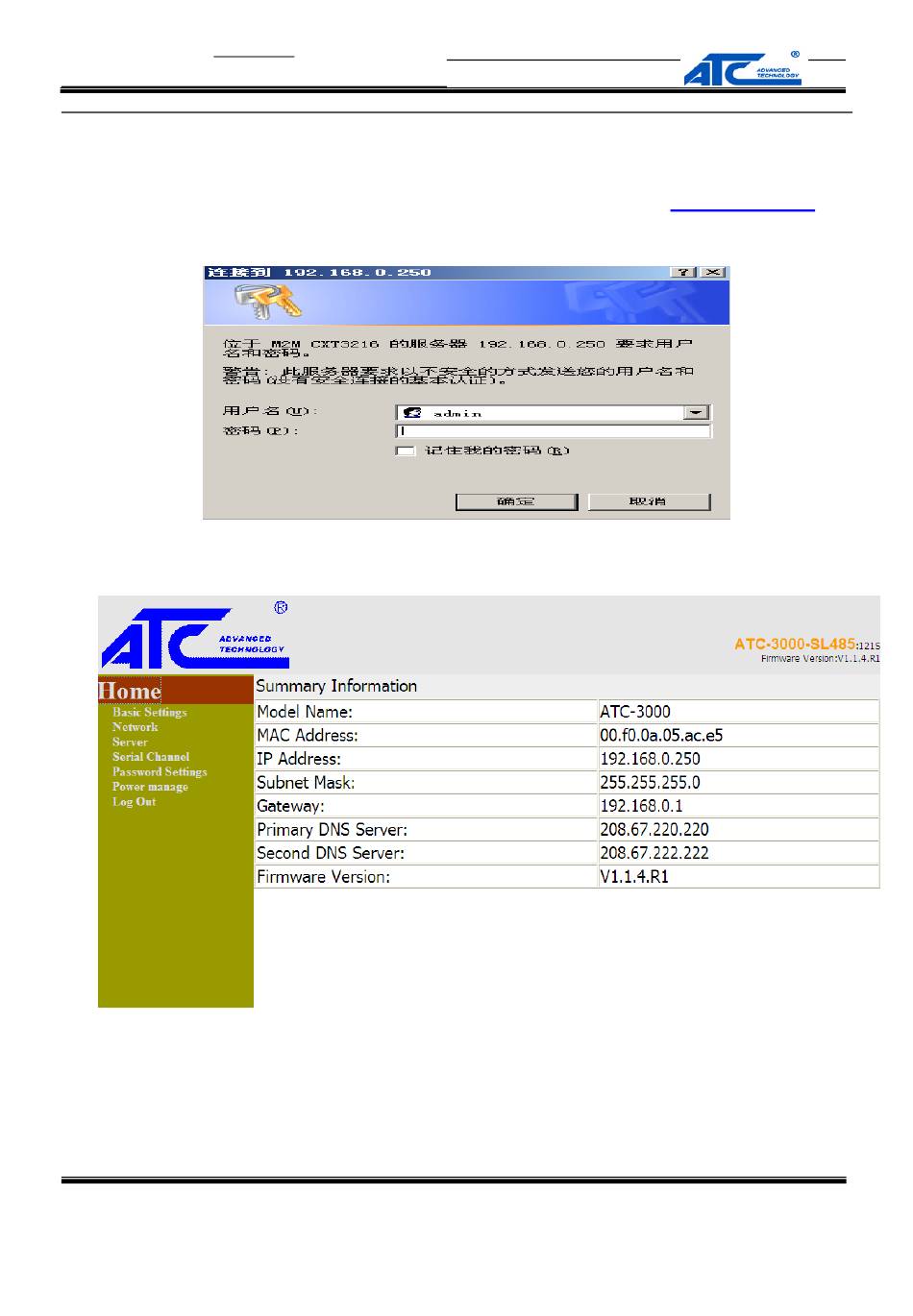

Figure 3. 12 login the system via Web
Figure3. 13 Home page
Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.
10
http://192.168.0.250
