ATC-3000 TCP/IP to RS232/422/485 Converter

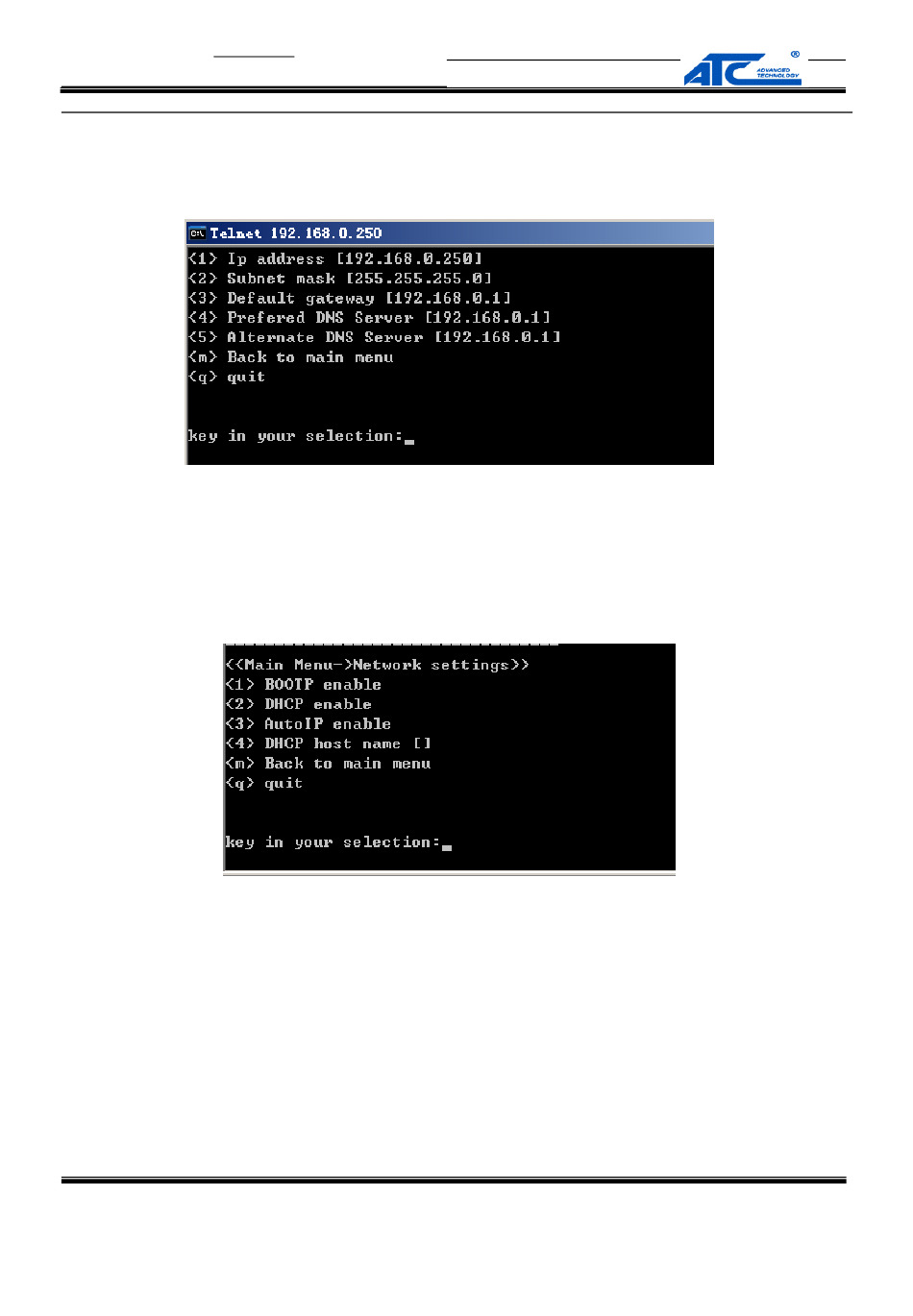

Figure3. 8 Static IP setting page
In this page you can change the static IP address, subnet mask, default gateway and some other parameters.
3.1.3.2 Auto IP setting
Select "2" from "Input choice and enter (1~9 or m q):" to enter show Static IP setting page as following.
( Figure 3.9)
Figure3. 9 Auto IP setting page
3.1.3.3 Ethernet configuration
Select the No. between 3 and 8 from "Input choice and enter (1~9 or m q):" to enter show Ethernet
configuration page.
3.1.4 Hostlist 0 Settings
Select "4" from "Input choice and enter (1~7 or v s q):" to enter show Hostlist 0 setting page as following.
( Figure 3.10)
