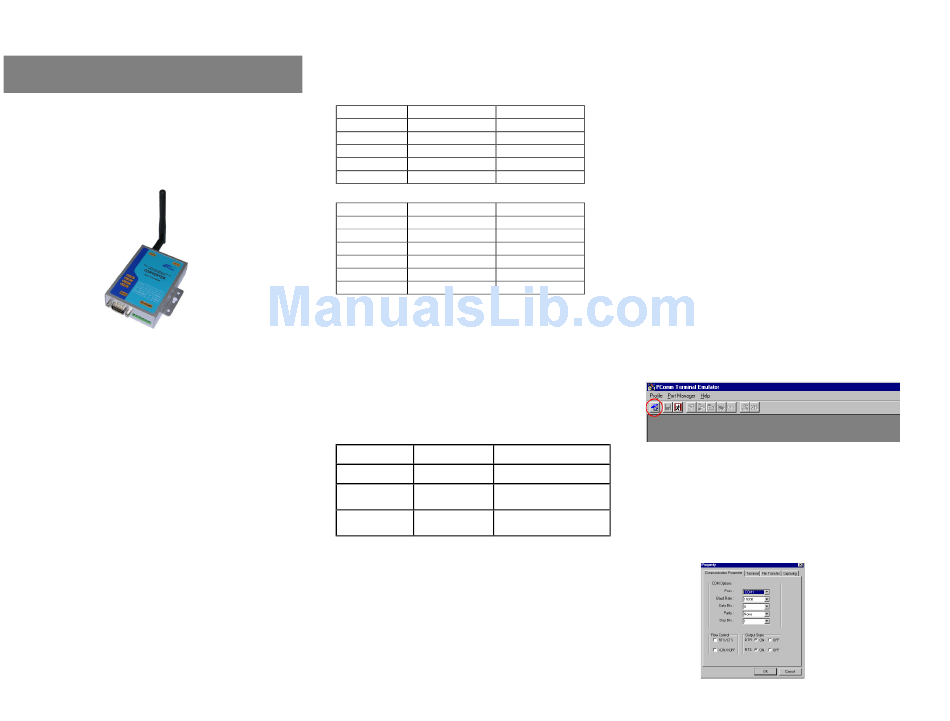

ATC -2000WF Quick Start Manual

Wi-fi to rs-232/422/485

Advertisement

Quick Links

Quick Start Guide
Wi-Fi TO RS-232/422/485
CONVERTER
MODEL ATC-2000WF
(Version 2.0)
1
1
1
.
Check Package Content
■ATC-2000WF unit
■RS-232 DB9 Female Crossing configuration cable
■monopole Antenna (2dBi RP-SMA)
■Software CD
■Ext power adapter
■Printed version of this ATC-2000WF Quick Start Guide
2
2
.Hardware Installation
■Connect RS-232 DB9 Female Crossing configuration cable
to ATC-2000WF unit on RS-232 side.
■Connecting the Power Adapter to ATC-2000WF power jack.
When the power is properly supplied. The Link LED will
contious to flash and PWR LED will light in red when system
is ready.
RS-232/422/485 Pinouts
RS-232 Pinout(DB9 Female )
PIN
2
3
5
7
8
RS-422/485 Pinout(SIX Terminal from Left)
PIN
1
2
3
4
5
6
3
3
. LED indication
LINK ---- Indicate WLAN status
DIS ---- Indicate WLAN status
ACT ---- It will flash when transmit the data from WLAN to
1Pcs
serial or from serial to WLAN.
PWR ---- Indicate the Power supply
1Pcs
Detail for LINK,DIS Led indicate
1Pcs
LINK
1Pcs
ON solid
1Pcs
Fast Blink
1Pcs
Slow Blink
4
4
.Software Installation
I
nsert the software CD and search for such as F:/Tool/
pcommlite folder to run Settup.exe.Note: Be sure you have
administrative rights &disable firewalls in windows XP
RS-232
Input/Output
RXD
I
TXD
O
GND
-
RTS
O
CTS
I
RS-422
RS-485
T+
485+
T-
485-
R+
NC
R-
NC
VIN+
VIN+
VIN-
VIN+
DIS
Status
Not Associated
Connected over TCP
No IP Address(enter
-
Command mode)
Associated,
IP Address OK
No Internet
5 .
5
Configure the ATC-2000WF
■Serial Console (9600, n, 8, 1)
Before configuring the ATC-2000WF via the serial console,
turn off the power and use a serial cable to connect the
ATC-2000WF to your computer's serial port. We suggest
using PComm Terminal Emulator, which is available in CD
driver to carry out the configuration procedure. Firstly install
PComm Terminal Emulator on your computer.
■Connect ATC-2000WF RS-232 serial port directly to your
computer's male RS-232 serial Port with RS-232 DB9 Female
Cross Configuration cable
■ From the Windows desktop, click on Start # Programs #
PComm Lite # Terminal Emulator.
■ When the PComm Terminal Emulator window opens,
first click on the Port Manager menu item and select Open,
or click on the Open icon.
■The Property window opens automatically. From the
Communication Parameter page,
select the appropriate COM port for the connection, COM1 in
this example, and 9600 for
Baud Rate, 8 for Data Bits, None for Parity, and 1 for Stop
Bits.
