ATC-3000 TCP/IP to RS232/422/485 Converter

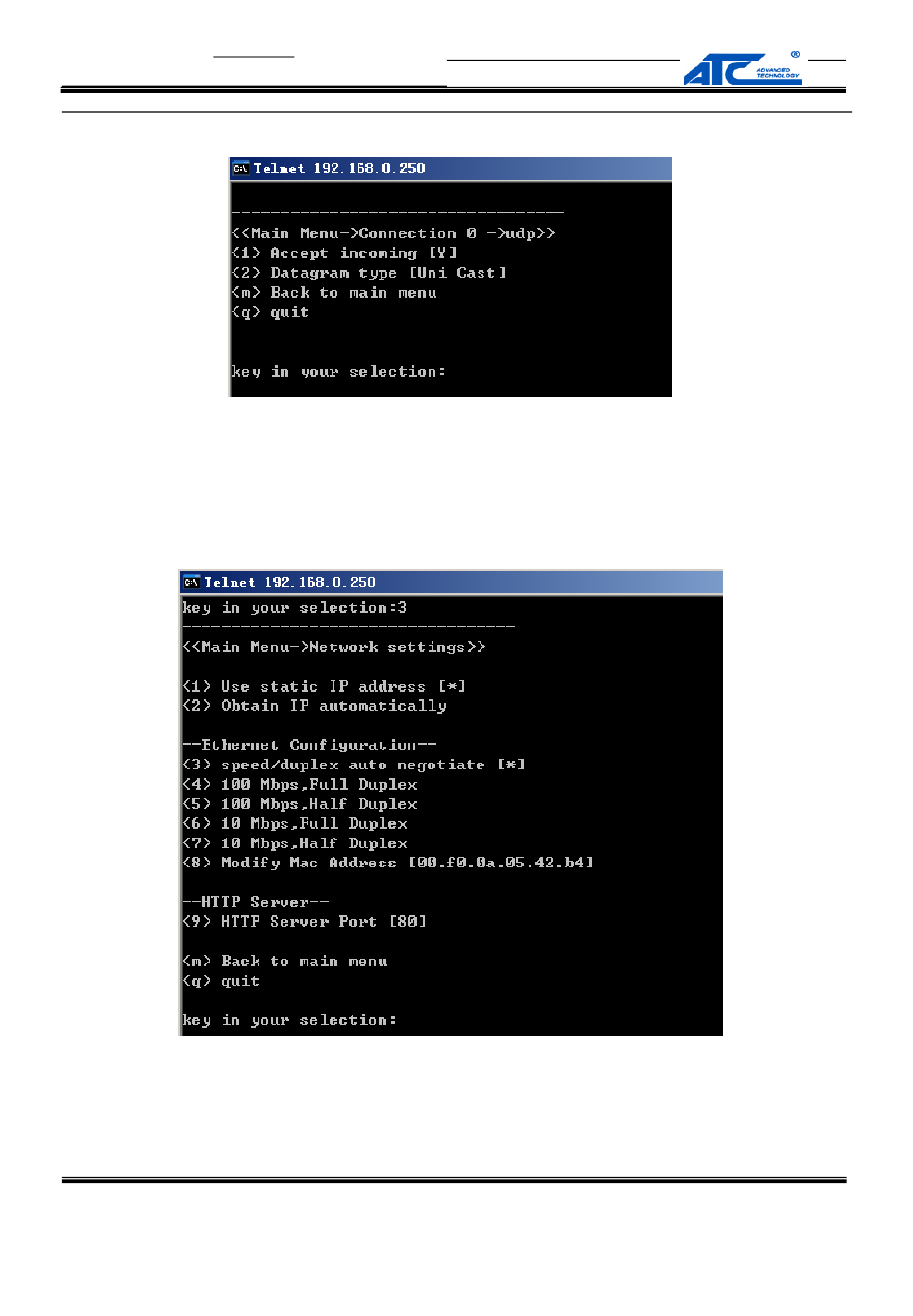

Figure3. 6 Udp configuration page

3.1.3 Network Settings

Select "3" from "Input choice and enter (1~7 or v s q):" to enter show Network setting page as following.
( Figure 3.7)
Figure3. 7 Network settings page
3.1.3.1 Static IP setting
Select "1" from "Input choice and enter (1~9 or m q):" to enter show Static IP setting page as following.
( Figure 3.8)
