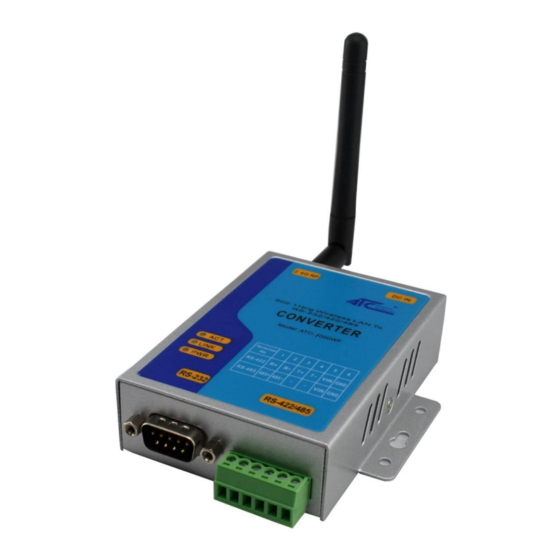

ATC -1000WF Quick Start Manual

Quick Start Guide
Wi-Fi TO RS-232/422/485
CONVERTER
MODEL ATC-1000WF
(Version 2.1 Jan 25th, 2022)
1 1 1
.
Check Package Content
■ATC-1000WF unit
■Mono pole Antenna (2dBi RP-SMA)
■Software CD
■External power adapter
■RS-232 cross cable
■Quick Start Guide_Ver 2.1
2
2
. Hardware Installation
■Connect RS-232 DB9 Female Crossing configuration cable
to ATC-1000WF unit on RS-232 side.
■Connecting the Power Adapter to ATC-1000WF power jack.
When the power is properly supplied. The Ready LED will on
Green light and PWR LED will light in red.
RS-232/422/485 Pinout
RS-232 Pinout(DB9 Male )
PIN
2
3
5
RS-422/485 Pinout(6Bit-Block Terminal from left)
PIN
1
2
3
4
5
6
3
3
. LED indication&Factory default button
LINK ---- Indicate WLAN status.Light means ATC-1000WF
(STA mode) collected to AP or laptop &mobile
connect to ATC-1000WF(AP mode)
Ready ---- It show light when ATC-1000WF boot up ready.
Tx/Rx ---- It show data send or receive from serial port.
1Pcs
PWR ---- Indicate the Power supply
1Pcs
Factory Default- To restore ATC-1000WF to factory default.
1Pcs
1Pcs
1Pcs
1Pcs

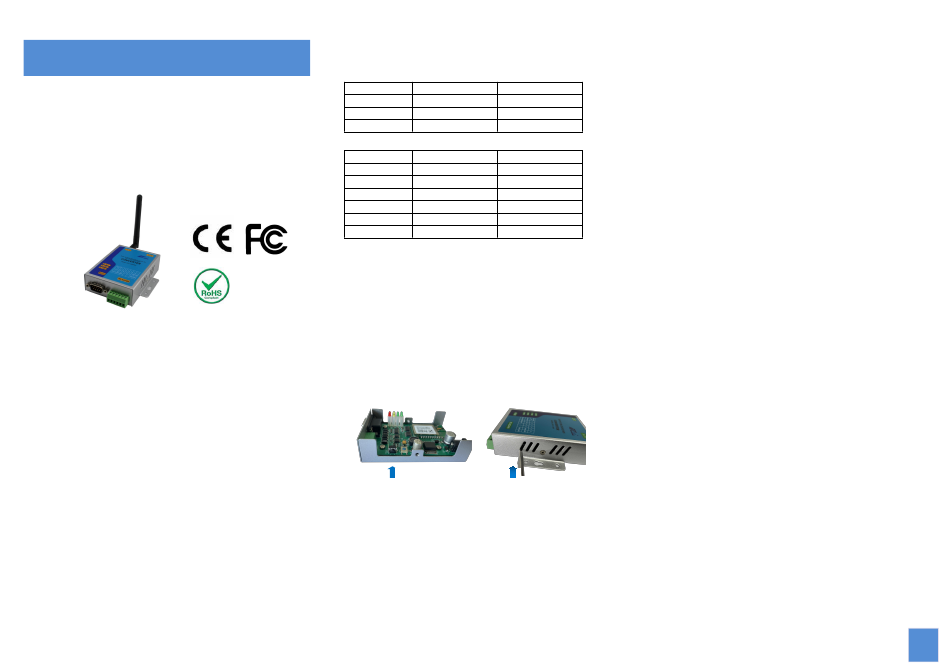

Factory Default Button
Step1:Power on ATC-1200 and find the button above photo.
Step2:Press button near the terminal block wait about 5
seconds
Step3:Release the button and ATC-1000WF will be automatic
to restart from factory default setting.
4
4
.Software Installation
RS-232 Input/Output
RXD I
TXD O
GND -
RS-422 RS-485
T+ 485+
T- 485-
R+ -
R- -
VIN+ VIN+
VIN- VIN+
I
nsert the software CD and search for such as
■
F:/Tool/Tera-Term to install.Note: Be sure you have
administrative rights &disable firewalls in windows XP
5 .
5
Configure the ATC-1000WF
■ATC-1000WF supports two methods to configuration
parameters:Web Accessing and AT+instruction set.
Web accessing means users can configure parameters
through Web browser. When ATC-1000WF connected to
wireless network. Parameters configuration is done on a PC
connected to the same wireless network.
AT+instruction set configuration means user configure
parameters through serial interface(RS-232/422/485)
command.Refer to ATC-1000WF User's Manual.
"AT+instruction set"chapter for more detail.
Before configuring the ATC-1000WF on AT+instruction mode,
you should turn off the power and use a serial cable connect
the ATC-1000WF to your computer's serial port(RS-232).
■We suggest using Tera-Term to operate.Firstly you should
configure Tera-Term serial port like below:57600bps for baud
rate ,8bits for data-length,NONE for parity bit ,1bit for stop bits .
■Upon power up.The ATC-1000WF will be in AP mode from
factory producing. To enter command mode, you should send
""+++<CR>". The device will respond with "a ".Then input "a"
While it change to command mode.It also show"+OK" and the
ATC-1000WF will accept ASCII bytes as command. You can
using"AT+H" for all the command you need . To exit command
Mode and reset.Please send "AT+Z".The device will respond
with "OK" restart and return AP mode.
The parameters such as the SSID, channel, IP address, serial
port settings, And all other settings can be viewed and
configured in command mode.
