ATC -3000 User Manual

Tcp/ip to rs232/422/485 converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

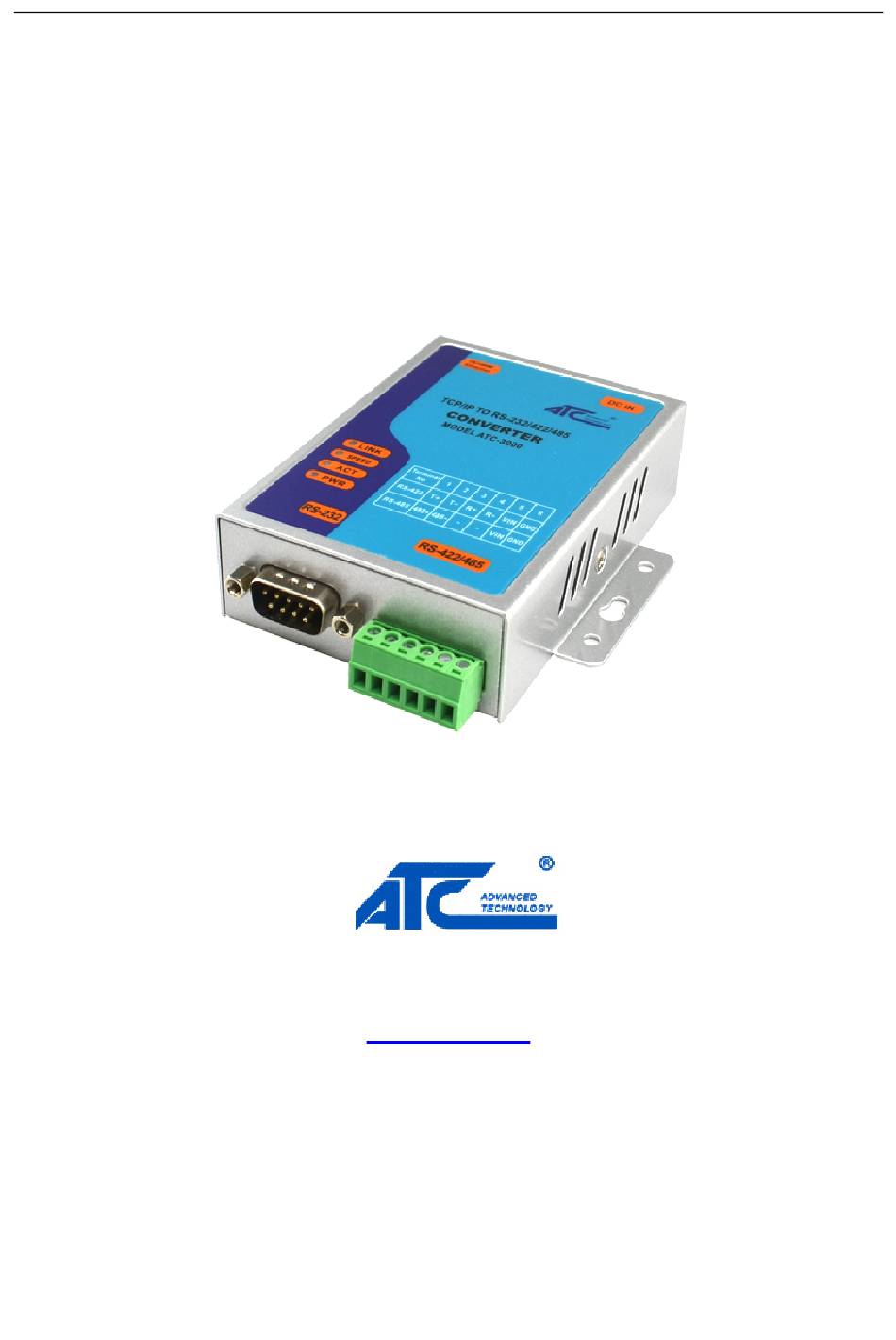

Model ATC-3000
TCP/IP to RS232/422/485 Converter
User's Manual
Updated on 2015/01/15
Tel: +86 755‐8345‐3318
Fax:+86 755‐2899‐8985
http://www.szatc.com
Updated on 2015/01/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATC-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for ATC ATC-3000

Summary of Contents for ATC ATC-3000

  • Page 1 Model ATC-3000 TCP/IP to RS232/422/485 Converter User’s Manual Updated on 2015/01/15 Tel: +86 755‐8345‐3318 Fax:+86 755‐2899‐8985 http://www.szatc.com Updated on 2015/01/15...

  • Page 2: Important Announcement

    CO.,LTD. No part of this publication is to be used for any other purposes, and it is not to be reproduced, copied, disclosed, transmitted, stored in a retrieval system, or translated into any human or computer language, in any form, by any means, in whole or in part, without the prior express written consent of SHENZHEN ATC TECHNOLOGY CO.,LTD.

  • Page 3: Table Of Contents

    Contents Important Announcement......................2 Published by ..........................2 Contents............................I 1 Introduction..........................1 2 Hardware Setup ........................2 2.1 LED Indicators..............................2 2.1.1 LINK LED ............................2 2.1.2 ACT LED............................2 2.1.3 SPEED LED ............................3 2.1.4 PWR LED............................3 2.2 Installation Procedures..........................3 3 Software Setup......................... 4 3.1 Configuration by Telnet ..........................4 3.1.1 Login to the System ...........................4 3.1.2 Connection 0 setting ..........................5...

  • Page 4: Introduction

    RS-422 are limited in their transmission distance of 15 m. Examples of these devices are PLC controllers, card readers, display signs, security controls, CNC controller, etc. The ATC-3000 is designed to transmit data between serial device and TCP/IP device through Ethernet, and hence enhance the accessibility of the serial device through the ubiquitous TCP/IP based Ethernet.

  • Page 5: Hardware Setup

    Table 1. LINK LED Message 2.1.2 ACT LED Message Description No data is transmitting between Ethernet and serial port Data is transmitting between Ethernet and Blinking serial port Table 2. ACT LED Message Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.

  • Page 6: Speed Led

    Step 1: Connect ATC-3000 to power source using 9~24V DC Jack. Step 2: Connect ATC-3000 to you PC or other device by Ethernet cable.You can use a standard straight-through Ethernet cable connect it to a hub/switch, or connect it to PC‘s Ethernet port via a cross-over Ethernet cable.

  • Page 7: Software Setup

    (Figure 3.1) Figure3. 1 Login to the system Note: One can press the default button of ATC-3000 to reset the password to the default value. After verifying the password, the following terminal screen appears.( Figure 3.2)

  • Page 8: Connection 0 Setting

    ATC-3000 TCP/IP to RS232/422/485 Converter Figure3. 2 Main menu Note: Changes to networking parameters will take effect only when one save and reboot ATC-3000. Select “1” from “Input choice and enter (1~7 or v s q):” to enter show basic settings page as following.( Figure 3.3)
  • Page 9 ( Figure3.4) Figure3. 4 Connection 0 setting In this page you can change the network mode of ATC-3000.And then you can configuration the parameters of the mode which you choice. Figure 3.5 and figure 3.6 show the configuration page. Figure 3. 5 Tcp configuration page...

  • Page 10: Network Settings

    Figure3. 7 Network settings page 3.1.3.1 Static IP setting Select “1” from “Input choice and enter (1~9 or m q):” to enter show Static IP setting page as following. ( Figure 3.8) Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.
  • Page 11 Select the No. between 3 and 8 from “Input choice and enter (1~9 or m q):” to enter show Ethernet configuration page. 3.1.4 Hostlist 0 Settings Select “4” from “Input choice and enter (1~7 or v s q):” to enter show Hostlist 0 setting page as following. ( Figure 3.10) Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.

  • Page 12: Configuration Using Web Browser

    3.2 Configuration Using Web Browser Make sure one PC is located on the same network sub-net as ATC-3000 Open a web browser, then type in the IP address of ATC-3000 to be configured. Default user name is admin and default password is admin.

  • Page 13: Log In To The System

    ATC-3000 TCP/IP to RS232/422/485 Converter 3.2.1 Log in to the System From web browser, type in the IP address of ATC-3000 in the URL. Example: http://192.168.0.250 The following authentication screen appears.(Figure 3.12) Please type in user name and password then click on OK.
  • Page 14 User Manual ATC-3000 TCP/IP to RS232/422/485 Converter Figure3. 14 Network setting page Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.

  • Page 15: Hostlist Setting

    Click on the “serial tunnel 1” link and then click on the “hostlist” link you will see the figure 3.15 below. Figure3. 15 Hostlist setting page 3.2.4 Hostlist setting Click on the “Channel 1” link and then click on the “serial settings” link you will see the figure 3.16 below. Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.
  • Page 16 User Manual ATC-3000 TCP/IP to RS232/422/485 Converter Figure3. 16 Serial setting page Click on the “Channel 1” link and then click on the “connection” link you will see the figure 3.17 below. Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.

  • Page 17: Change Password

    In these pages you can configuration some parameters about the serial port and network mode. 3.2.5 Change Password click on the “Password setting” link. And then the page If you want to change the login Password you should like Figure3.18 you will see. Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.
  • Page 18 User Manual ATC-3000 TCP/IP to RS232/422/485 Converter Figure 3. 18 Password Setting Page Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.

  • Page 19: Diagnostics

    From Windows start menu, select Run and type in “ping <TCP Server IP address>”. If the connection is established, the Reply messages are displayed, otherwise it will indicate Request timed out (Figure 4.1). Figure4. 1 Standard TCP/IP utility ping command Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.

  • Page 20: Appendix A: How To Make A Virtual Serial Port

    27010. Ø Other parameter: keep them in default set. If the work above is finished, click on OK. Then the interface like Figure A.3 will appear in front of you. Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.
  • Page 21 User Manual ATC-3000 TCP/IP to RS232/422/485 Converter Figure A. 2 Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.
  • Page 22 User Manual ATC-3000 TCP/IP to RS232/422/485 Converter Figure A. 3 Copyright © 2014 SHENZHEN ATC TECHNOLOGY CO., LTD.
